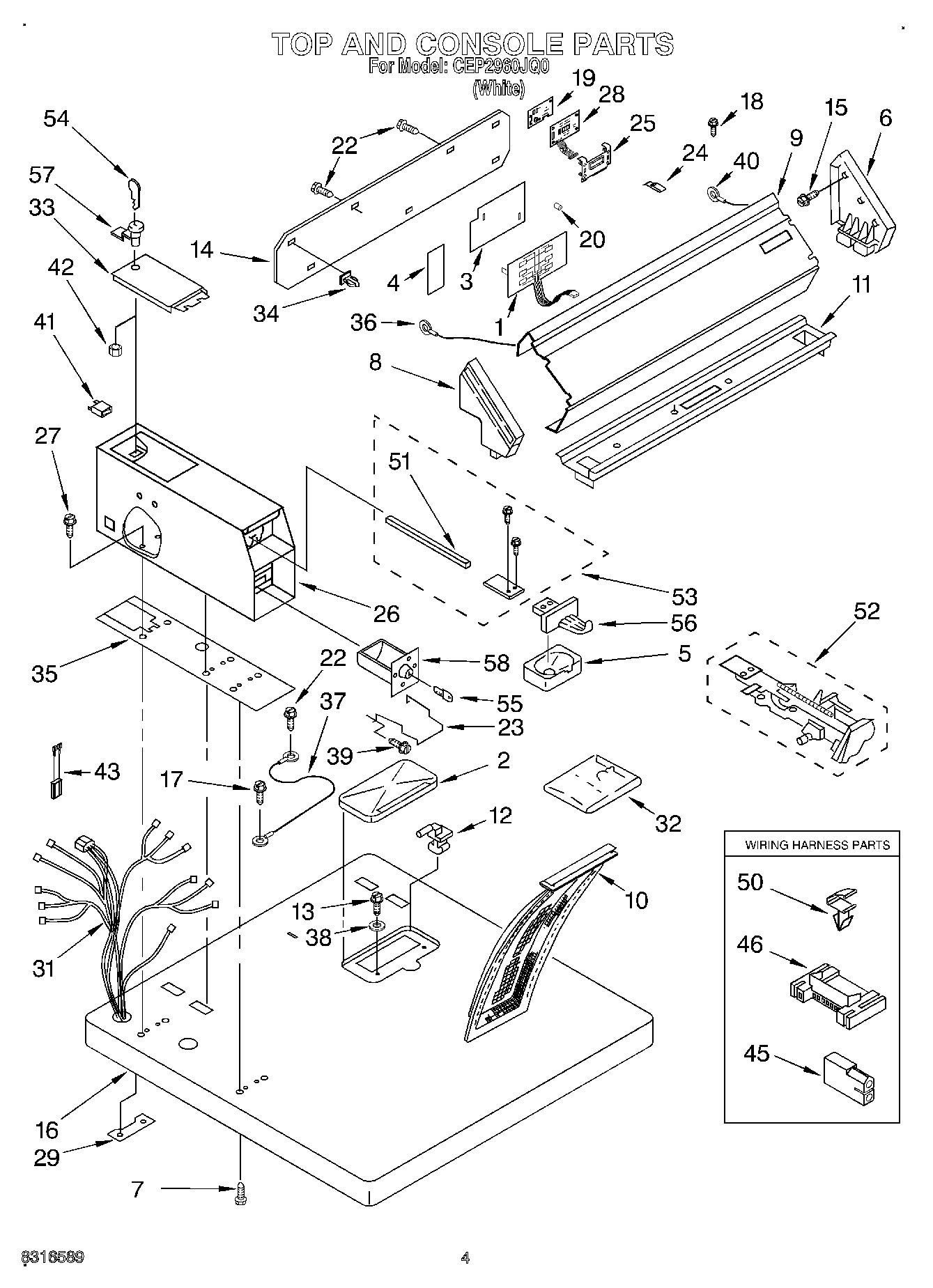

CEP2960JQ0 03 – TOP AND CONSOLE

Products

Position	Product
1	Switch, Membrane
2	Cover, Lint Screen (White)
3	Backer Plate
4	Backer Plate, Side (2)
5	WP385421 Whirlpool Coin Operated Laundry Funnel
6	Cap, End (R.H.)
7	W10841059 Whirlpool Screw
8	End Cap (L.H.)
9	Panel, Control
10	WP349639 Whirlpool Lint Filter
11	Bracket, Control
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Panel, Rear
15	WPW10109200 Whirlpool Screw
16	Top
17	WP90767 Whirlpool Screw
18	WPW10366705 Whirlpool Screw
19	Control Board
20	Cap, Stud
22	SCREW
23	Guide, Drawer
24	Clip (2)
25	Lens, Display
26	Case, Meter
27	W11715721 Whirlpool Screw Assembly
28	Board, Display
29	3347825 Whirlpool Plate
31	Harness, Wiring
32	279950 Whirlpool Funnel
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	WP689559 Whirlpool Nut
35	WP3954812 Whirlpool Cushion
36	Wire, Ground
37	Wire, Ground
38	Washer
39	339805 Whirlpool Screw
40	Wire, Ground
41	Switch, Service Diagnostic
42	WP90406 Whirlpool Nut
43	A.C. Line Filter
45	Receptacle, Latching (2-Way) (Uses Terminal 94614)
46	3395683 Whirlpool Connector
50	WP3394427 Whirlpool Clip
