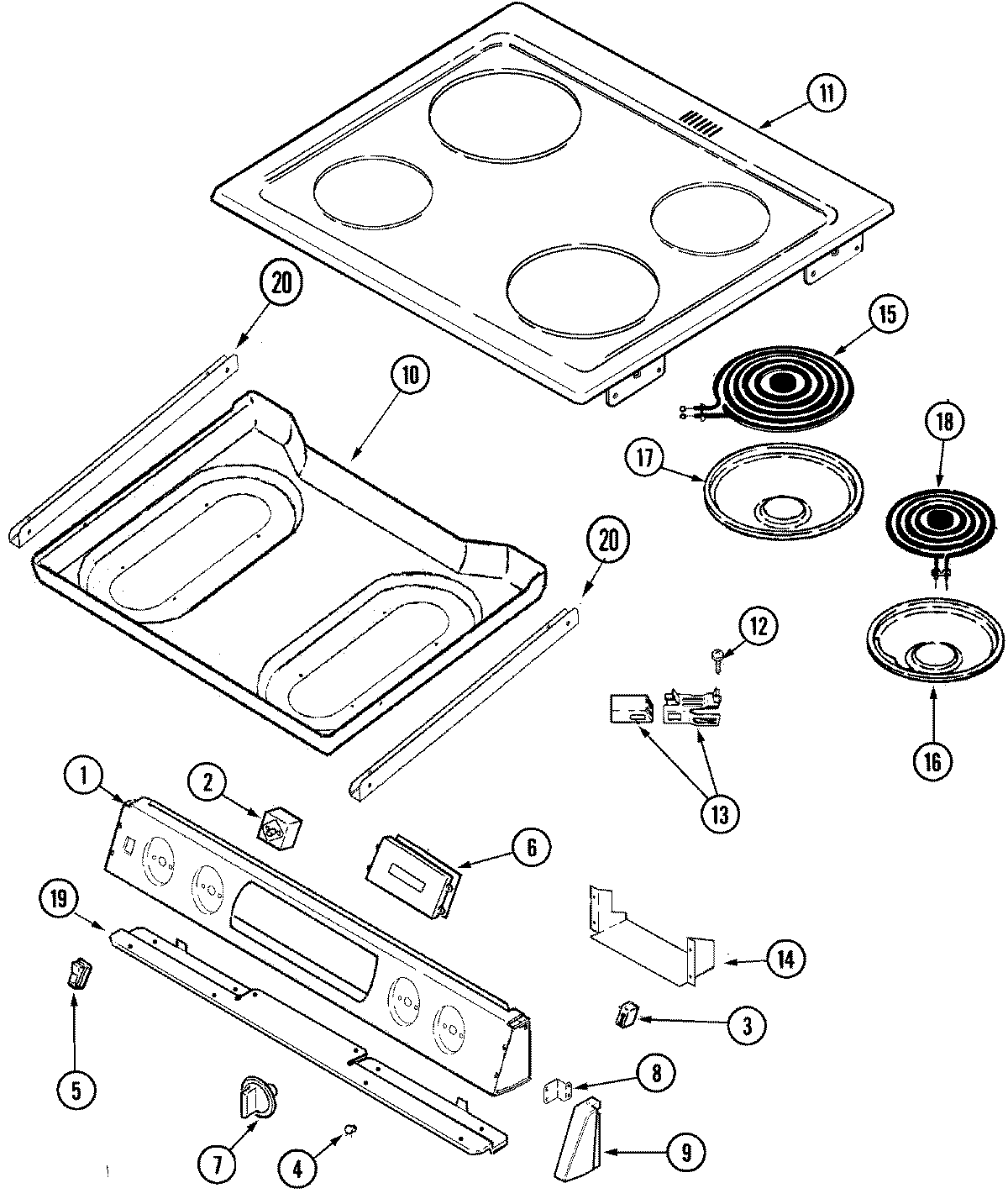

CEP3540AAA 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004250
NI	MAY 74004247
NI	MAY 12001323
NI	MAY 16010161
1	MAY 74004241
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008765 Whirlpool Range Oven Rocker Switch Bisque
6	MAY 74004239
6	MAY 74004255
7	MAY 74003447
8	MAY 74004186
9	MAY 74004200
9	MAY 74004201
9	MAY 74004605
9	WP74009541 Whirlpool Screw Assembly
9	MAY 74004824
9	MAY 74004823
9	MAY 74004606
10	MAY 7103P125-60
10	MAY 74004251
10	SCREW
10	MAY 74001449
11	MAY 74004249
12	MAY 7118P013-60
13	MAY 1430306K
14	MAY 74004246
15	WPW10345410 Whirlpool Surface Element
15	MAY 74004089
16	W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
18	WPW10259868 Whirlpool Surface Heating Element
18	MAY 74004090
19	MAY 74004185
19	SCREW (8BX3/8-NI)
