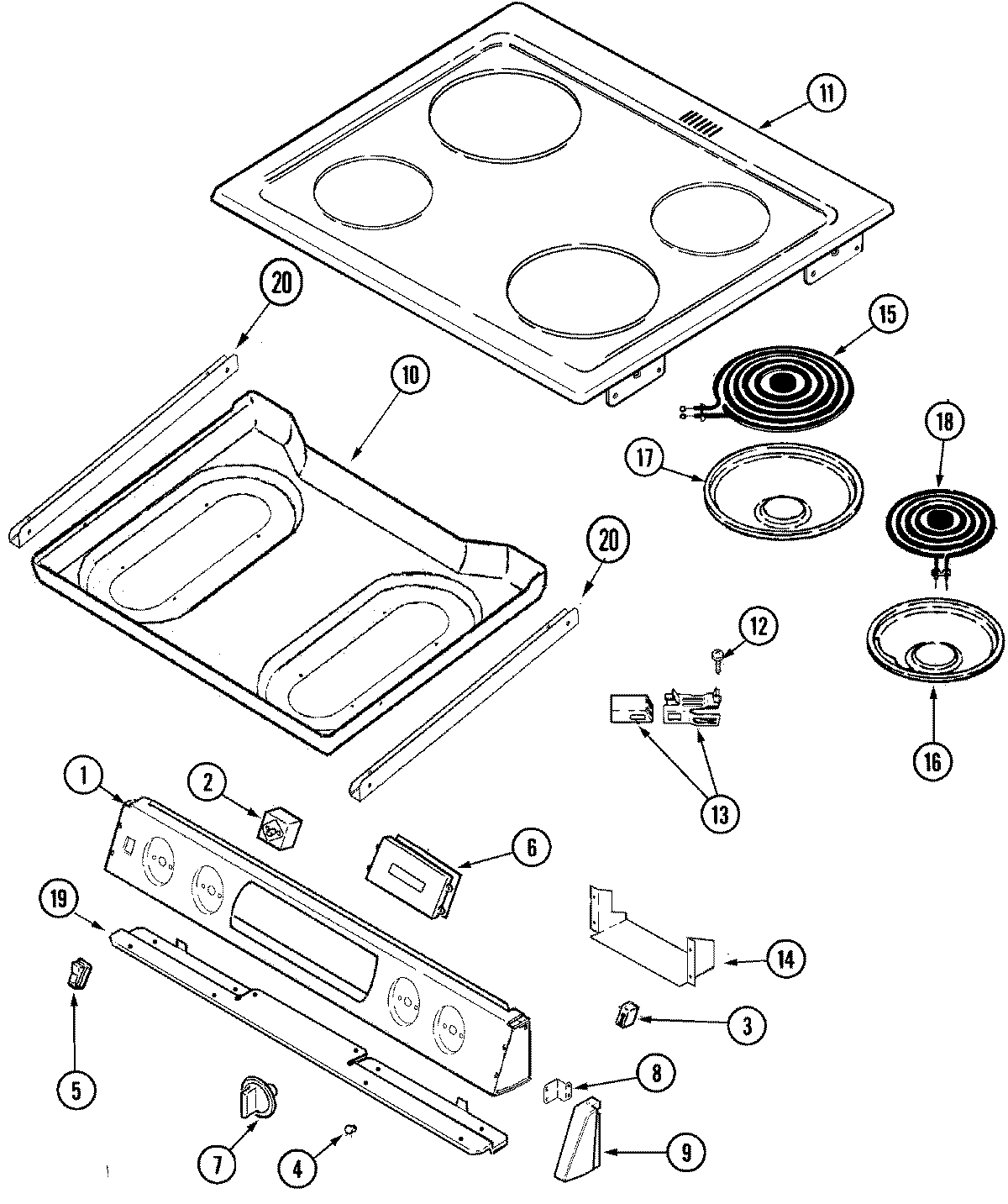

CEP3540AAQ 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004247
NI	MAY 12001323
NI	MAY 16010161
NI	MAY 74004250
1	MAY 74005084
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008765 Whirlpool Range Oven Rocker Switch Bisque
6	MAY 74005083
6	MAY 74005175
7	MAY 74005057
8	MAY 74004186
8	MAY 74005671
9	CAP, END (BSQ-RT)
9	CAP, END (BSQ-LT)
10	MAY 74004251
10	MAY 74006046
10	MAY 74001449
10	MAY 7103P125-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 74007601
11	MAY 74005087
12	MAY 7118P013-60
13	MAY 1430306K
14	MAY 74004246
15	WPW10345410 Whirlpool Surface Element
15	MAY 74004089
16	W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
18	WPW10259868 Whirlpool Surface Heating Element
18	MAY 74004090
19	SCREW (8BX3/8-NI)
19	MAY 74004185
20	SCREW
20	MAY 74005822
