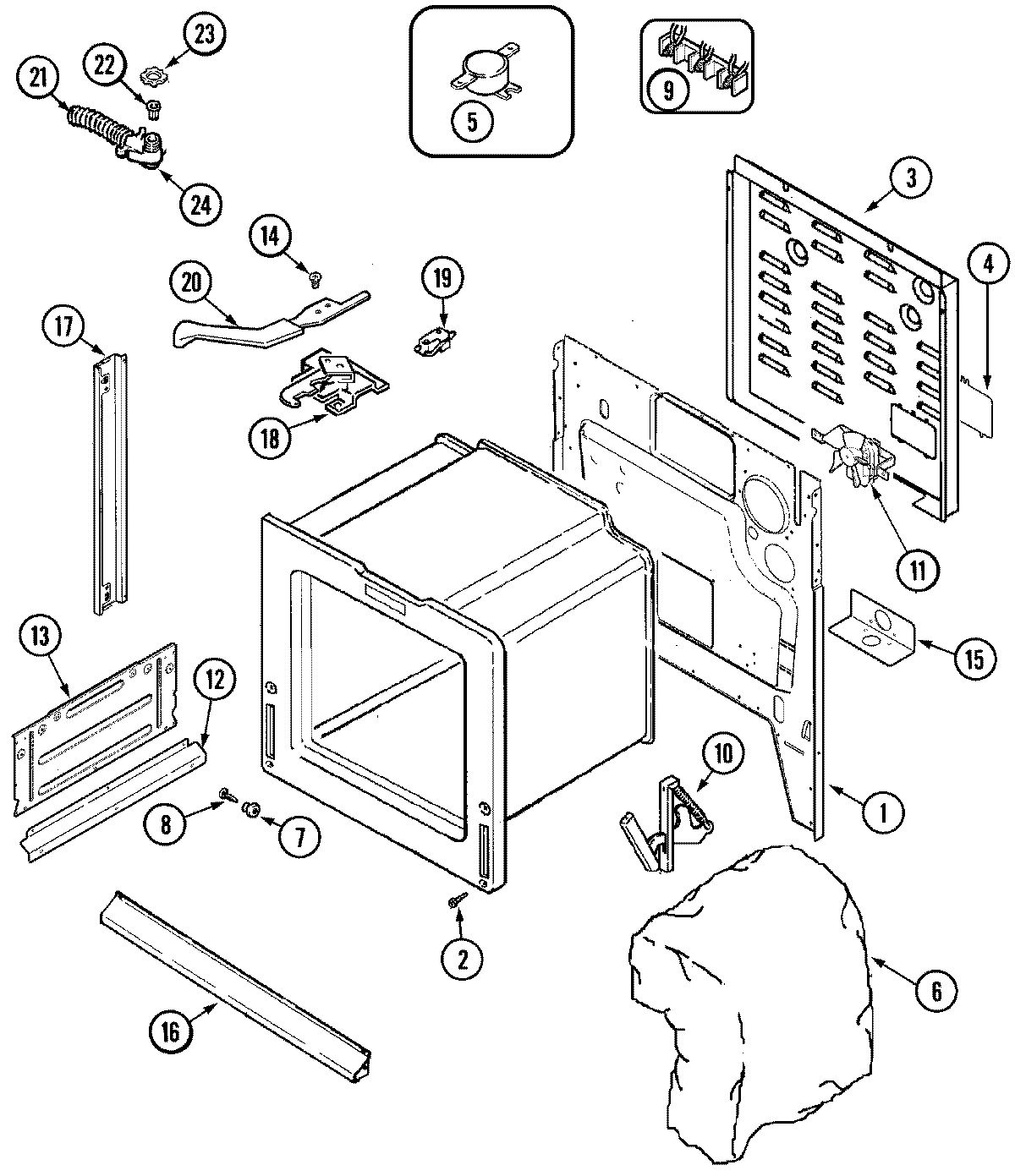

CEP3760AAA 01 – BODY

CEP3760AAA 01 – BODY

Written by

in

CEP3760AAA 01 – BODY

Products

Position	Product
1	MAY 74004215
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
3	MAY 74004183
4	COVER, TERMINAL BLOCK
4	MAY 74004184
5	WP71001844 Whirlpool Thermostat
6	MAY 74003381
6	WP74010942 Whirlpool Insulation
6	MAY 74003503
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	MAY 74002305
9	MAY 74002306
9	MAY 7401P038-60
10	WP74011140 Whirlpool Oven Hinge
11	MAY 74004947
11	SCREW
11	MAY 71001851
12	MAY 74004176
13	MAY 74004177
14	SCREW, LEVER
15	W10190166 Whirlpool Service Bracket
16	MAY 74003124
16	WP74009541 Whirlpool Screw Assembly
17	MAY 74004220
18	MAY 74001084
18	MAY 74003139
18	MAY 74003380
19	MAY 74003630
19	MAY 7101P330-60
19	MAY 74003383
20	MAY 74001057
21	MAY 74004221
22	MAY 74004222
23	MAY 7109P002-60
24	CONNECTOR, RT ANGLE
