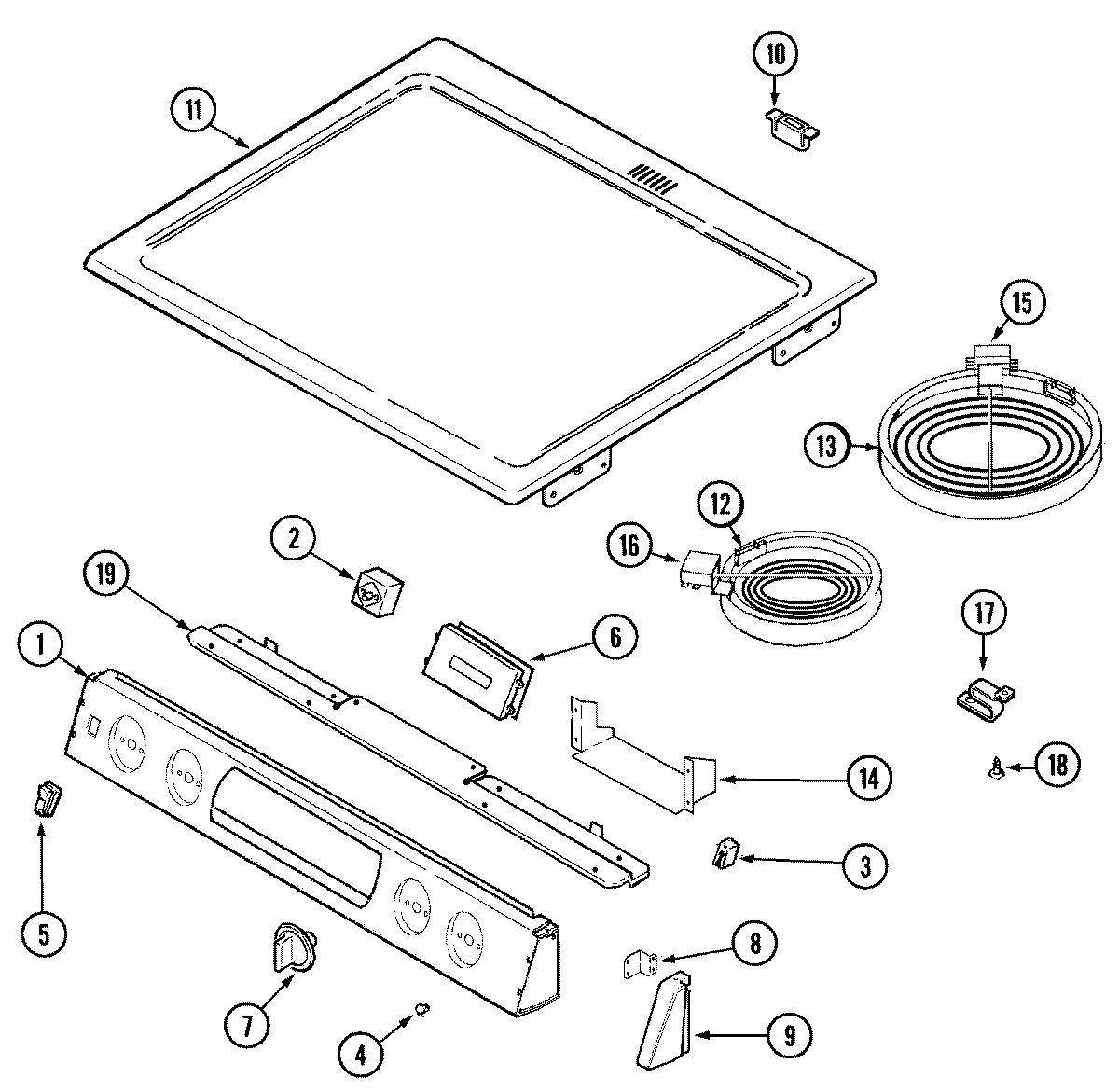

CEP3760AAA 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004250
NI	MAY 74004247
NI	MAY 16010161
NI	MAY 12001323
NI	MAY 74004237
1	MAY 74004241
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008765 Whirlpool Range Oven Rocker Switch Bisque
6	MAY 74004239
6	MAY 74004255
7	MAY 74003447
8	SCREW
8	MAY 74004186
9	MAY 74004200
9	MAY 74004606
9	MAY 74004201
9	WP74009541 Whirlpool Screw Assembly
9	MAY 74004823
9	MAY 74004824
9	MAY 74004605
10	MAY 74003053
11	WA906B Whirlpool Cooktop Glass Scraper
11	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
11	MAY 74004245
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13	W10823707 Whirlpool Range Radiant Surface Element 8"
14	MAY 74004246
15	MAY 74002652
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
