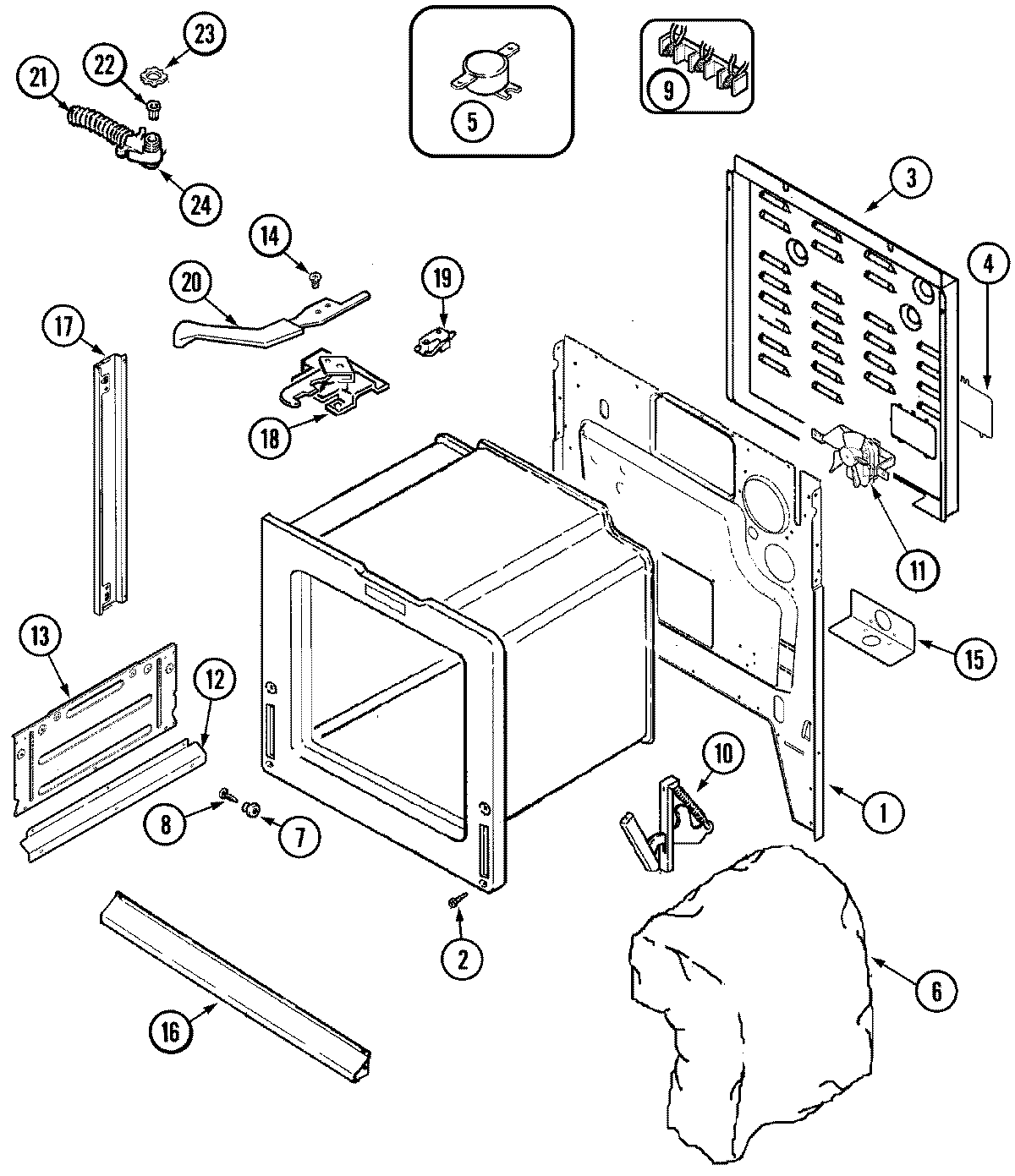

CEP3760AAQ 01 – BODY

Products

Position	Product
1	MAY 74004215
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
3	MAY 74004183
4	COVER, TERMINAL BLOCK
4	MAY 74004184
5	WP71001844 Whirlpool Thermostat
6	MAY 74003503
6	MAY 74003381
6	WP74010942 Whirlpool Insulation
7	MAY 8004P024-60
8	W11693756 Whirlpool Screw Assembly
9	MAY 7401P038-60
9	MAY 74002305
9	MAY 74002306
10	WP74011140 Whirlpool Oven Hinge
11	MAY 74004947
11	SCREW
12	MAY 74004176
13	MAY 74004177
14	SCREW, LEVER
15	W10190166 Whirlpool Service Bracket
16	MAY 74005100
16	WP74009541 Whirlpool Screw Assembly
17	MAY 74005094
18	MAY 12001943
18	MAY 74003380
18	MAY 74003139
18	MAY 74001084
19	MAY 7101P330-60
19	MAY 74003383
19	MAY 74003630
20	MAY 74001057
21	MAY 74004221
22	MAY 74004222
23	MAY 7109P002-60
24	CONNECTOR, RT ANGLE
