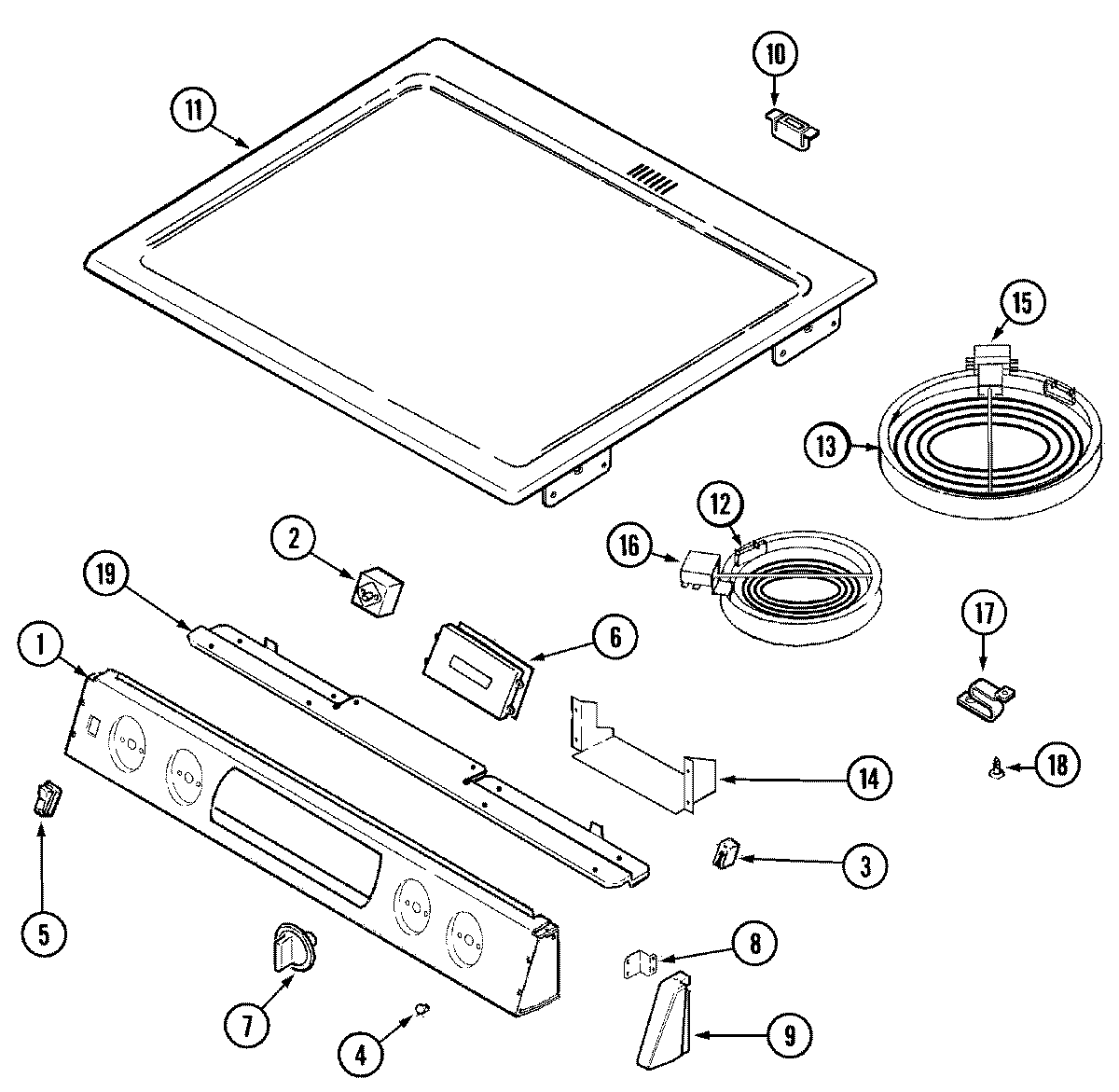

CEP3760AAW 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004247
NI	MAY 74004250
NI	MAY 74004237
NI	MAY 12001323
NI	MAY 16010161
1	MAY 74004240
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
3	MAY 74006388
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008717 Whirlpool White Rocker Switch
6	MAY 74004102
6	MAY 74004253
7	WP74003373 Whirlpool Knob Switch
8	MAY 74005671
8	MAY 74004186
8	SCREW
9	CAP, END (WHT-RT)
9	CAP, END (WHT-LT)
9	MAY 74004198
9	WP98008544 Whirlpool Screw Assembly
9	MAY 74004604
9	MAY 74004603
9	MAY 74004199
10	MAY 74003053
11	MAY 74004244
11	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
11	WA906B Whirlpool Cooktop Glass Scraper
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
13	W10823697 Whirlpool Surface Element
13	W10823707 Whirlpool Range Radiant Surface Element 8"
14	MAY 74004246
15	MAY 74002652
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
