CEP70302M1S1 CONTROL PANEL & COOKTOP

CEP70302M1S1 CONTROL PANEL & COOKTOP

Written by

in

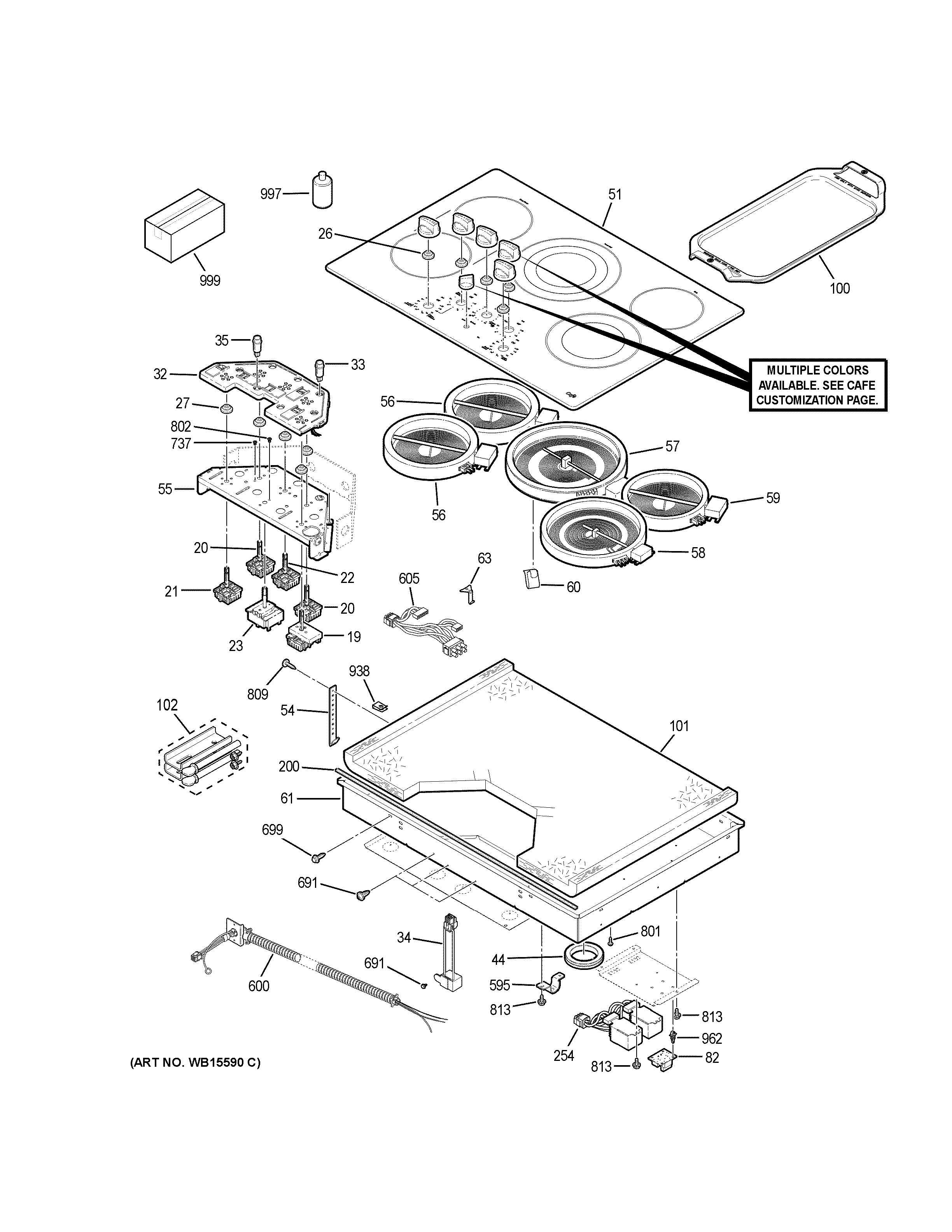

CEP70302M1S1 CONTROL PANEL & COOKTOP

Products

PositionProduct
19WB24X47195 GE Infinite Switch Control
20WB24X24137 GE Oven Infinite Switch Control
21WB24X24138 GE Oven Infinite Control Switch
22WB24X24155 GE Oven Infinite Control Switch
23WB24X24145 GE Oven Lockout Switch
26WB02X26801 GE Oven Clear Seal Infinite Control
27INFINITE CONTROL SEAL
32LED BOARDS AND HOUSING ASM WHITE LED
33WB25T10012 GE Oven Indicator Light
34WB18X24105 GE Oven Buzzer
35WB25X24131 GE Oven Lockout Indicator Light
44WB02T10092 GE Burner Box Grommet
51WB62X31414 GE Maintop Glass and Frame Assembly
54WB2K5328 GE Oven Hold Down Bracket
55BRACKET INF SWITCH
56WB30T10129 GE Oven Radiant Element 6 In
57WB30X24161 GE Oven Halogen Element
58WB30X24134 GE Oven Halogen Element (Dual)
59WB30T10145 GE Oven Radiant Surface Element
60WB09X40389 GE Radiant Element Spring
61WB63X24120 GE Bottom Burner Box
63WB02X24195 GE Oven Radiant Element Bracket
82WB27X24029 GE Surface Backlight Control Board
100WB31X24640 GE Oven Griddle
101WB35X24123 GE Insulation
102WB01X24570 GE Oven Installation Kit
200WB02X26088 GE Oven Foam Tape
254WB18X32561 GE Relay Wire Harness
595WB2K5126 GE Oven Condenser Clamp
600WB18X32530 GE Wire Conduit Assembly
605WB18X32533 GE Griddle Wire Harness
605WB18X32546 GE Infinite LED Wire Harness
605WB18X32551 GE Power Wire Harness
605HARNESS WIRE MAIN RT
605WB18X32565 GE Oven 18 Gauge Lead Wire
691GEN WZ04X0217
699WB01X24096 GE Screw 8-18X
737SCR 8-32 B FLP 3/4
801WS02X10087 GE Screws 10-32 GX HXW 7/16 S
802WB1K5119 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB01X24092 GE Oven Screw 8-18
938WB1K5209 GE Oven Clip
962WB02T10477 GE Standoff PCB
997PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM INSERT INSTRUCTIONS
999PM OWNERS MANUAL
999PM QUICK OWNERS MANUAL
