CEP90362N1SS CONTROL PANEL & COOKTOP

CEP90362N1SS CONTROL PANEL & COOKTOP

Written by

in

CEP90362N1SS CONTROL PANEL & COOKTOP

Products

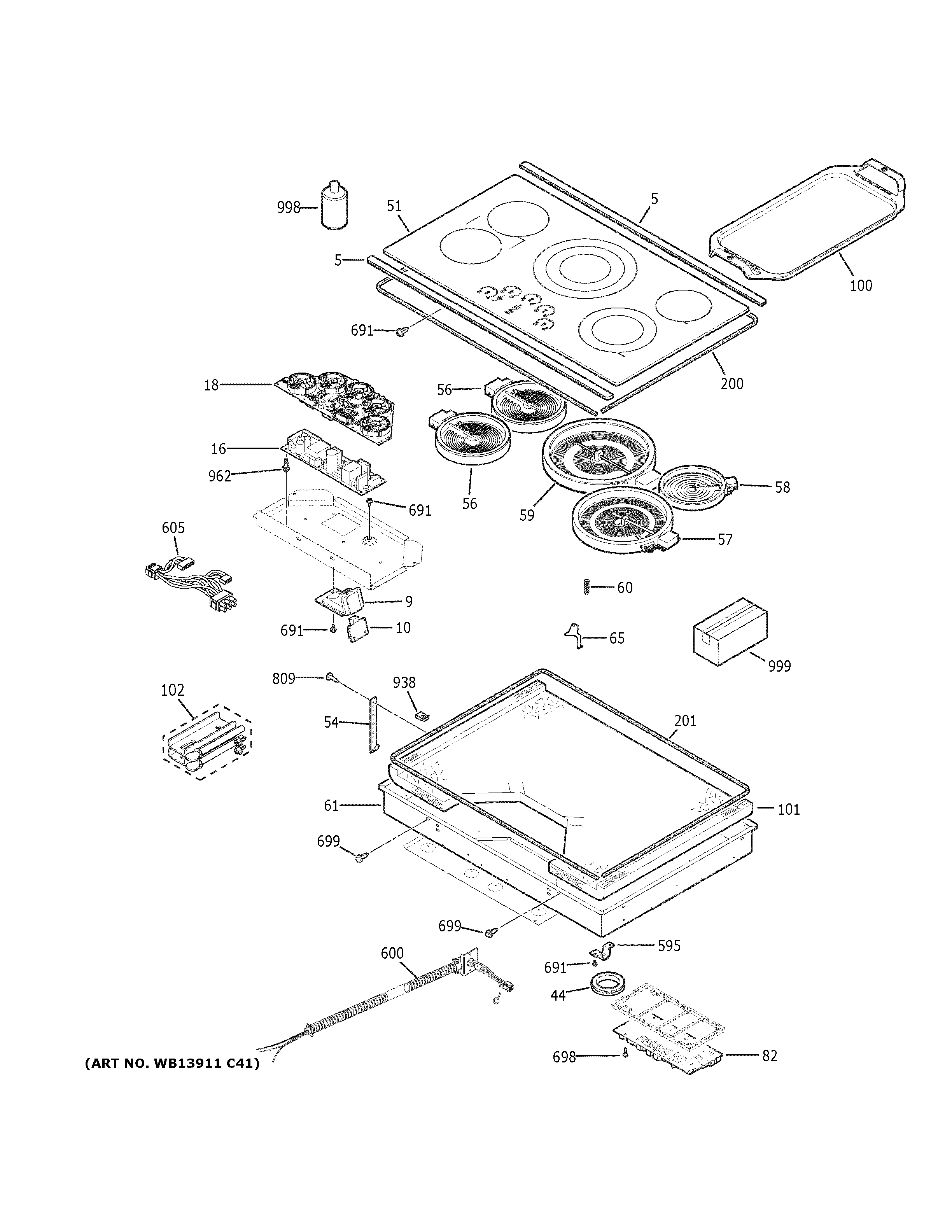

PositionProduct
5TRIM SS
9WB27X20933 GE Oven RJ45 Housing Assembly
10WB27X24119 GE Oven RJ45 Connector Board
16WB27X24011 GE Oven Power Supply Board
18WB27X36066 GE Display Board
44WB02T10092 GE Burner Box Grommet
51WB62X33185 GE Cafeteria Maintop Glass and Frame
54WB2K5328 GE Oven Hold Down Bracket
56WB30T10129 GE Oven Radiant Element 6 In
57WB30X24161 GE Oven Halogen Element
58WB30T10145 GE Oven Radiant Surface Element
59WB30T10155 GE Oven Halogen Burner Assembly
60WB09X40389 GE Radiant Element Spring
61BOTTOM BURN BOX
65WB02X24196 GE Radiant Element Bracket
82WB27X24010 GE Oven Machine Control Relay Board
100WB31X24640 GE Oven Griddle
101WB35X24172 GE Insulation
102WB01X24570 GE Oven Installation Kit
200WB35X24125 GE Oven Insulation Foam Tape
201WB02X26088 GE Oven Foam Tape
595WB2K5126 GE Oven Condenser Clamp
600CONDUIT WIRE ASM
605HARNESS WIRE POWER
605HARNESS WIRE MAIN RT
605WB18X32559 GE Control Wire Harness
605WB18X32517 GE Logic Wire Harness
605WB18X31018 GE Power Harness Wire
605WB18X31001 GE Light Main Harness
691WB01X24092 GE Oven Screw 8-18
698WZ4X416 GE WZ04X0408
699WB01X24096 GE Screw 8-18X
809WB1X1137 GE Oven Screw
938WB1K5209 GE Oven Clip
962WB02T10477 GE Standoff PCB
998PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM GUIDE MINI
