CER1100AAH 02 – CONTROL PANEL/TOP ASSEMBLY

CER1100AAH 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

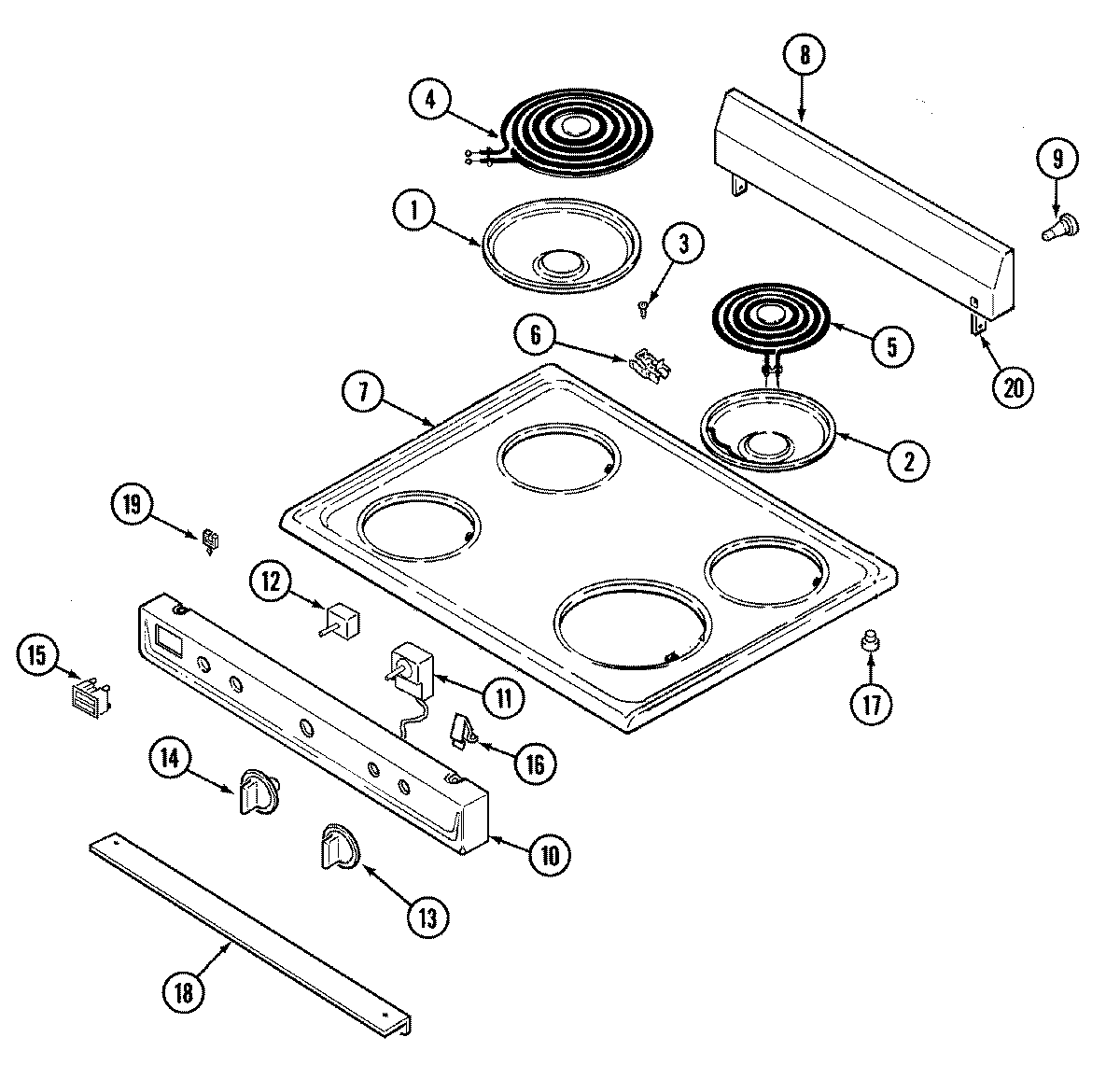

CER1100AAH 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1DRIP BOWL 8" W/HOLE CHROME
2WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
3MAY 7118P013-60
4WPY04000035 Whirlpool Surface Element
5WPY04000036 Whirlpool Surface Element
6MAY 1430306K
7MAY 3802F085-80
7TOP, MAIN (WHT)
8MAY 74003400
9SPACER, HINGE (MAIN TOP)
10MAY 74003401
10BRACKET, CNTL. PANEL
11MAY 74003267
12WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12WP7403P239-60 Whirlpool Oven Switch
12SCREW
13WP74003280 Whirlpool Knob Assembly
14WP7737P030-60 Whirlpool Knob Switch
15MAY 7407P015-60
16MAY 7112P087-60
17MAY 74001428
18SCREW
18SUPPORT UPPER FRONT PANEL
19MAY 7112P029-60
20MAY 3801F242-51
20MAY 3801F243-51
