CER1115AAH 01 – BODY

CER1115AAH 01 – BODY

Written by

in

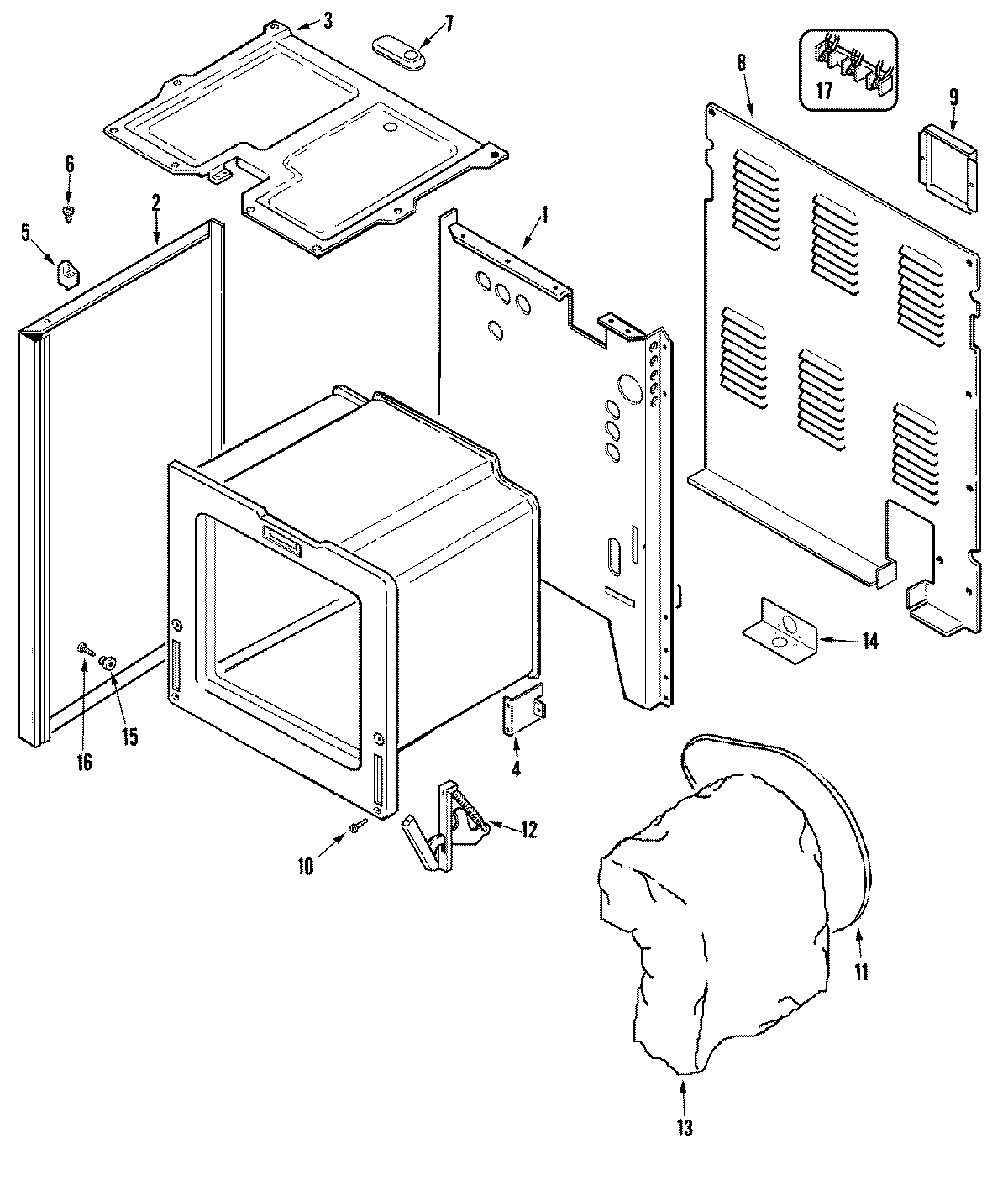

CER1115AAH 01 – BODY

Products

PositionProduct
1MAY 74009677
1MAY 74002334
1MAY 74010934
2MAY 74003236
3MAY 74007026
3MAY 74011035
3WP74003976 Whirlpool Screw
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6SCREW (8BX3/8-NI)
7COVER, VENT
8MAY 74009744
8MAY 71001394
9MAY 74010256
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 74003112
13MAY 4804F039-60
14W10190166 Whirlpool Service Bracket
14SCREW
15MAY 8004P024-60
16MAY 74007476
16W11693756 Whirlpool Screw Assembly
17MAY 7111P020-60
17WPW10245259 Whirlpool Terminal Block
17SCREW (10ABX1.0-ZN)
17WP7103P027-60 Whirlpool Nut
