CER1140AAQ 03 – DOOR/DRAWER

CER1140AAQ 03 – DOOR/DRAWER

Written by

in

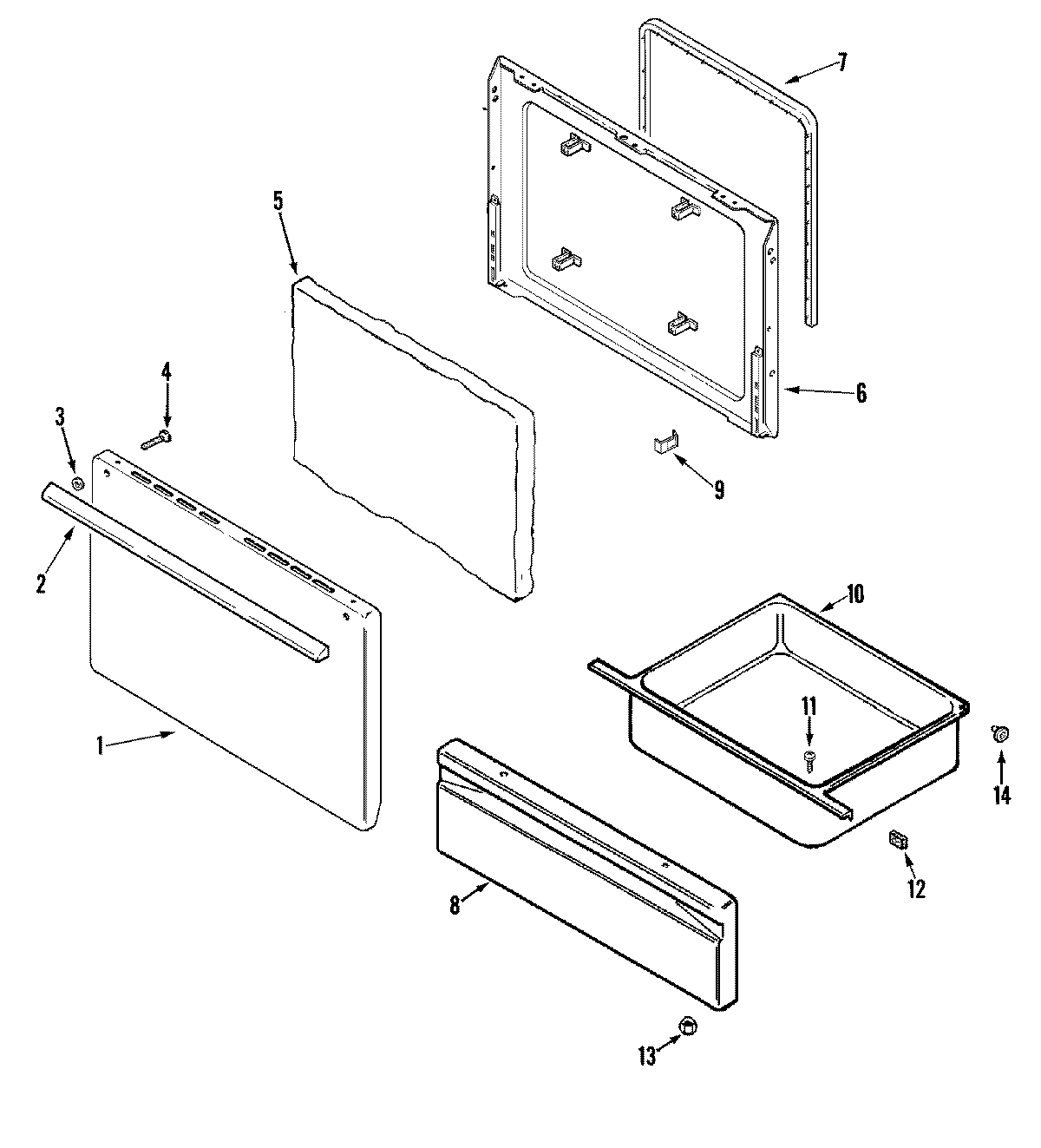

CER1140AAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74005053
1WP74009541 Whirlpool Screw Assembly
1SCREW
2MAY 74007089
2MAY 74005054
3WP74005058 Whirlpool Spacer Assembly
4WP3387230 Whirlpool Screw
5MAY 4804F050-60
6MAY 74003240
7WP7212P043-60 Whirlpool Oven Door Seal Gasket
8MAY 74005055
9CLIP, DOOR
10MAY 74003618
11MAY 7101P037-60
12WP854334 Whirlpool Air Conditioner Sealing Strip
13WPW10131078 Whirlpool Nut Assembly
14WP488130 Whirlpool Air Conditioner Nut
14MAY 74003566
