CER1360ACL 04 – OVEN/BASE

Products

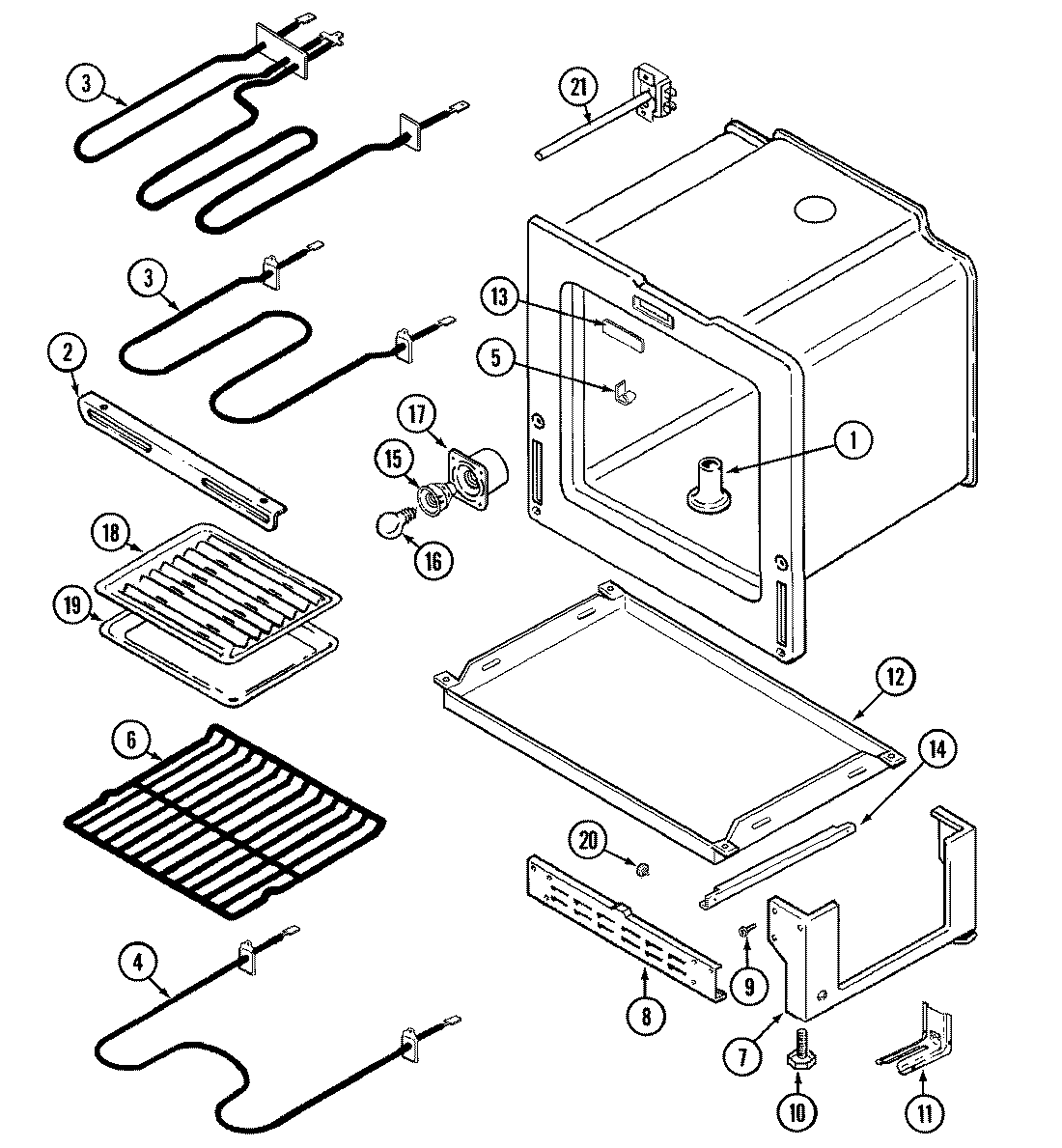

Position	Product
1	MAY 8026P019-60
2	SUPPORT, BROIL ELEMENT
3	MAY Y04000057
4	WP74010750 Whirlpool Oven Bake Element
5	WP7112P004-60 Whirlpool Thermal Clip
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003393
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	MAY 74002311
11	WP7101P485-60 Whirlpool Anchor Tip
12	MAY 74003392
13	PLUG, LOCK SLOT
14	RUNNER, DRAWER
15	MAY 74003387
15	WP7407P182-60 Whirlpool Lamp
16	MAY Y707319
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
17	MAY 74003388
18	MAY Y3413F01619
19	MAY Y3401F02019
20	WP488130 Whirlpool Air Conditioner Nut
20	MAY 74003566
21	SCREW
21	MAY 7404P057-60
