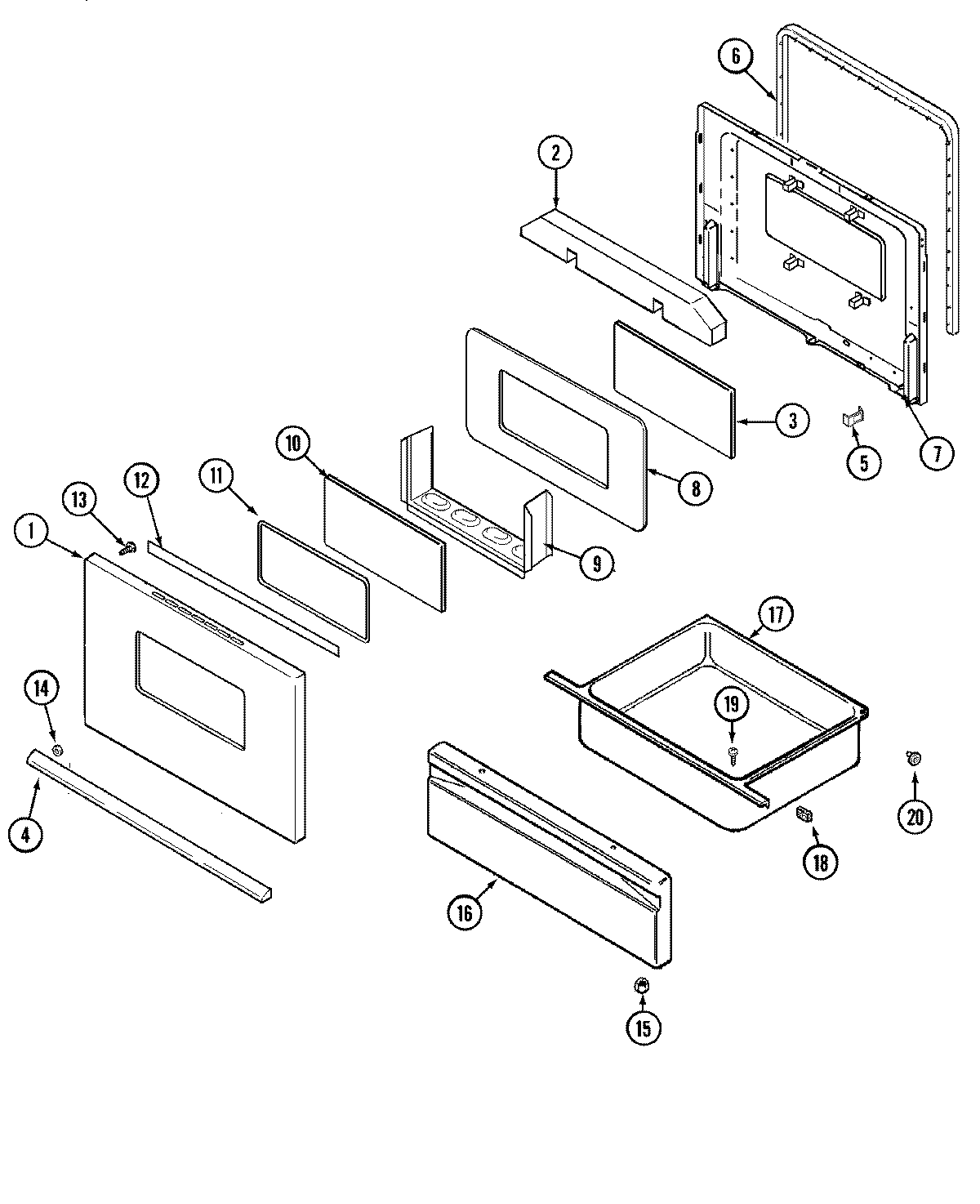

CER1360BCW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74005223
1	SCREW
2	MAY 74002458
3	MAY 74002459
4	WP2411F013-71 Whirlpool Door Handle
5	CLIP, DOOR
6	WP7212P043-60 Whirlpool Oven Door Seal Gasket
7	MAY 74005097
8	MAY 7101P209-60
8	MAY 74002461
9	MAY 74002462
10	MAY 74002464
11	MAY 7201P017-60
12	TAPE, FOIL (3“ WIDE)
13	WP3387230 Whirlpool Screw
14	WP74005058 Whirlpool Spacer Assembly
15	WPW10131078 Whirlpool Nut Assembly
16	MAY 74003399
17	MAY 74003618
18	WP854334 Whirlpool Air Conditioner Sealing Strip
20	WP74004078 Whirlpool Door Roller
20	MAY 74004079
20	WP488130 Whirlpool Air Conditioner Nut
