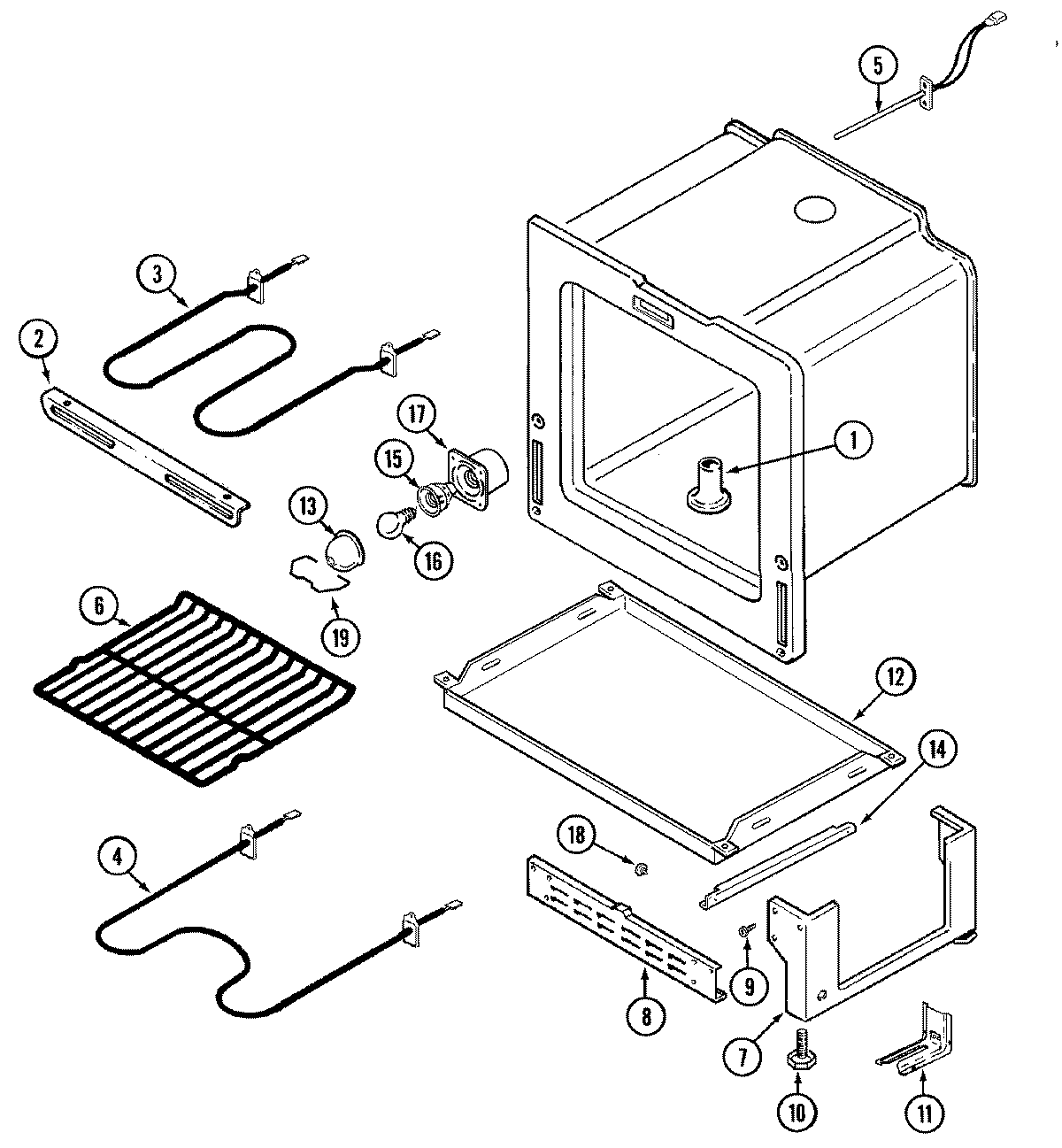

CER3520AAH 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003469
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	MAY 74003390
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003393
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	MAY 74002311
11	WP7101P485-60 Whirlpool Anchor Tip
12	MAY 74003392
13	WP9781049 Whirlpool Light Lens
13	MAY 74003389
14	SCREW
14	RUNNER, DRAWER
15	MAY 74003387
15	WP7407P182-60 Whirlpool Lamp
16	MAY Y707319
17	MAY 74003388
18	WP488130 Whirlpool Air Conditioner Nut
18	MAY 74003566
19	MAY 74003391
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
