Aparts

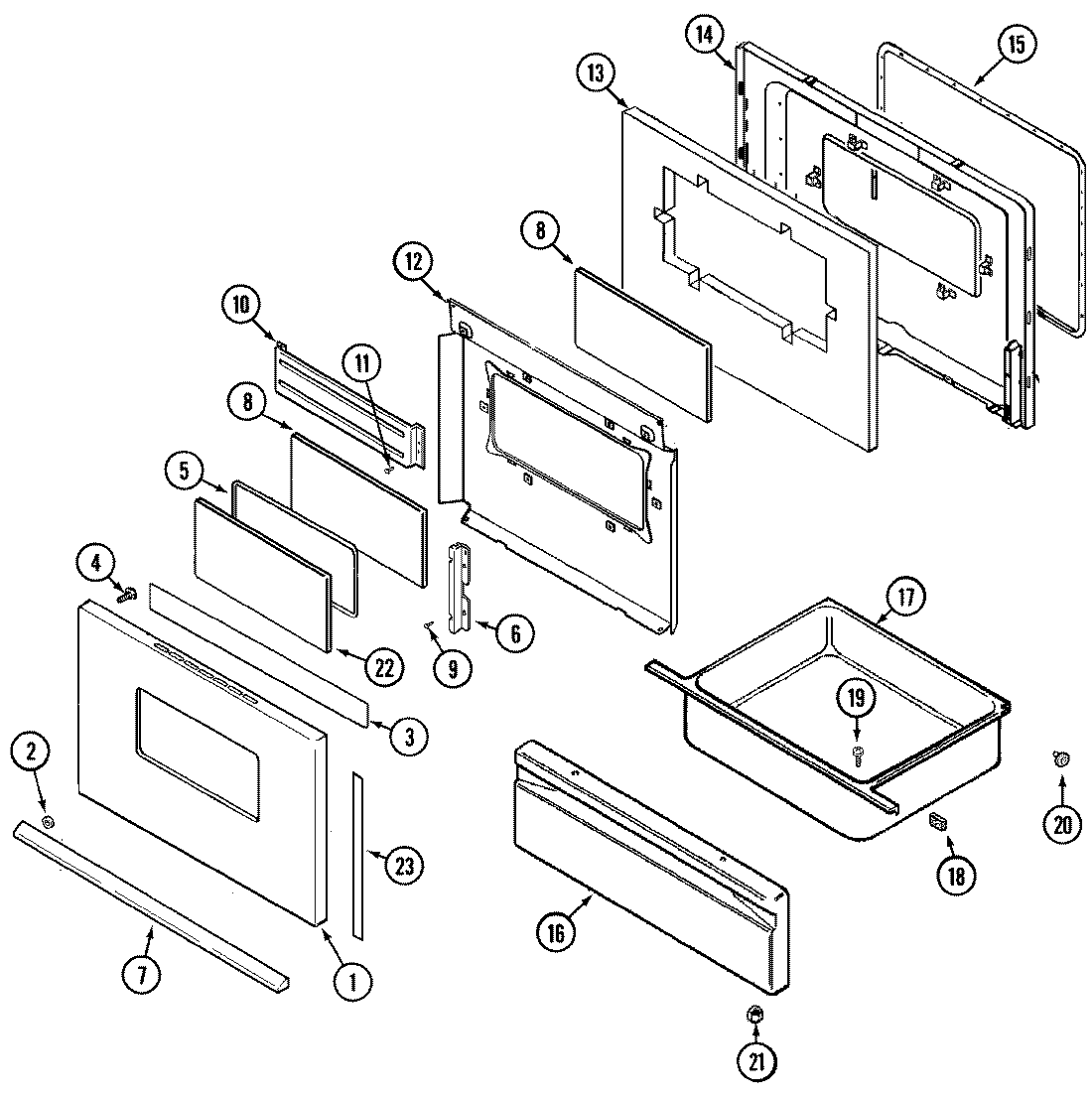

CER3520AGW 03 – DOOR/DRAWER

CER3520AGW 03 – DOOR/DRAWER

Written by

in

CER3520AGW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74005267
1MAY 74003470
1WP98008544 Whirlpool Screw Assembly
2WP74005058 Whirlpool Spacer Assembly
3TAPE, FOIL (3“ WIDE)
4WP3387230 Whirlpool Screw
5MAY 7201P017-60
6MAY 74003048
7WP2411F013-71 Whirlpool Door Handle
8MAY 74001841
10MAY 74003050
11MAY 7101P356-60
12MAY 74001843
13MAY 74001842
14MAY 74003244
15GASKT-DOOR OVEN
16MAY 74003399
17SCREW
17MAY 74003618
18MAY 8010P085-60
19WP7101P072-60 Whirlpool Screw
20WP488130 Whirlpool Air Conditioner Nut
20MAY 74003566
21WPW10131078 Whirlpool Nut Assembly
22MAY 74003049
23MAY 74003472
