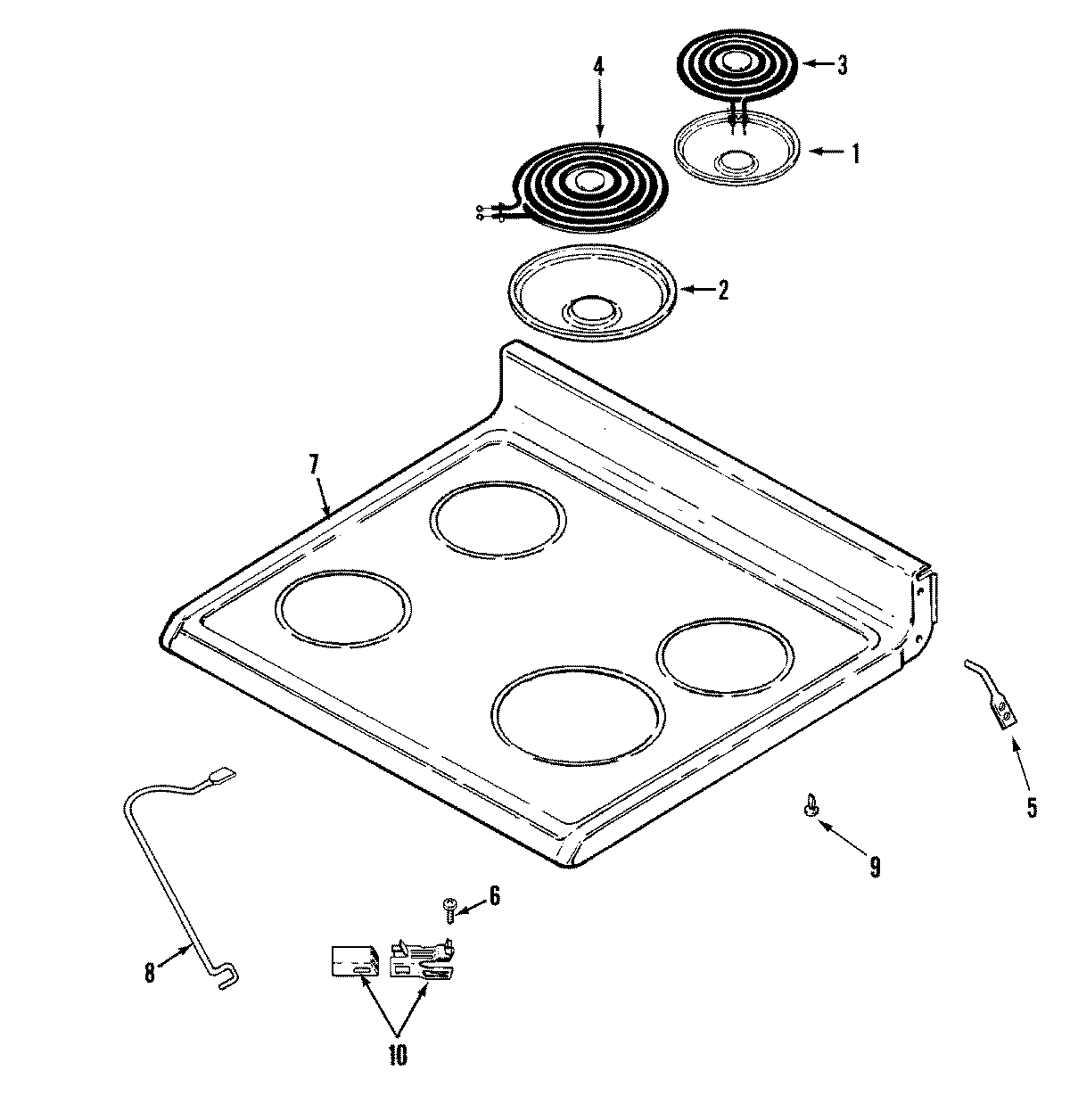

CER3525AAW 06 – TOP ASSEMBLY

Products

Position	Product
1	WPW10196406 Whirlpool 6" Chrome Drip Bowl
1	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2	DRIP BOWL 8" W/HOLE CHROME
3	WPW10345407 Whirlpool Surface Element
4	WP9761346 Whirlpool Stove Surface Burner Element
5	MAY 74003371
5	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
6	MAY 7118P013-60
7	MAY 74003428
8	MAY 74004084
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	W11189172 Whirlpool Glide Drawer
10	WP74007474 Whirlpool Dishwasher Element Receptacle
