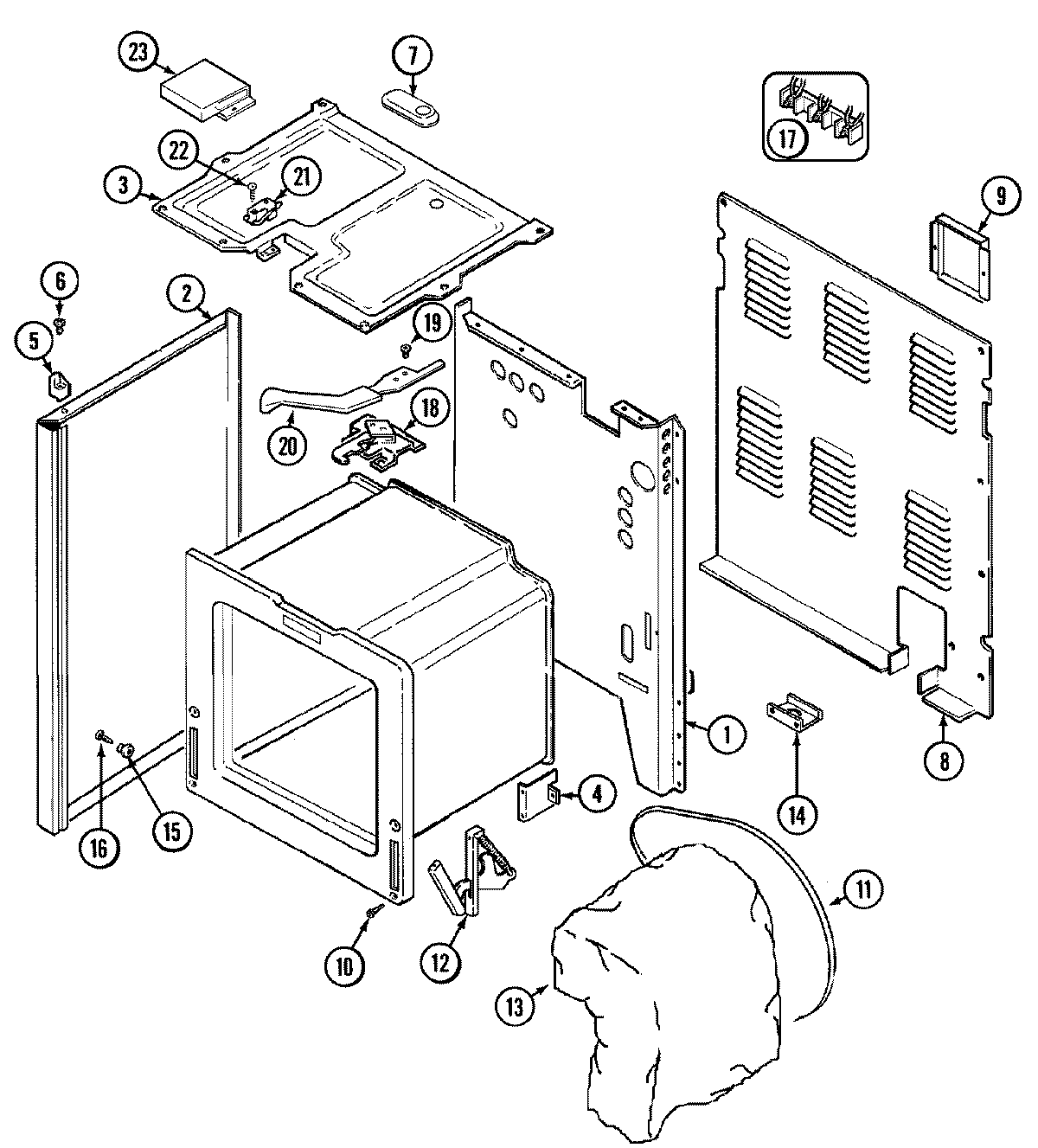

CER3540AAT 01 – BODY (AAQ/AAT)

CER3540AAT 01 – BODY (AAQ/AAT)

Written by

in

CER3540AAT 01 – BODY (AAQ/AAT)

Products

PositionProduct
1MAY 74002334
1MAY 74001772
2MAY 8270P078-60
2MAY 74004965
3MAY 74003403
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6SCREW
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
11MAY 74003385
12WP74011140 Whirlpool Oven Hinge
13MAY 74003381
13WP74010942 Whirlpool Insulation
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74001449
17WP7103P027-60 Whirlpool Nut
17WPW10245259 Whirlpool Terminal Block
17SCREW (10ABX1.0-ZN)
18MAY 74001084
18MAY 74003380
18MAY 74003139
20MAY 74003005
21MAY 7003P063-60
21MAY 74003383
22WP4159193 Whirlpool Screw
23MAY 74003479
