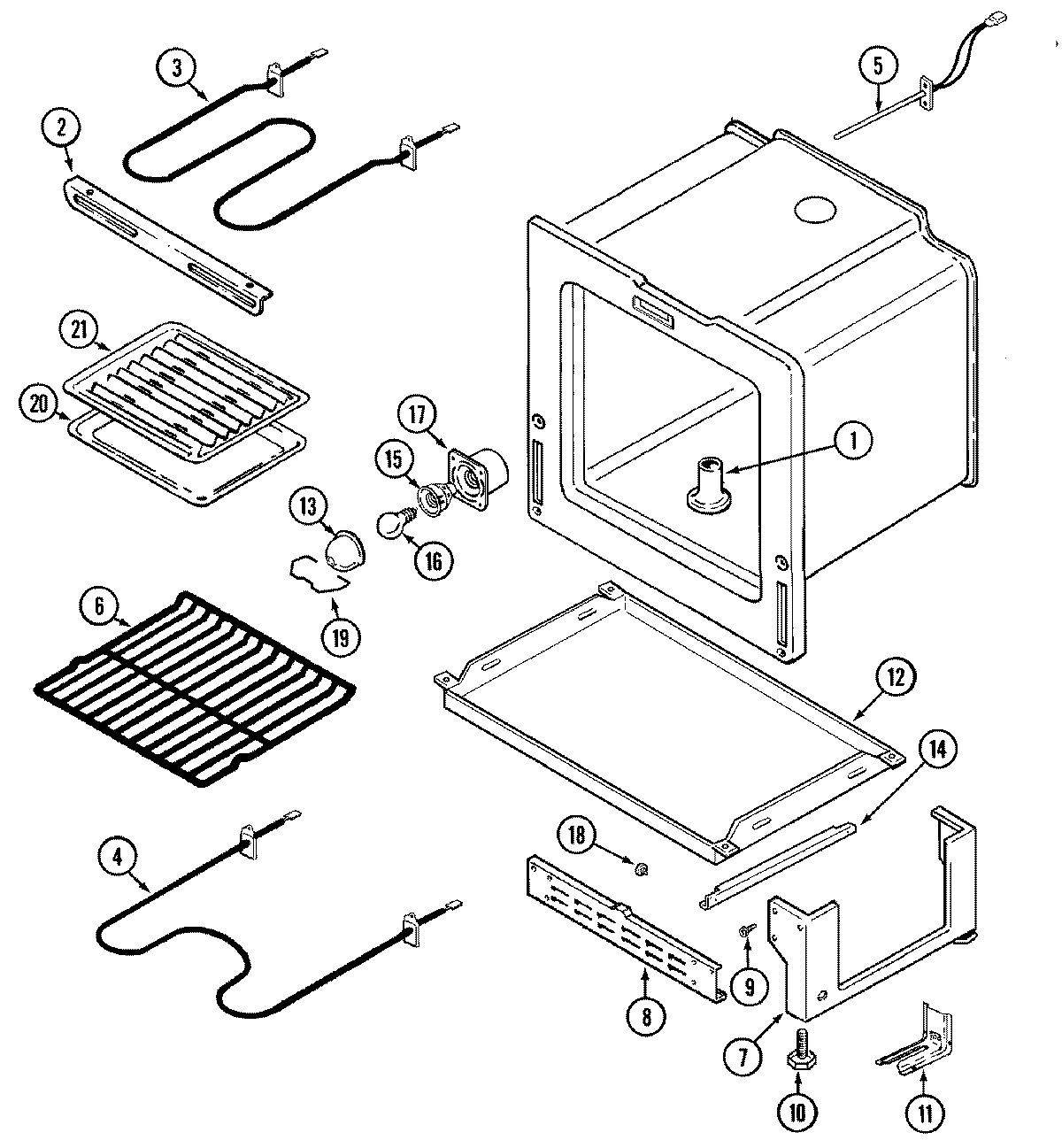

CER3540BAH 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003469
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	MAY 74005250
13	MAY 74003389
14	RUNNER, DRAWER
15	MAY 74003387
15	SCREW
16	MAY Y707319
17	MAY 74003388
18	74005230 Whirlpool Oven Lock Nut (8-32)
18	SHAFT, STORAGE DRAWER ROLLER
18	WP74004078 Whirlpool Door Roller
19	MAY 74003391
20	MAY Y3401F02019
21	MAY Y3413F01619
