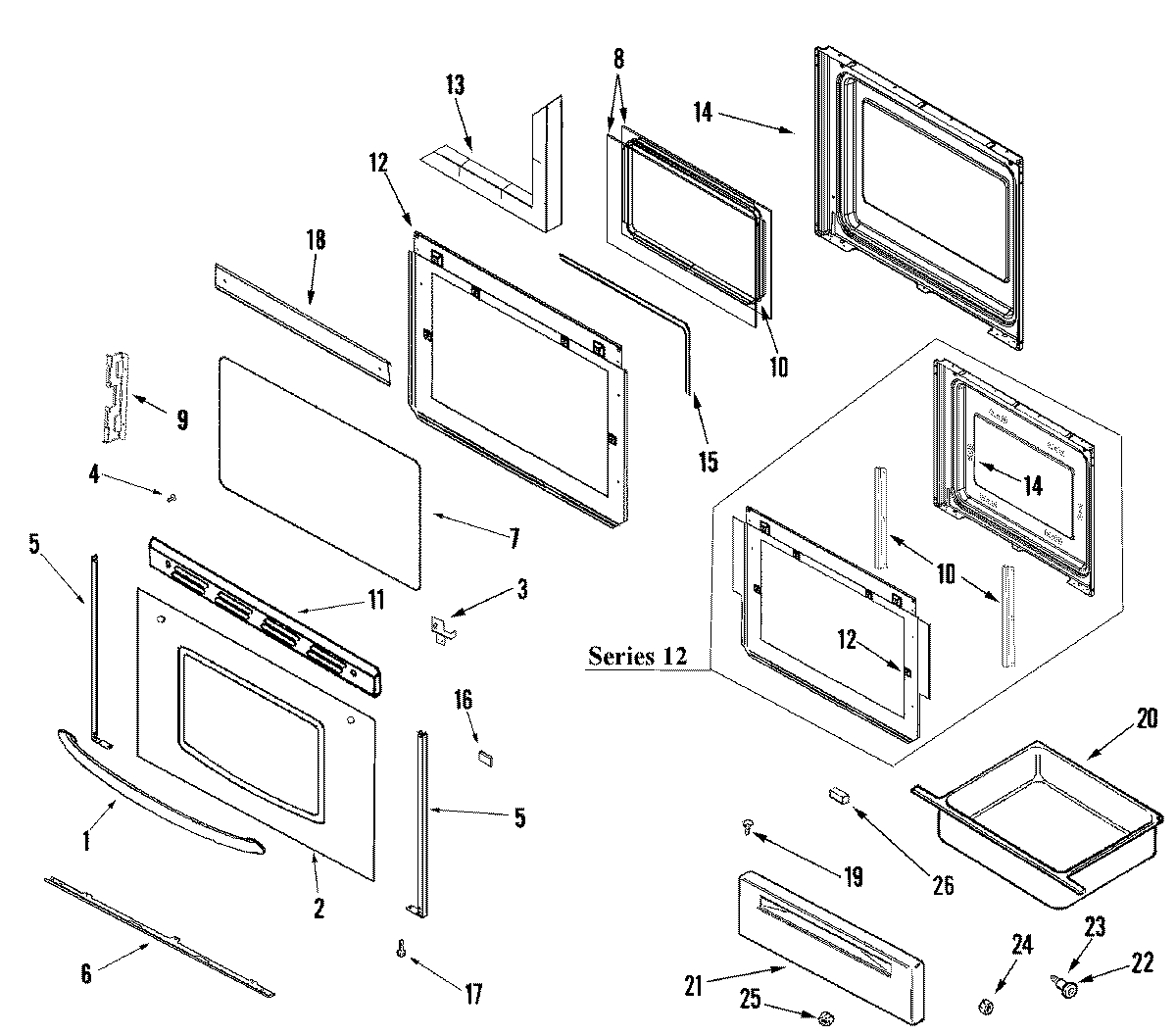

CER3735ACZ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010338
2	MAY 74010879
2	TAPE, FOIL 29`` X 2``
3	3801F831-45 Whirlpool Bracket Assembly
3	3801F832-45 Whirlpool Bracket
4	WP74006515 Whirlpool Washer Screw
5	WP3608F116-70 Whirlpool Door Trim
5	WP3608F117-70 Whirlpool Door Trim
5	WP74004224 Whirlpool Tape
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
10	3801F886-51 Whirlpool Mounting Bracket
10	FRAME, GLASS
11	MAY 74010239
12	MAY 7101P356-60
12	MAY 74009502
12	3601F373-51 Whirlpool Baffle
13	INSULATION, OVEN DOOR
14	SCREW
14	LINING, DOOR
14	NUT, SNAP (ROUND-BLK)
14	MAY 74003642
15	GASKT-DOOR OVEN
16	SPACER, RUBBER (BLK-SQUARE)
17	WP98008545 Whirlpool Screw
18	MAY 74010837
20	MAY 74008337
21	MAY 74010881
22	WP74004078 Whirlpool Door Roller
23	SHAFT, STORAGE DRAWER ROLLER
24	WP488130 Whirlpool Air Conditioner Nut
25	WPW10131078 Whirlpool Nut Assembly
26	WP74005546 Whirlpool RU Spacer
