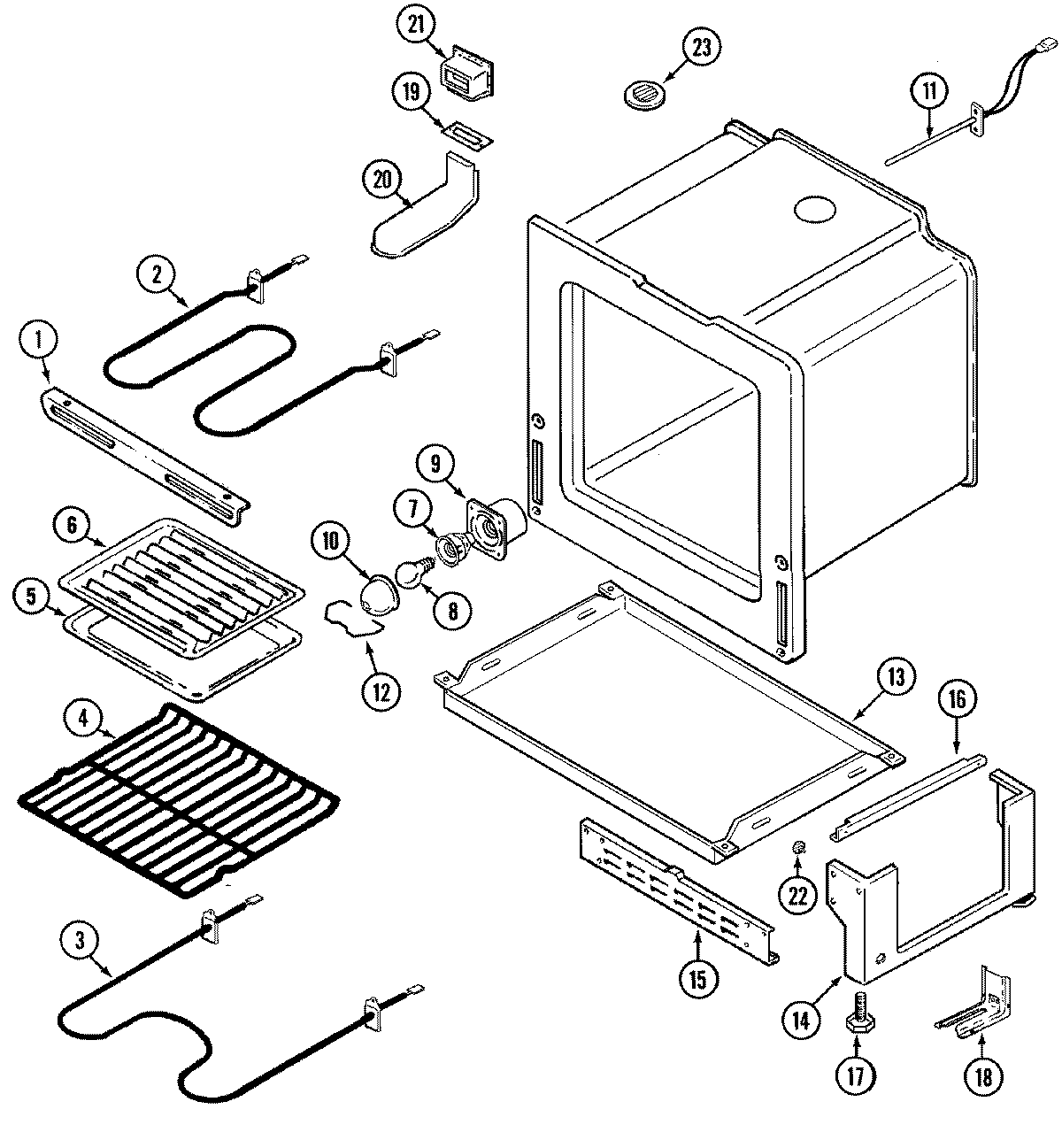

CER3740AAH 04 – OVEN/BASE

Products

Position	Product
1	SUPPORT, BROIL ELEMENT
2	WPW10310249 Whirlpool Broil Element
3	WP74010750 Whirlpool Oven Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	WP7407P182-60 Whirlpool Lamp
7	MAY 74003387
8	MAY Y707319
9	MAY 74003388
10	WP9781049 Whirlpool Light Lens
10	MAY 74003389
11	MAY 74003390
12	MAY 74003391
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 74003242
13	MAY 8312P058-60
14	MAY 74003393
15	MAY 4020F001-80
16	RUNNER, DRAWER
17	W11665456 Whirlpool Range Level Foot
18	WP7101P485-60 Whirlpool Anchor Tip
18	MAY 74002311
19	MAY 74003285
20	MAY 74003394
21	MAY 3826W014-45
21	SCREW
22	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74003566
23	MAY 74003633
