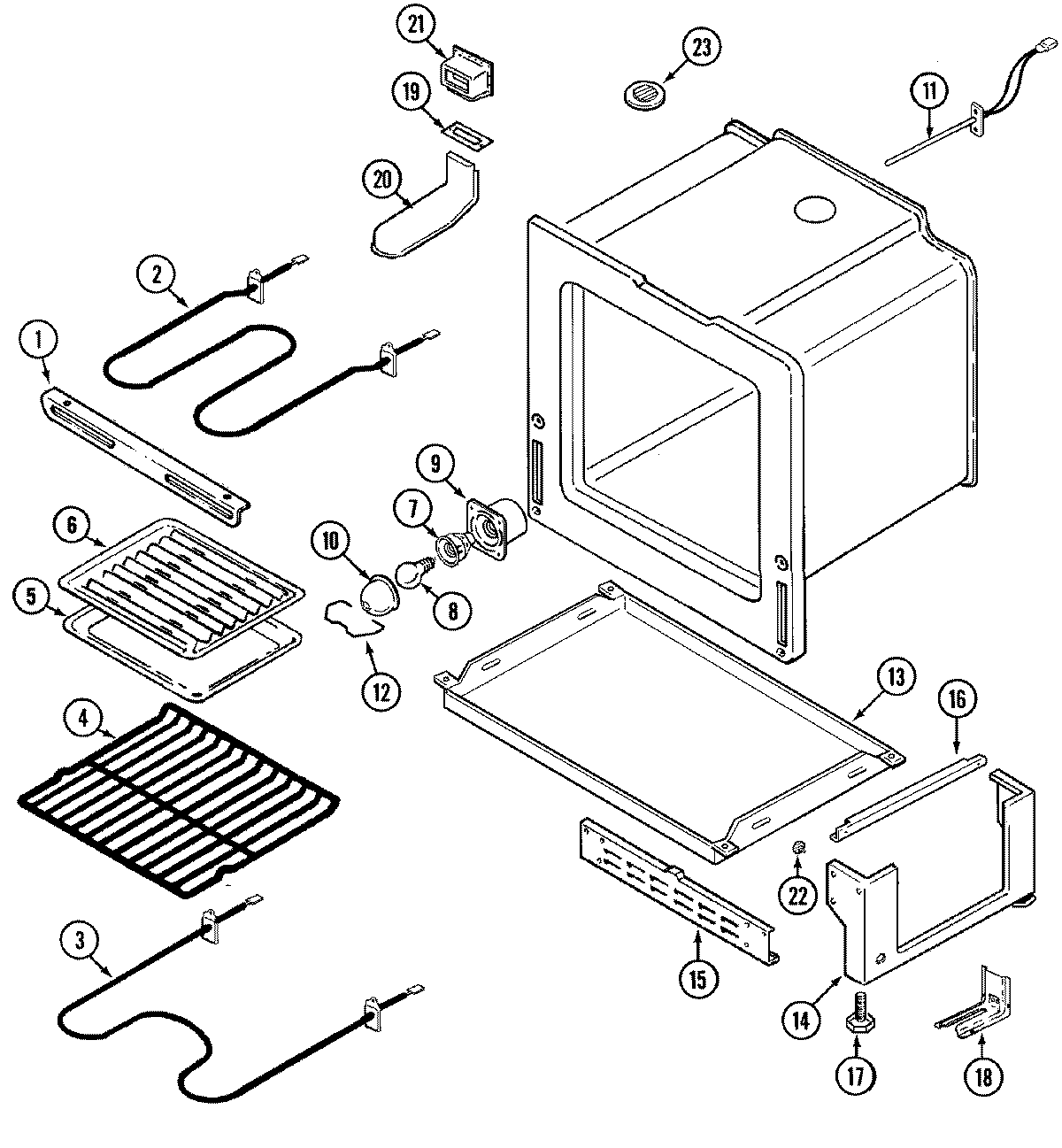

CER3740AAT 04 – OVEN/BASE

Products

Position	Product
1	SUPPORT, BROIL ELEMENT
2	WPW10310249 Whirlpool Broil Element
3	WP74010750 Whirlpool Oven Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003387
8	MAY Y707319
9	MAY 74003388
10	MAY 74003389
11	MAY 74004471
12	MAY 74003391
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	MAY 74003242
13	MAY 8312P058-60
14	MAY 74003393
15	MAY 4020F001-80
16	RUNNER, DRAWER
17	W11665456 Whirlpool Range Level Foot
18	MAY 74002311
18	WP7101P485-60 Whirlpool Anchor Tip
19	MAY 74003285
20	MAY 74003394
21	SCREW
21	MAY 3826W014-45
22	MAY 74003566
22	WP488130 Whirlpool Air Conditioner Nut
23	MAY 74003633
