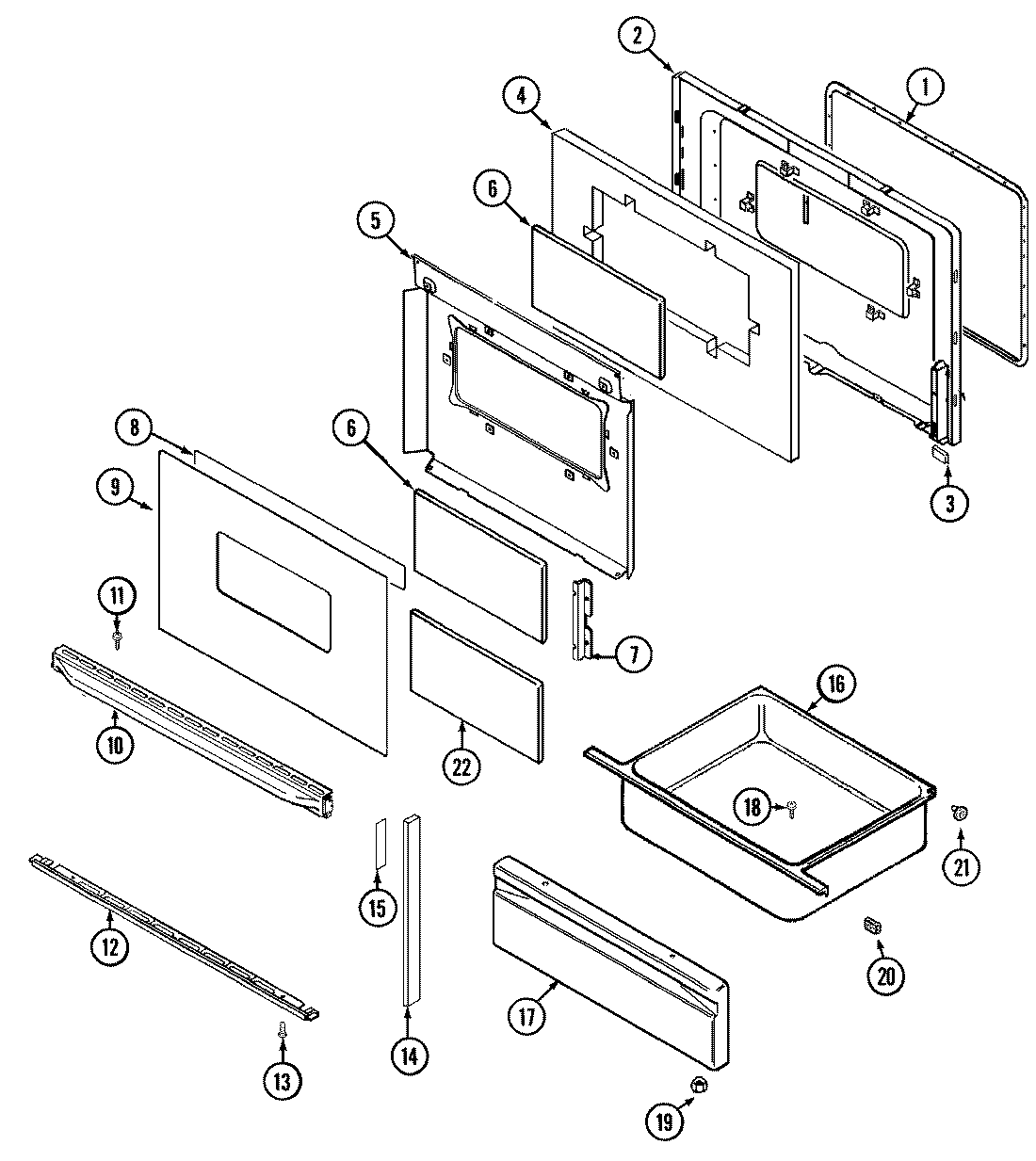

CER3760ACQ 02 – DOOR/DRAWER

CER3760ACQ 02 – DOOR/DRAWER

Written by

in

CER3760ACQ 02 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2LINING, OVEN DOOR
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8MAY 8270P078-60
9MAY 74005041
10MAY 74005042
11WP74009541 Whirlpool Screw Assembly
12MAY 74005043
13SCREW
14MAY 74005044
15MAY 8270P093-60
16MAY 74003618
17MAY 74005055
18WP7101P072-60 Whirlpool Screw
19WPW10131078 Whirlpool Nut Assembly
20WP854334 Whirlpool Air Conditioner Sealing Strip
21MAY 74003566
21WP488130 Whirlpool Air Conditioner Nut
22MAY 74002002
