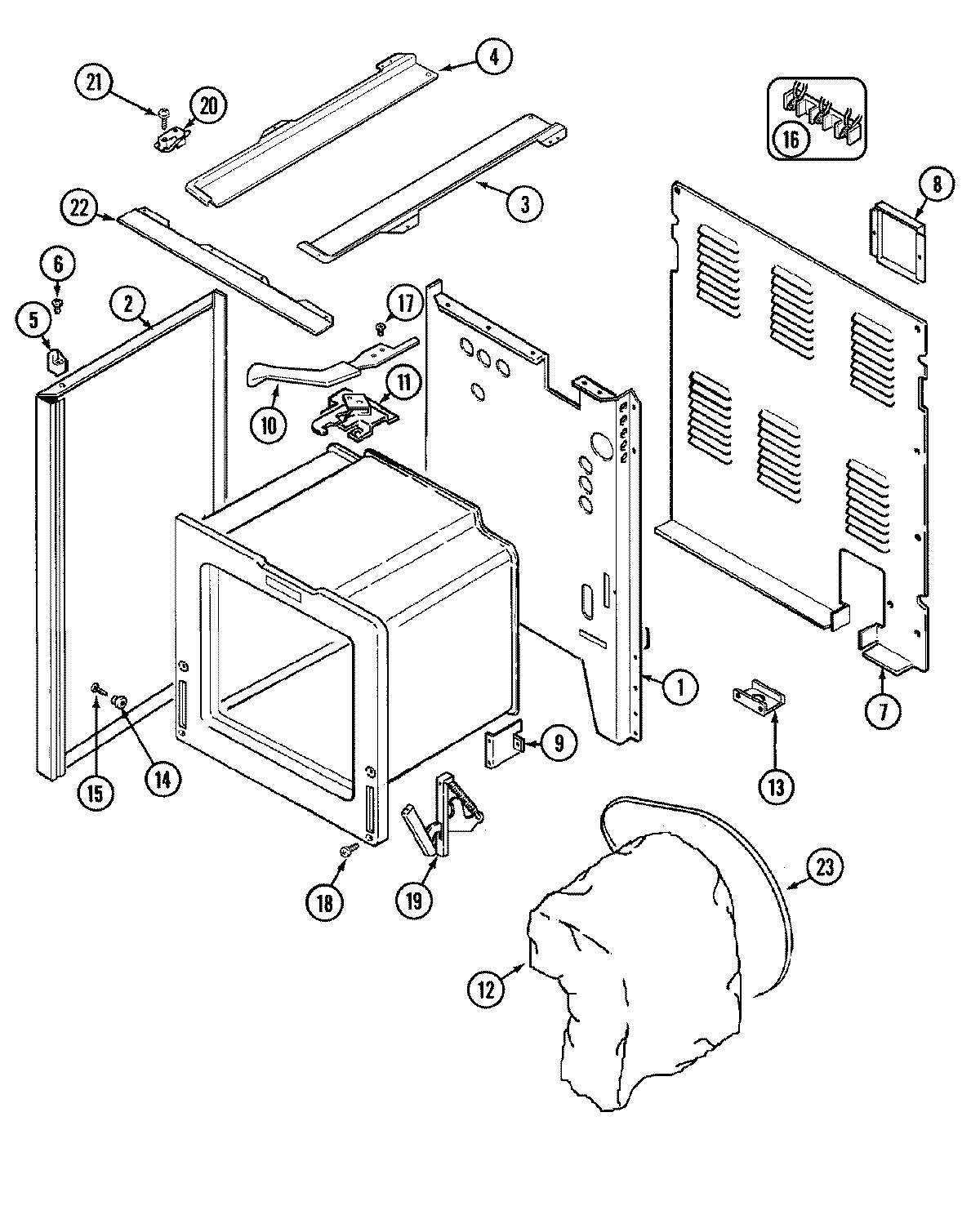

CER3760AGW 01 – BODY

Products

Position	Product
1	MAY 74001772
1	MAY 74006322
1	GROMMET
2	MAY 8270P078-60
2	MAY 74003236
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 74003241
8	MAY 4005F427-51
9	SUPPORT,OVEN REAR
10	MAY 74002973
11	MAY 74001084
11	W10828565 Whirlpool Screw
11	MAY 74003380
11	MAY 74003139
12	MAY 74003381
12	WP74010942 Whirlpool Insulation
13	MAY 3605F174-51
14	MAY 8004P024-60
15	MAY 74001449
15	W11693756 Whirlpool Screw Assembly
16	W10190166 Whirlpool Service Bracket
16	WPW10245259 Whirlpool Terminal Block
16	WP7103P027-60 Whirlpool Nut
16	SCREW (10ABX1.0-ZN)
17	SCREW, LEVER
18	SCREW (10-24X5/16-NI)
19	WP74011140 Whirlpool Oven Hinge
20	MAY 74004031
20	MAY 74003383
21	MAY 7101P330-60
22	MAY 74003384
22	SCREW
23	MAY 74003385
