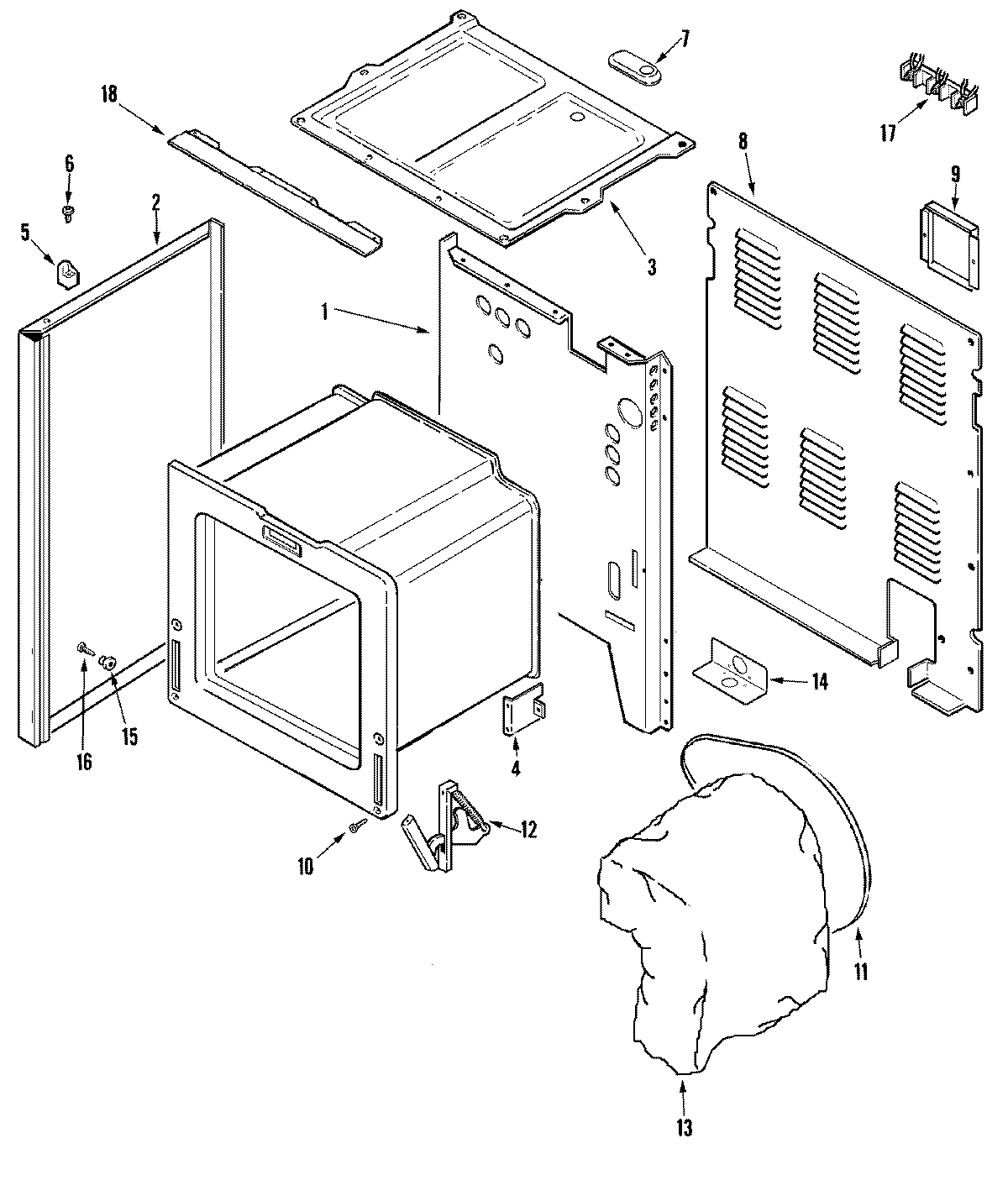

CER4351AGW 01 – BODY

Products

PositionProduct
1MAY 74002334
1MAY 74011304
2MAY 74003236
3WP74003976 Whirlpool Screw
3MAY 74011035
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
7COVER, VENT
8MAY 74009744
9MAY 74010256
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 74003112
13MAY 4804F039-60
14SCREW
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16MAY 74007476
16W11693756 Whirlpool Screw Assembly
17WP7103P027-60 Whirlpool Nut
17MAY 7401P038-60
17SCREW (10ABX1.0-ZN)
17MAY 7111P020-60
17MAY 74011033
18MAY 74003384
18MAY 71001394
