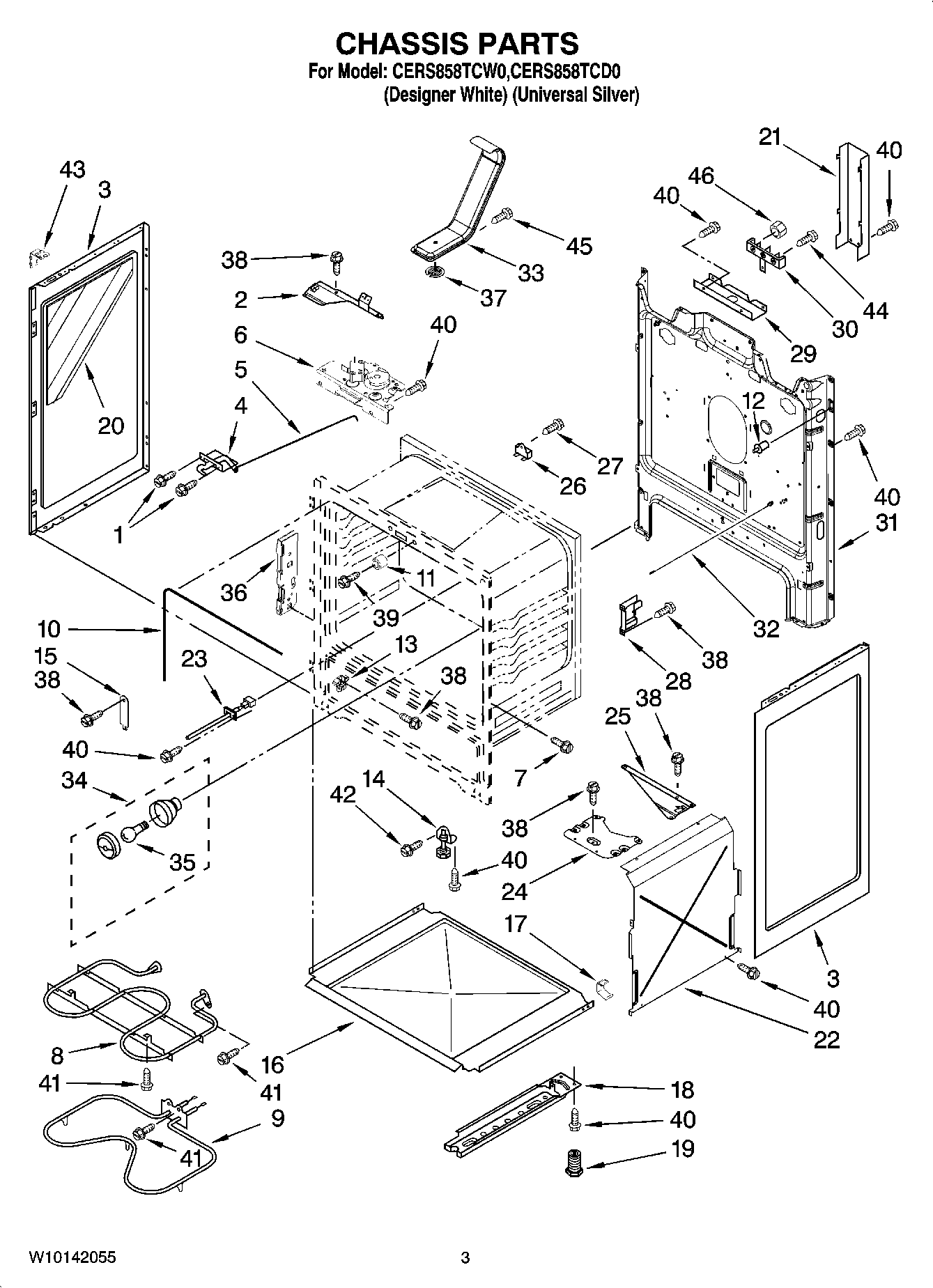

CERS858TCD0 03 – CHASSIS PARTSadmin2025-04-26T08:58:44+00:00CERS858TCD0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| 1 | SCREW |
| 2 | MAY 8273905 |
| 3 | Panel, Side (2) (White) |
| 3 | MAY 8053832 |
| 4 | ASSEMBLY, DOOR LATCH (FRONT) |
| 5 | ROD, LATCH |
| 6 | ASSEMBLY, LATCH (REAR) |
| 7 | SCREW |
| 8 | ELEMENT, BROIL |
| 9 | Element, Bake (Hidden) |
| 10 | MAY 8522416 |
| 11 | SPACER, DOOR |
| 12 | Switch, Door |
| 13 | Glide, Drawer |
| 14 | MAY 3196037 |
| 15 | Clip,Door Mntg(2) |
| 16 | RETAINER, INSULATION |
| 17 | MAY 3196576 |
| 18 | RAIL, BASE |
| 19 | FOOT, LEVELING |
| 20 | MAY 9761490 |
| 21 | MAY 9758283 |
| 22 | RETAINER, INSULATION |
| 23 | MAY 8273902 |
| 24 | MAY 3195736 |
| 25 | MAY 3195987 |
| 26 | FUSE, THERMAL |
| 27 | SCREW |
| 28 | MAY 3186116 |
| 29 | BRACKET, SERVICE |
| 30 | MAY 9756918 |
| 31 | MAY 8274034 |
| 32 | ROD, DOOR SWITCH |
| 33 | Flue |
| 34 | MAY 3196701 |
| 35 | BULB, OVEN LIGHT |
| 36 | BRKT - MOUNTING |
| 37 | MAY 9761301 |
| 38 | SCREW |
| 39 | Screw (Black) |
| 40 | SCREW |
| 41 | SCREW |
| 42 | Screw |
| 43 | Clip, Mounting |
| 44 | SCREW |
| 45 | MAY 3196566 |
| 46 | MAY 8272616 |
| 46 | SCREW |
| 46 | INSULATION, BACK |
| 46 | MAY 8272613 |
