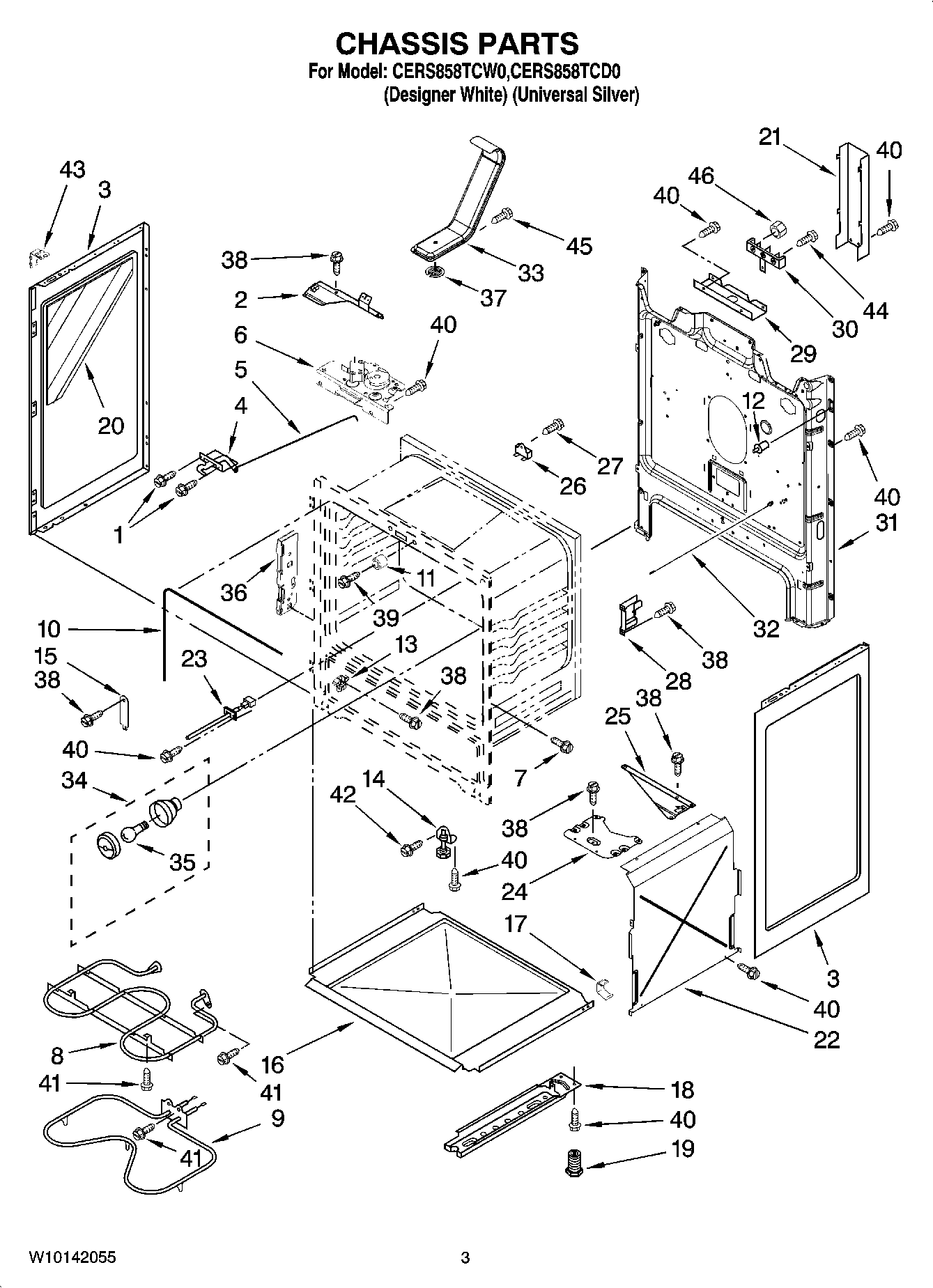

CERS858TCW0 03 – CHASSIS PARTS

Products

Position	Product
1	SCREW
2	MAY 8273905
3	Panel, Side (2) (White)
3	MAY 8053832
4	ASSEMBLY, DOOR LATCH (FRONT)
5	ROD, LATCH
6	ASSEMBLY, LATCH (REAR)
7	SCREW
8	ELEMENT, BROIL
9	Element, Bake (Hidden)
10	MAY 8522416
11	SPACER, DOOR
12	Switch, Door
13	Glide, Drawer
14	MAY 3196037
15	Clip,Door Mntg(2)
16	RETAINER, INSULATION
17	MAY 3196576
18	RAIL, BASE
19	FOOT, LEVELING
20	MAY 9761490
21	MAY 9758283
22	RETAINER, INSULATION
23	MAY 8273902
24	MAY 3195736
25	MAY 3195987
26	FUSE, THERMAL
27	SCREW
28	MAY 3186116
29	BRACKET, SERVICE
30	MAY 9756918
31	MAY 8274034
32	ROD, DOOR SWITCH
33	Flue
34	MAY 3196701
35	BULB, OVEN LIGHT
36	BRKT – MOUNTING
37	MAY 9761301
38	SCREW
39	Screw (Black)
40	SCREW
41	SCREW
42	Screw
43	Clip, Mounting
44	SCREW
45	MAY 3196566
46	MAY 8272616
46	SCREW
46	INSULATION, BACK
46	MAY 8272613
