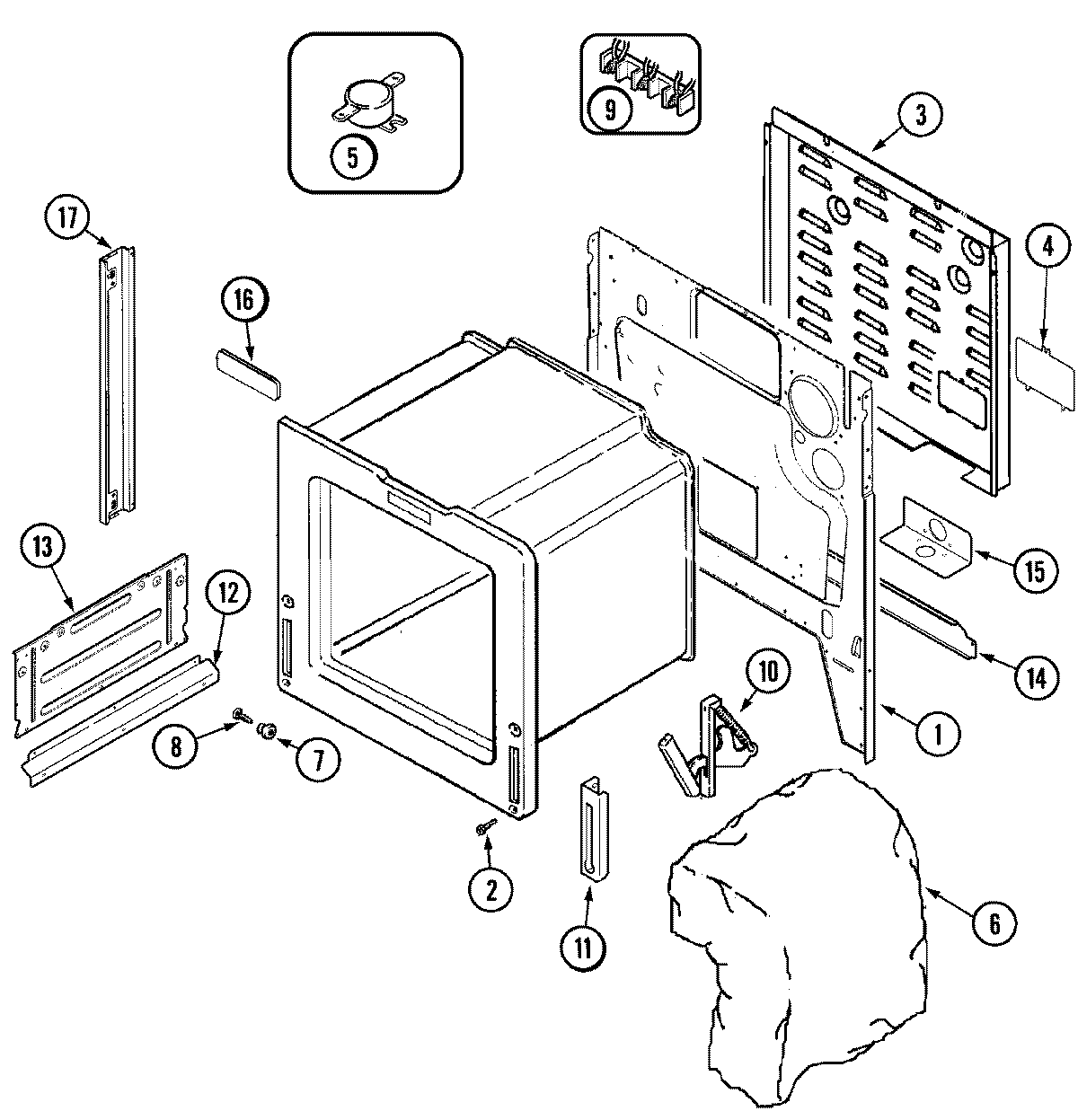

CES1110AAH 01 – BODY

Products

Position	Product
1	MAY 74004174
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
3	MAY 74004183
4	COVER, TERMINAL BLOCK
4	MAY 74004184
5	WP71001844 Whirlpool Thermostat
6	MAY 74003112
6	MAY 4804F039-60
6	WP74010942 Whirlpool Insulation
7	MAY 8004P024-60
8	MAY 74001449
8	W11693756 Whirlpool Screw Assembly
9	WPW10245259 Whirlpool Terminal Block
10	W10876639 Whirlpool Door Hinge Assembly
11	SCREW
11	MAY 74004173
12	MAY 74004176
13	MAY 74004177
14	MAY 74004175
15	W10190166 Whirlpool Service Bracket
16	PLUG, LOCK SLOT
17	MAY 74004182
