CES1110AAH 02 – DOOR/DRAWER

CES1110AAH 02 – DOOR/DRAWER

Written by

in

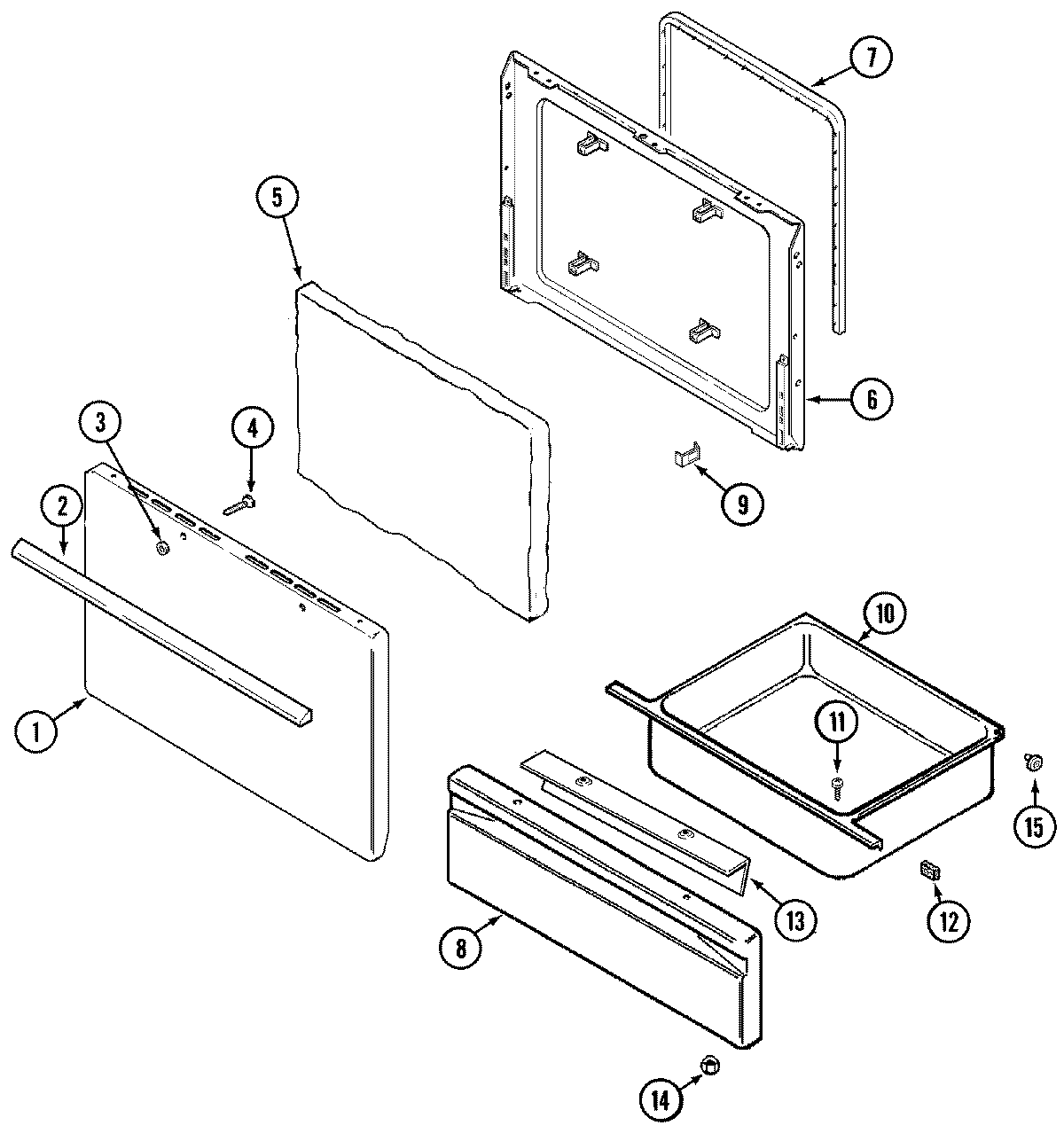

CES1110AAH 02 – DOOR/DRAWER

Products

PositionProduct
1PANEL, DOOR (WHT)
1SCREW
2WP2411F013-70 Whirlpool Door Handle
3MAY 8010P084-60
4WP3387230 Whirlpool Screw
5MAY 4804F050-60
6MAY 74003240
7WP7212P043-60 Whirlpool Oven Door Seal Gasket
8PANEL, DRAWER (WHT)
9CLIP, DOOR
10MAY 71003042
11WP7101P072-60 Whirlpool Screw
12WP854334 Whirlpool Air Conditioner Sealing Strip
13LINING, DRAWER PANEL
14WPW10131078 Whirlpool Nut Assembly
15MAY 74003566
15WP488130 Whirlpool Air Conditioner Nut
