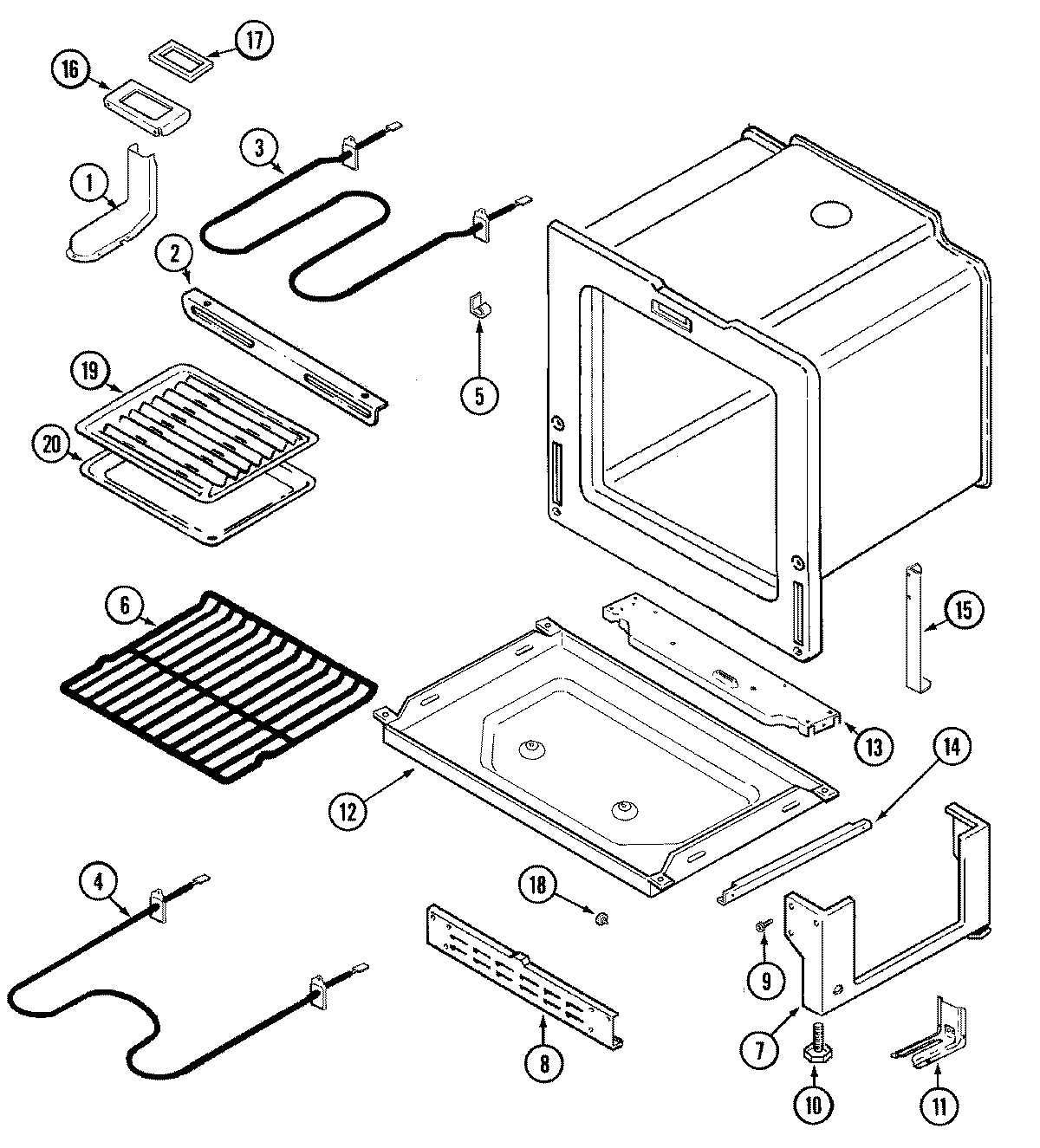

CES1110AAH 03 – OVEN/BASE

Products

Position	Product
1	MAY 74004170
2	SUPPORT, BROIL ELEMENT
3	WPW10310249 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	CLIP, THERMOSTAT BULB
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003405
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	MAY 74002311
11	WP7101P485-60 Whirlpool Anchor Tip
12	MAY 74004169
13	MAY 74004167
14	RUNNER, DRAWER
15	MAY 74004171
16	MAY 74004178
16	SCREW
17	MAY 74004179
18	WP74004078 Whirlpool Door Roller
18	WP488130 Whirlpool Air Conditioner Nut
18	MAY 74004079
19	MAY Y3413F01619
20	MAY Y3401F02019
