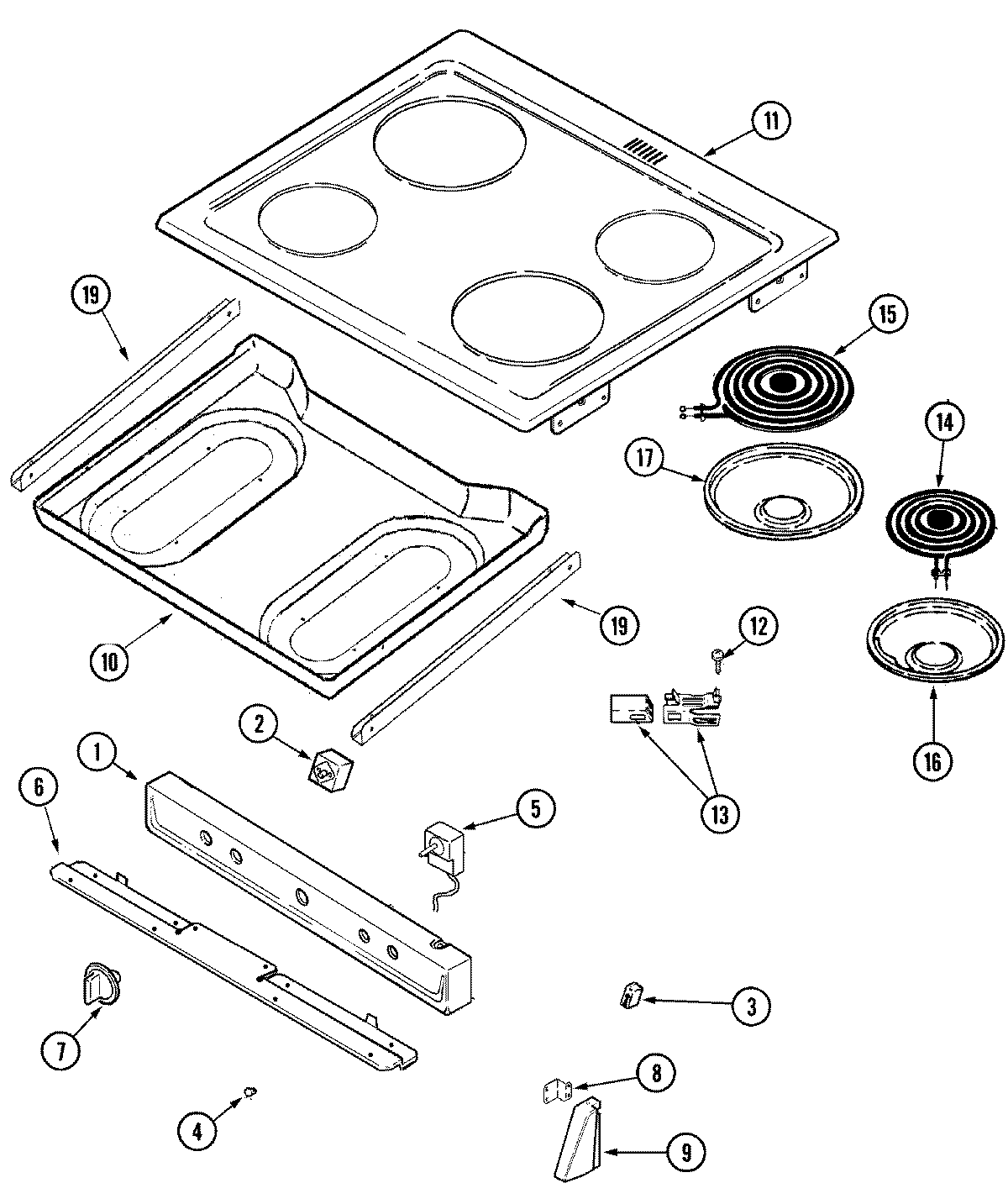

CES1110AAH 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004250
NI	MAY 74004276
NI	MAY 12001323
NI	MAY 16010161
1	MAY 74004275
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 74003409
6	MAY 74004185
6	SCREW (8BX3/8-NI)
7	MAY 74003427
8	MAY 74005671
8	MAY 74004186
9	MAY 74004602
9	MAY 74004820
9	MAY 74004819
9	SCREW (8ABX1/2``-BLK)
9	MAY 74004196
9	MAY 74004197
9	MAY 74004601
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 74001449
10	MAY 74004251
10	MAY 74006046
10	MAY 7103P125-60
11	MAY 74004248
11	MAY 74007600
12	MAY 7118P013-60
13	MAY 1430306K
14	WPW10345407 Whirlpool Surface Element
14	WPY04000036 Whirlpool Surface Element
15	WP9761346 Whirlpool Stove Surface Burner Element
15	WPY04000035 Whirlpool Surface Element
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
17	DRIP BOWL 8" W/HOLE CHROME
19	SCREW
19	MAY 74005822
