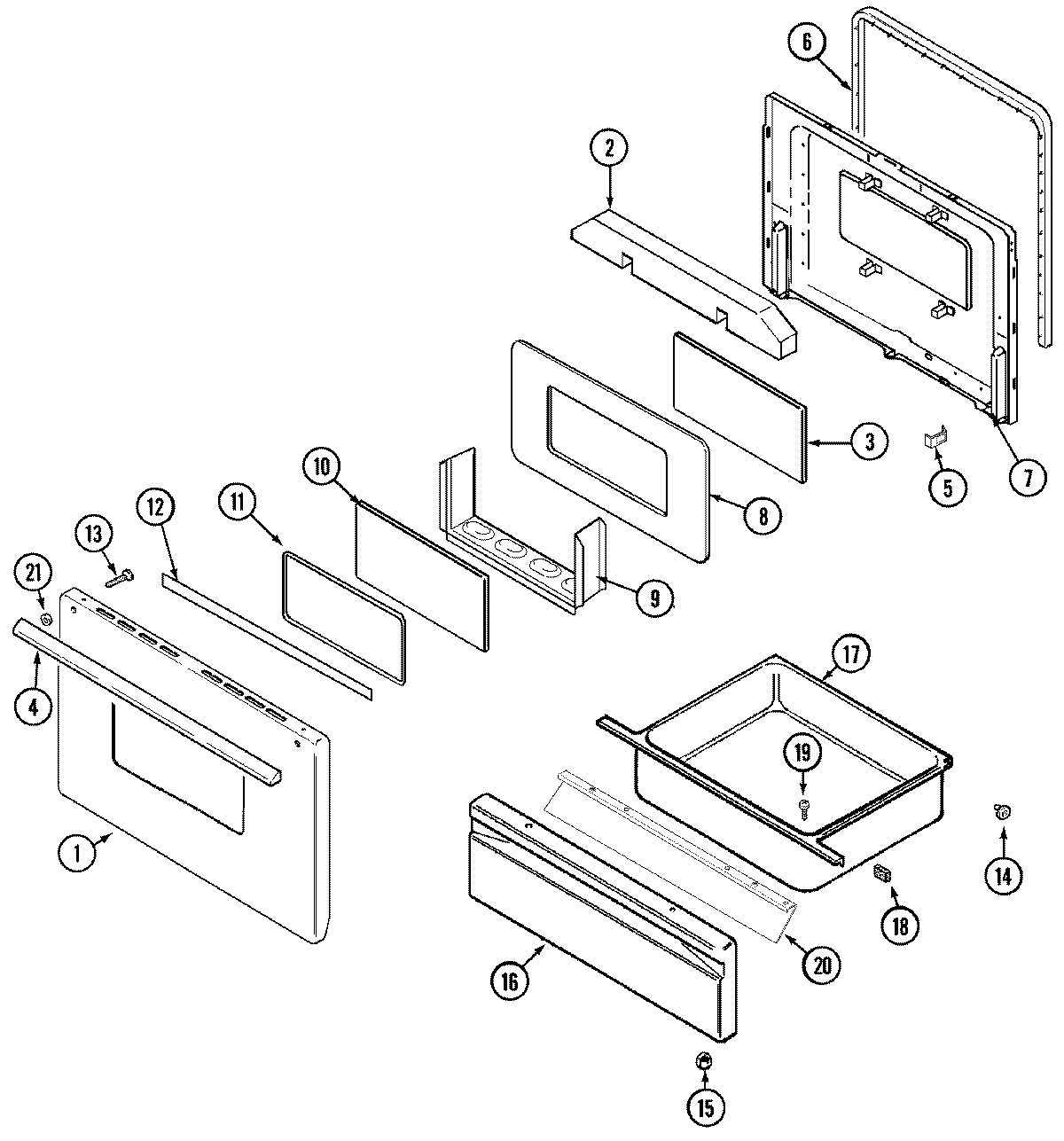

CES1350AAH 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 2401F121-71
1	MAY 74005223
2	MAY 74002458
2	MAY 74001842
3	MAY 74002459
3	MAY 74009281
4	WP2411F013-70 Whirlpool Door Handle
5	CLIP, DOOR
6	WP7212P043-60 Whirlpool Oven Door Seal Gasket
7	MAY 74009280
7	MAY 74003248
8	MAY 74001843
8	MAY 74002461
8	MAY 7101P209-60
9	MAY 74002462
9	MAY 74003048
10	MAY 74001072
10	MAY 74002463
11	MAY 7201P017-60
12	TAPE, FOIL (3“ WIDE)
13	WP3387230 Whirlpool Screw
14	WP488130 Whirlpool Air Conditioner Nut
14	MAY 74003566
15	WPW10131078 Whirlpool Nut Assembly
16	PANEL, DRAWER (WHT)
17	MAY 71003042
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	WP7101P072-60 Whirlpool Screw
20	LINING, DRAWER PANEL
20	SCREW
21	MAY 8010P084-60
