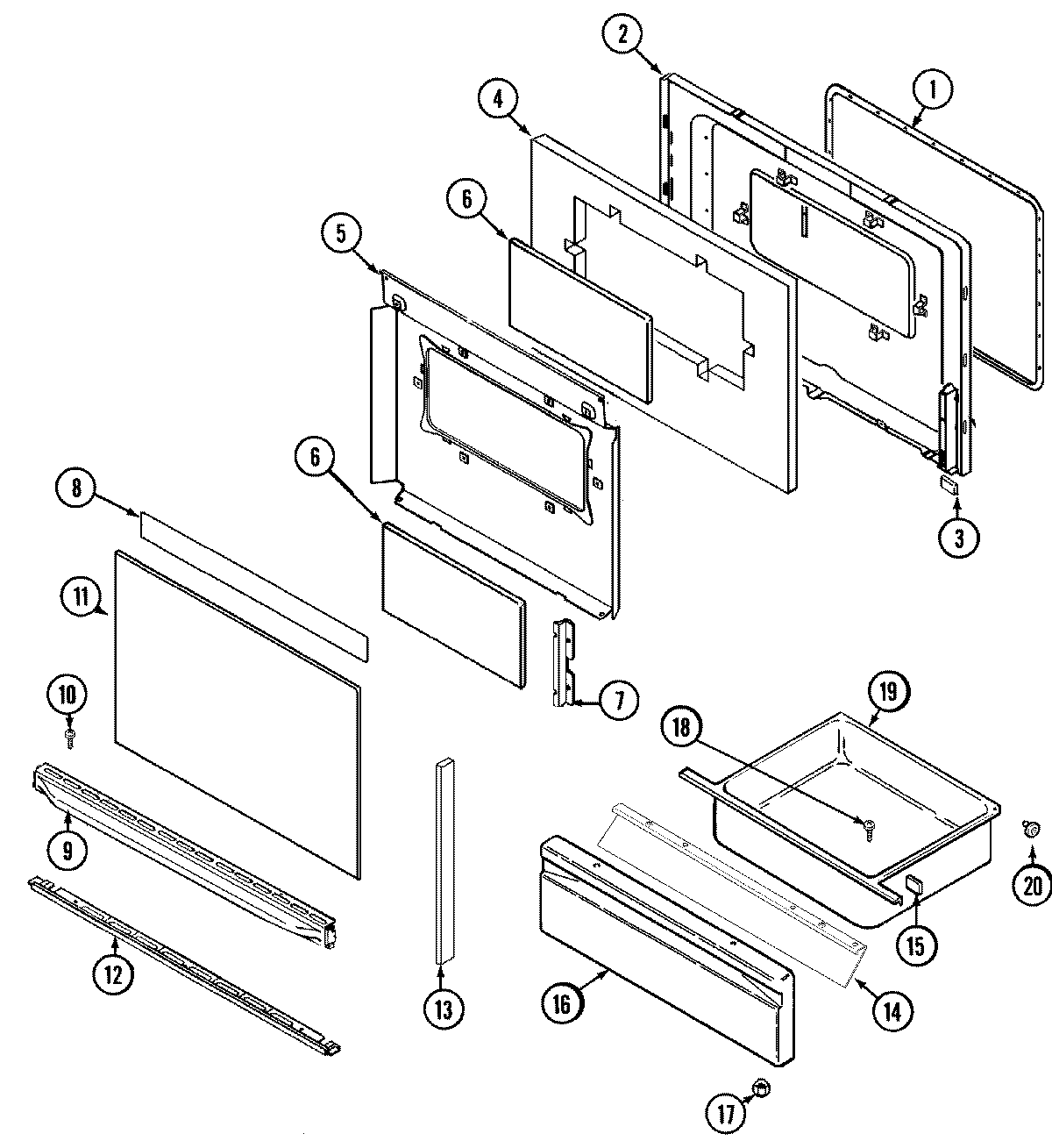

CES3540AAC 02 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 74003244
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74003429
11MAY 74003431
12SCREW
12MAY 74003432
13MAY 74003430
13MAY 74004075
14SCREW (8ABX1/2“-BLK)
14LINING, DRAWER PANEL
15MAY 8010P085-60
16PANEL, DRAWER (BLK)
17WPW10131078 Whirlpool Nut Assembly
19MAY 71003042
20MAY 74003566
20WP488130 Whirlpool Air Conditioner Nut
