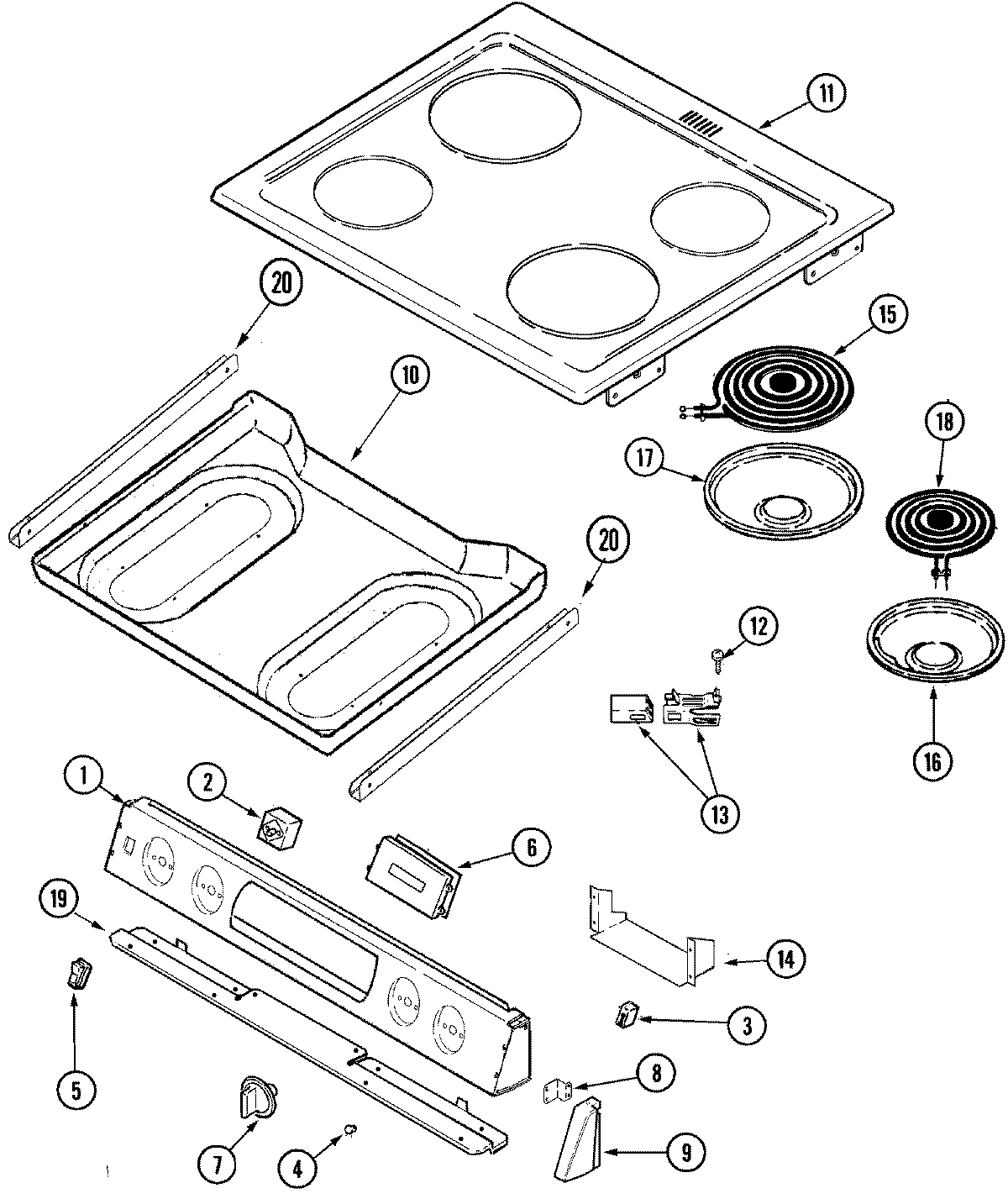

CES3540AAC 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004250
NI	MAY 74004247
NI	MAY 16010161
NI	MAY 12001323
1	MAY 74004242
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	SCREW
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 74003363
6	MAY 74004101
6	MAY 74004254
7	MAY 74003427
8	MAY 74005671
8	MAY 74004186
9	MAY 74004820
9	MAY 74004197
9	MAY 74004196
9	MAY 74004601
9	MAY 74004602
9	MAY 74004819
10	MAY 74006046
10	MAY 74001449
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 74004251
10	MAY 7103P125-60
11	MAY 74004252
12	MAY 7118P013-60
13	MAY 1430306K
14	MAY 74004246
15	WPW10345410 Whirlpool Surface Element
15	MAY 74004089
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
17	DRIP BOWL 8" W/HOLE CHROME
18	MAY 74004090
18	WPW10259868 Whirlpool Surface Heating Element
19	SCREW (8BX3/8-NI)
19	MAY 74004185
20	SCREW
20	MAY 74005822
