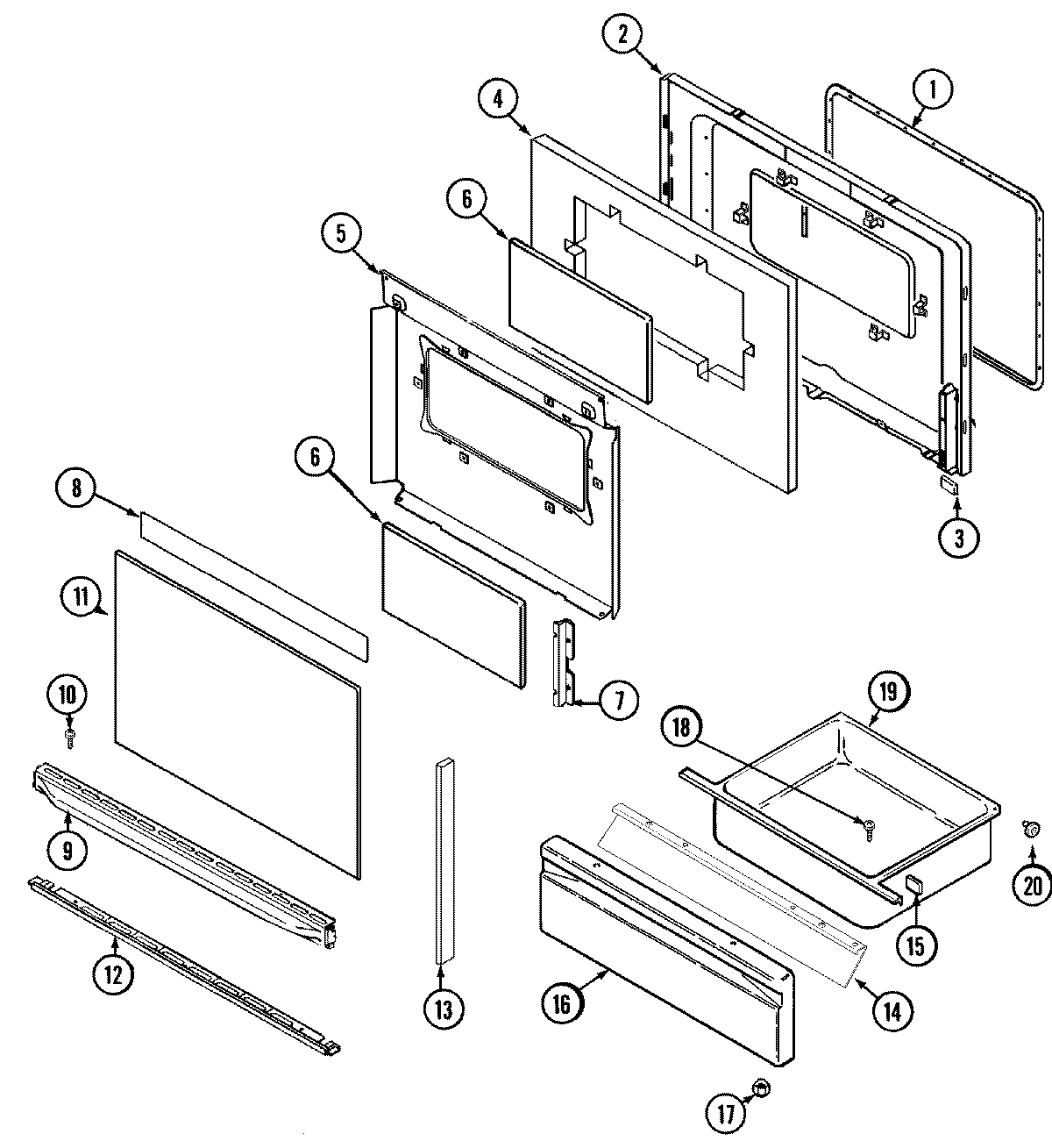

CES3540AAW 02 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 74003244
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3“ WIDE)
9	MAY 74003396
9	WP98008544 Whirlpool Screw Assembly
11	MAY 74003395
12	SCREW
12	MAY 74003397
13	MAY 74003398
13	MAY 74004075
14	SCREW (8ABX1/2“-BLK)
14	LINING, DRAWER PANEL
15	MAY 8010P085-60
16	PANEL, DRAWER (WHT)
17	WPW10131078 Whirlpool Nut Assembly
19	MAY 71003042
20	MAY 74003566
20	WP488130 Whirlpool Air Conditioner Nut
