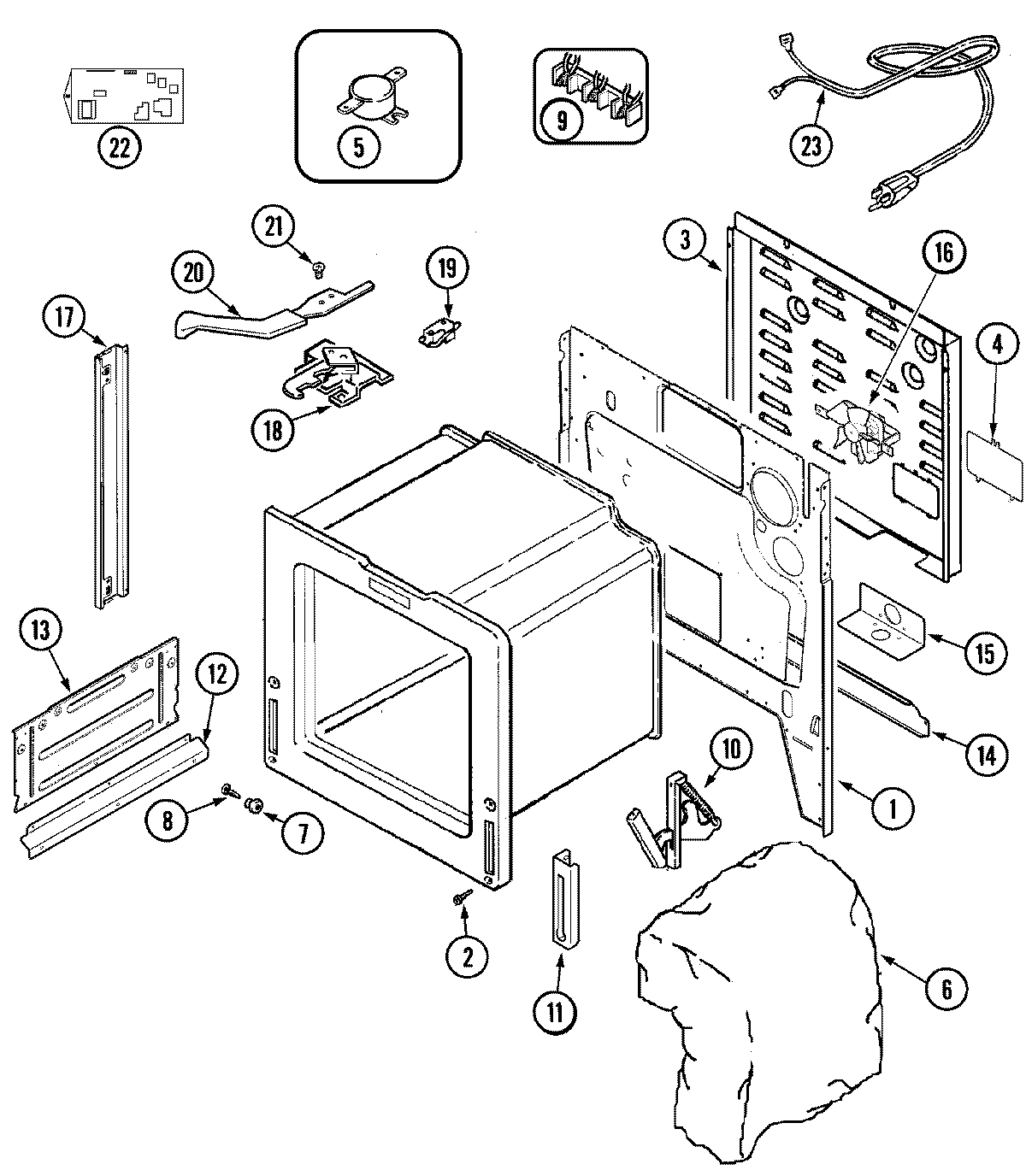

CES3540ACC 01 – BODY

Products

Position	Product
1	MAY 74004174
2	SCREW (10-24X5/16-NI)
3	MAY 74005265
3	MAY 74004183
4	COVER, TERMINAL BLOCK
4	MAY 74004184
5	WP71001844 Whirlpool Thermostat
6	MAY 74003381
6	WP74010942 Whirlpool Insulation
6	MAY 74003503
7	MAY 8004P024-60
8	MAY 74001449
8	W11693756 Whirlpool Screw Assembly
9	WPW10245259 Whirlpool Terminal Block
10	WP74011140 Whirlpool Oven Hinge
11	MAY 74004173
12	MAY 74004176
13	MAY 74004177
14	MAY 74004175
15	W10190166 Whirlpool Service Bracket
16	MAY 71001851
16	SCREW
16	MAY 74004947
17	MAY 74004216
18	MAY 74001084
18	MAY 74003380
18	MAY 12001943
18	MAY 74003139
19	MAY 74003630
19	MAY 7101P330-60
19	MAY 74003383
20	LEVER, LATCH (BLK)
21	SCREW, LEVER
22	WP74003482 Whirlpool Auxiliary Relay
23	MAY 7402P050-60
