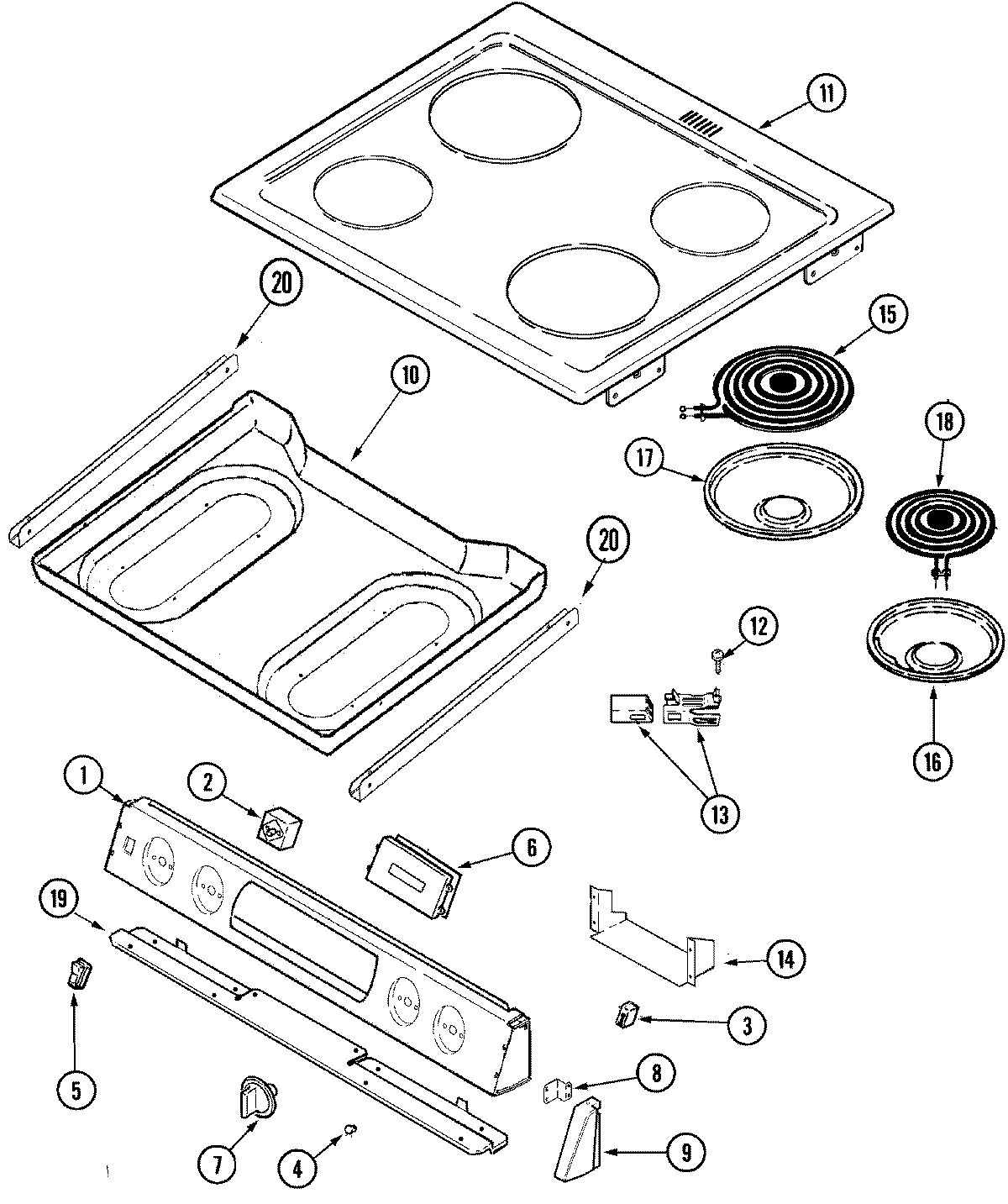

CES3540ACC 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 12001323
NI	MAY 74004805
NI	MAY 74004250
NI	MAY 74004247
NI	MAY 74004786
1	MAY 74004242
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	MAY 74003363
6	MAY 74004784
7	MAY 74003427
8	MAY 74004186
8	MAY 74005671
9	MAY 74004820
9	MAY 74004819
9	MAY 74004602
9	MAY 74004601
10	MAY 7103P125-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 74001449
10	MAY 74004251
10	MAY 74006046
11	MAY 74004252
12	MAY 7118P013-60
13	MAY 1430306K
14	MAY 74004246
15	MAY 74004089
15	WPW10345410 Whirlpool Surface Element
16	WPW10196406 Whirlpool 6" Chrome Drip Bowl
17	DRIP BOWL 8" W/HOLE CHROME
18	WPW10259868 Whirlpool Surface Heating Element
18	MAY 74004090
19	SUPPORT, MANIFOLD PANEL
19	SCREW (8BX3/8-NI)
20	SCREW
20	MAY 74005822
