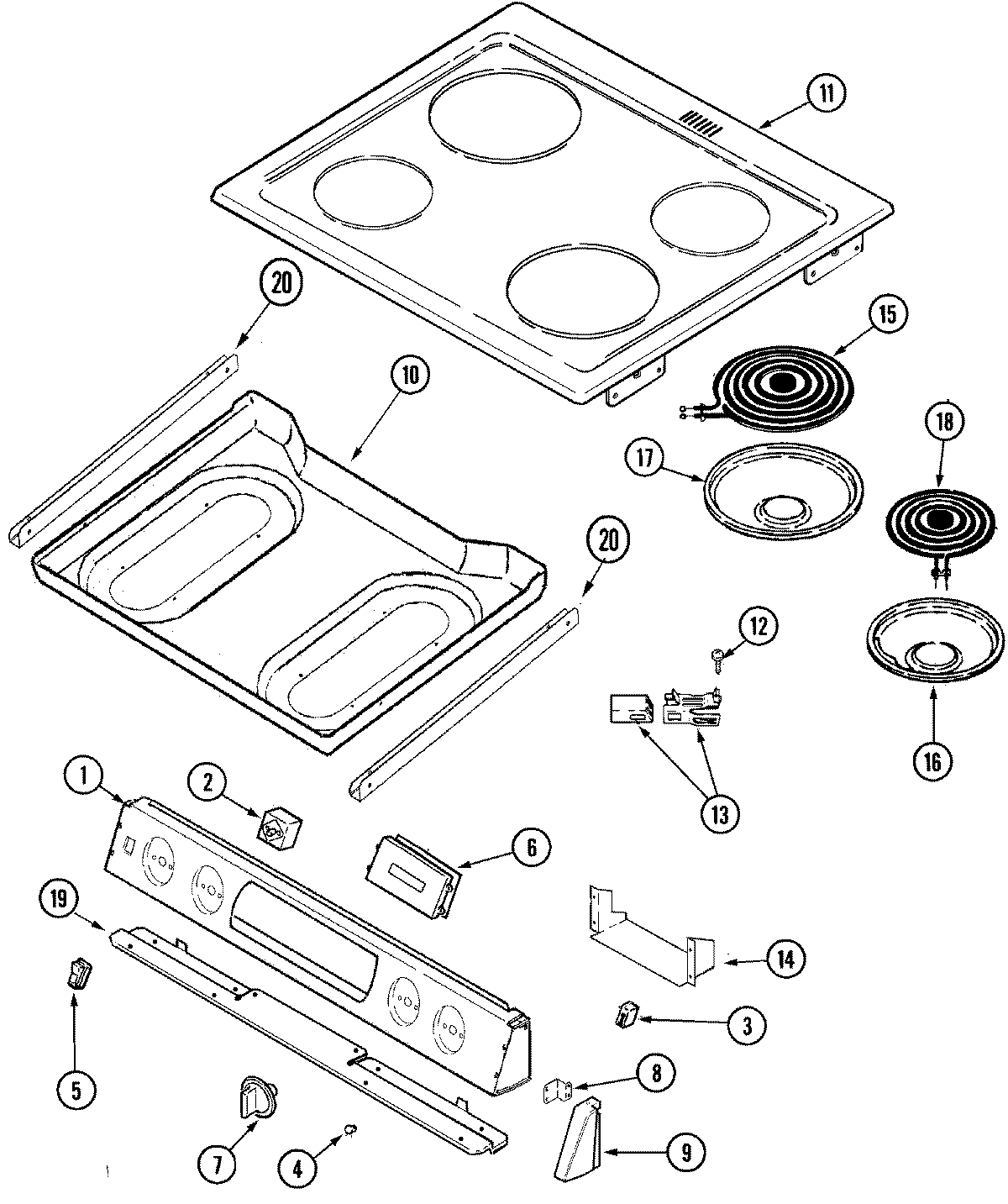

CES3540ACW 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74004805
NI	MAY 74004250
NI	MAY 12001323
NI	MAY 74004247
NI	MAY 74004786
1	MAY 74004240
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008717 Whirlpool White Rocker Switch
6	MAY 74004783
7	WP74003373 Whirlpool Knob Switch
8	MAY 74005671
8	MAY 74004186
9	MAY 74004604
9	MAY 74004603
9	CAP, END (WHT-RT)
9	CAP, END (WHT-LT)
10	MAY 7103P125-60
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 74001449
10	MAY 74004251
10	MAY 74006046
11	MAY 74004248
11	MAY 74007600
12	MAY 7118P013-60
13	MAY 1430306K
14	MAY 74004246
15	MAY 74004089
15	WPW10345410 Whirlpool Surface Element
16	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18	MAY 74004090
18	WPW10259868 Whirlpool Surface Heating Element
19	SUPPORT, MANIFOLD PANEL
19	SCREW (8BX3/8-NI)
20	MAY 74005822
20	SCREW
