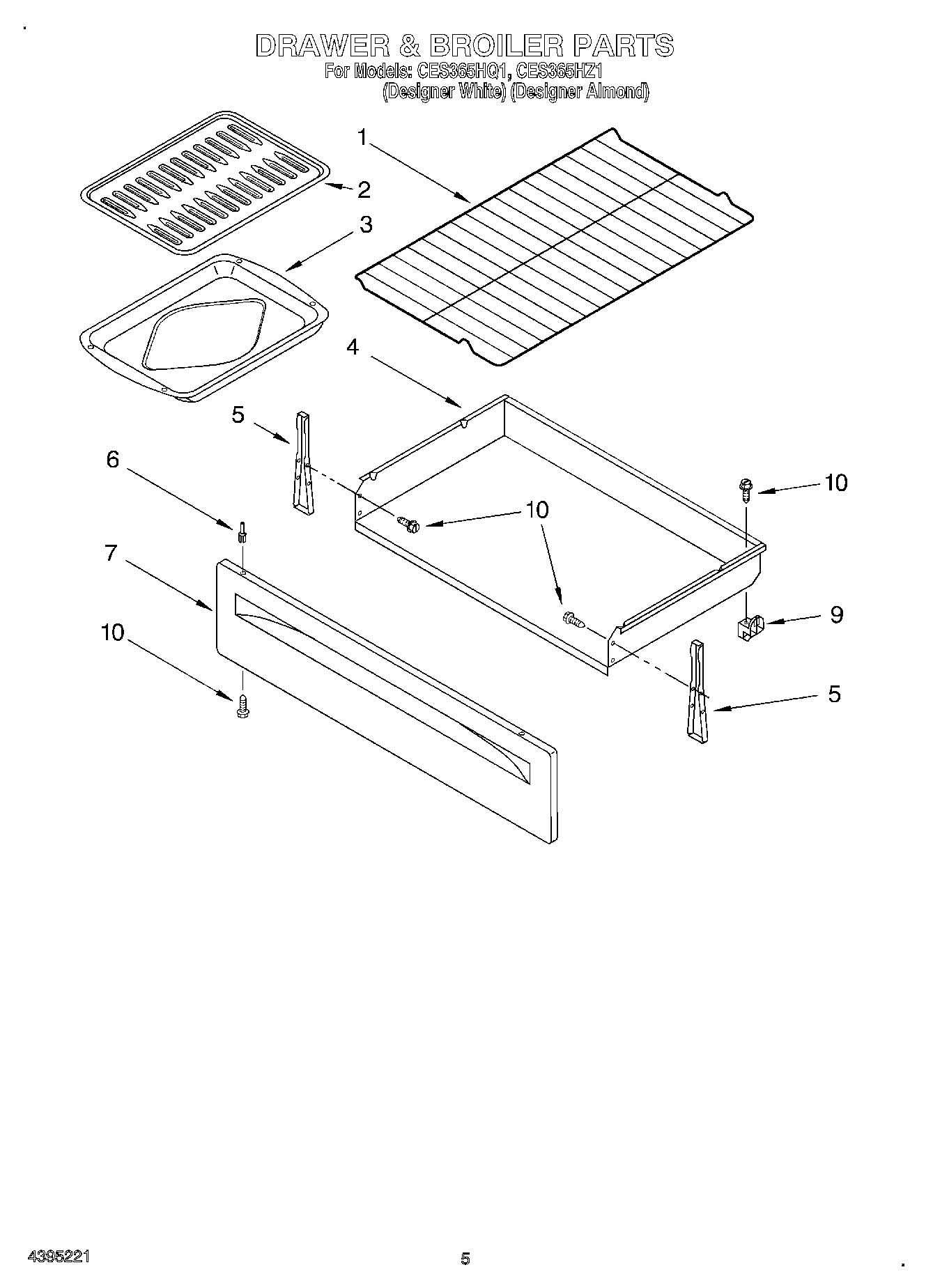

CES365HQ1 04 – DRAWER AND BROILER

CES365HQ1 04 – DRAWER AND BROILER

Written by

in

CES365HQ1 04 – DRAWER AND BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
7W11219377 Whirlpool Drawer Panel
7Panel, Drawer Front (Almond)
9WP8053334 Whirlpool Drawer Glide
10WP3400832 Whirlpool Screw
