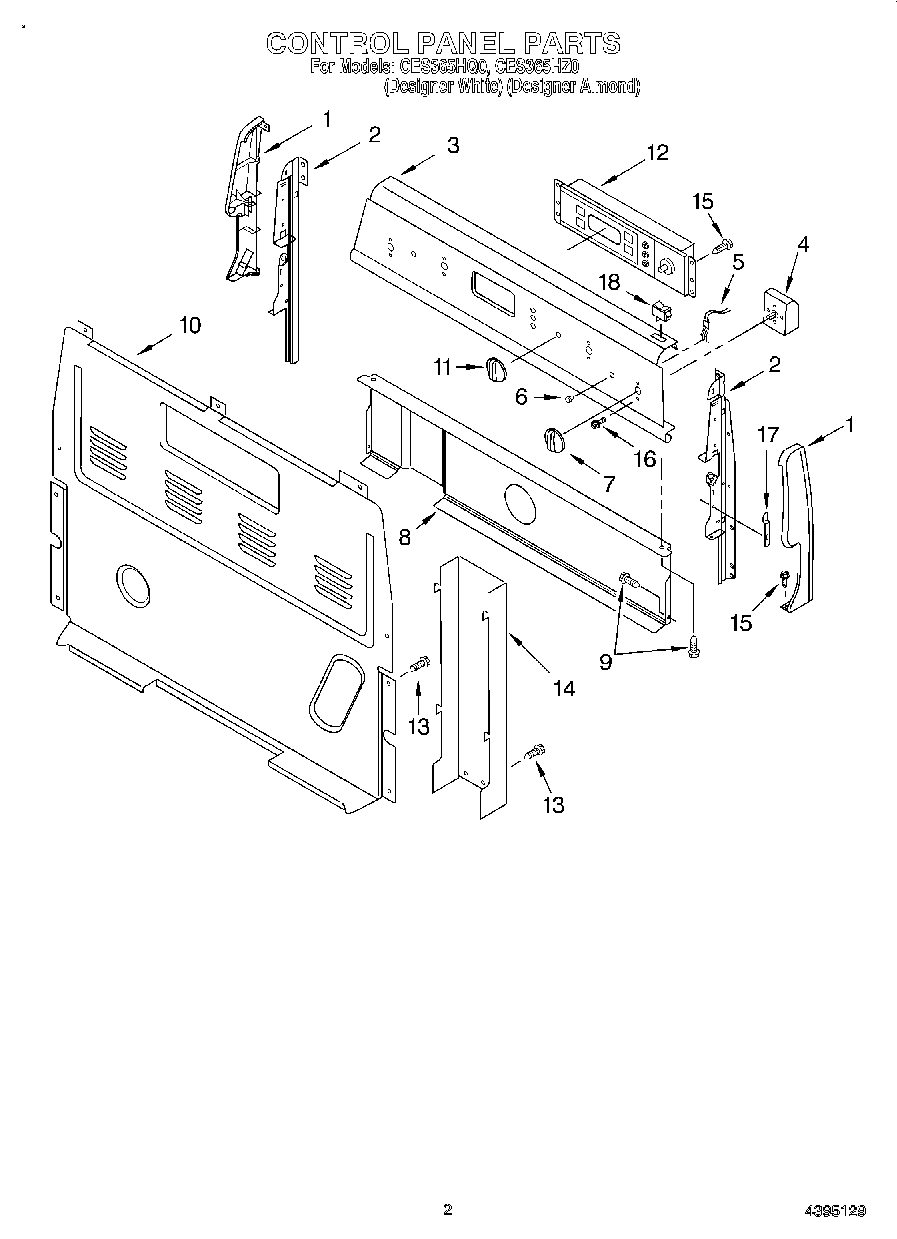

CES365HZ0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Almond Right Hand)
1	Endcap (Almond Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (White)
3	Panel, Backguard (Almond)
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
7	Knob, Infinite (4) (Almond)
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	Knob, 150 Control (Almond)
11	Knob, 150 Control (White)
12	Control, Range (Almond)
12	Control-Range (White)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
18	Switch, Rocker (Almond)
18	3149360 Whirlpool Light Switch
