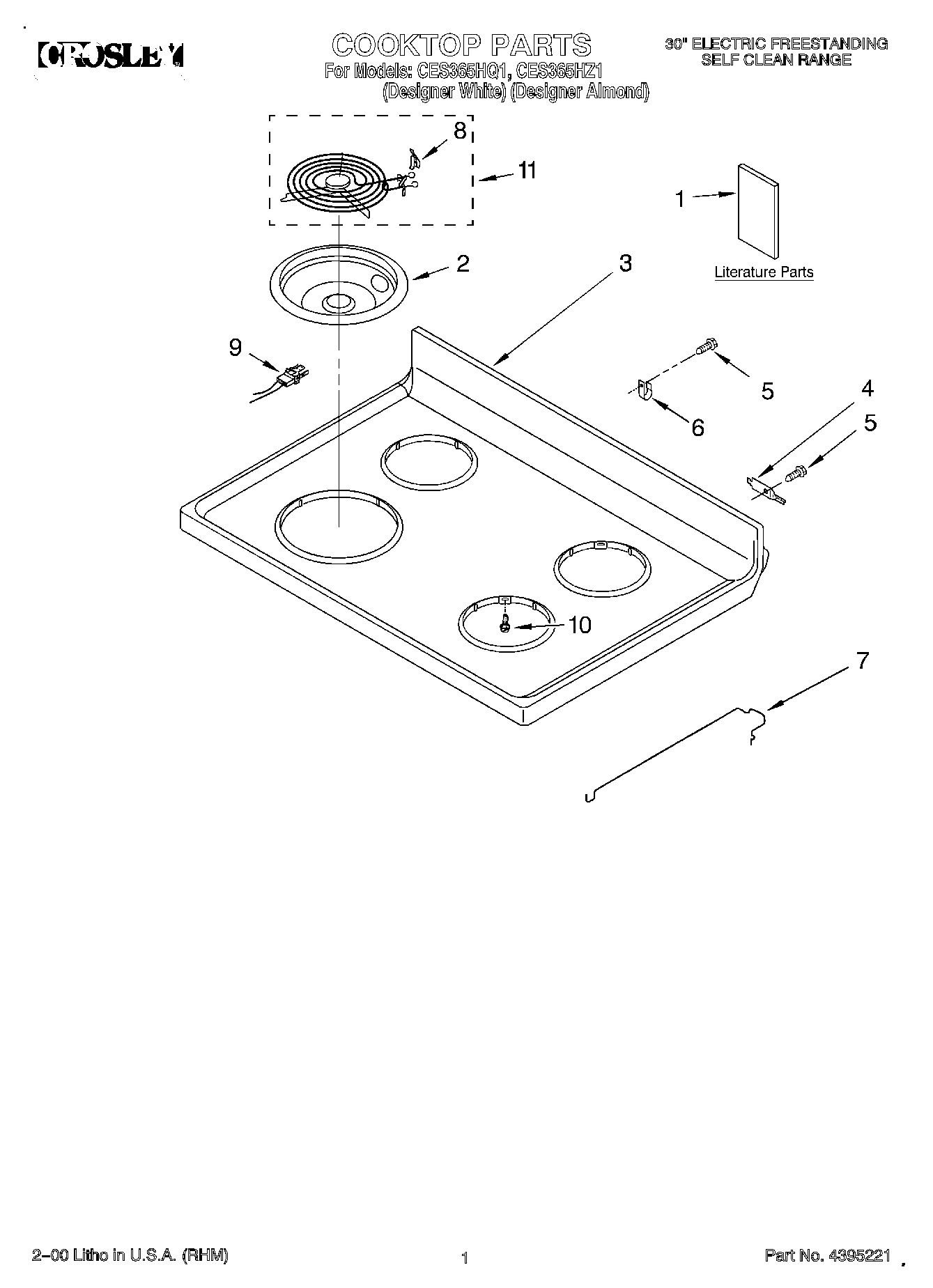

CES365HZ1 01 – COOKTOP, LITERATURE

CES365HZ1 01 – COOKTOP, LITERATURE

Written by

in

CES365HZ1 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Guide, Use & Care
1Literature (Instruction, Installation)
1Literature (Installation, Instructions (Template))
2WPW10290350 Whirlpool Stove Drip Bowl
2WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
3Cooktop (Almond)
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WPW10259865 Whirlpool Range 8" Surface Element
11WP660532 Whirlpool Oven Surface Element
