CES365HZ1 05 – DOOR, OPTIONAL

CES365HZ1 05 – DOOR, OPTIONAL

Written by

in

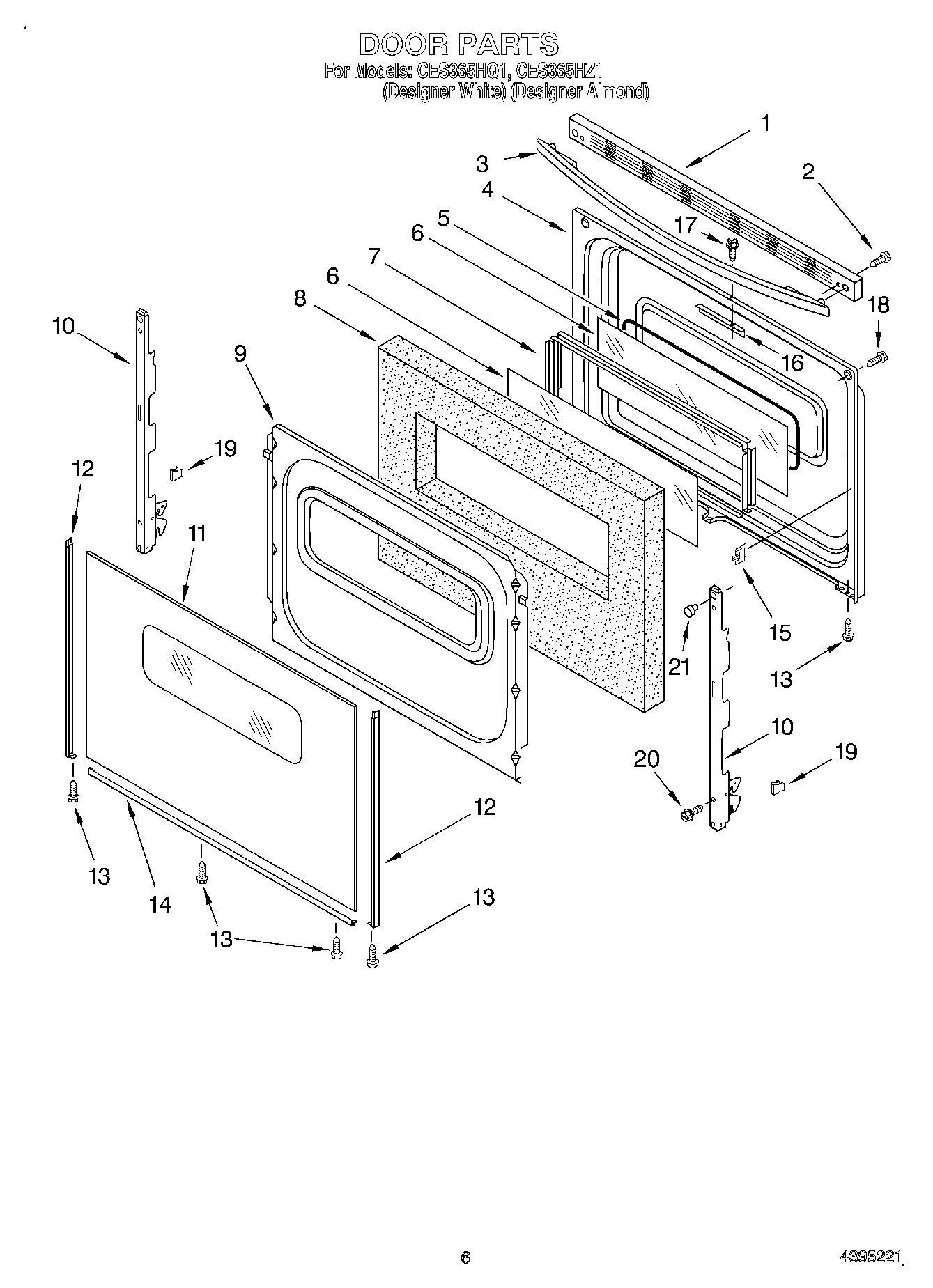

CES365HZ1 05 – DOOR, OPTIONAL

Products

PositionProduct
1Trim, Door Top (Almond)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Almond)
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8WPW10278991 Whirlpool Insulation
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Outer Door (Almond)
11WP9762476 Whirlpool Door Glass
13W10491985 Whirlpool Screw
148184860 Whirlpool Oven Door Trim
148184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15Clip, Glass (4)
16Bracket, Latch
17WP3400832 Whirlpool Screw
18WP179051 Whirlpool Screw
19WP3196925 Whirlpool Clip Assembly
20WP3196175 Whirlpool Screw
218212471 Whirlpool Oven Paint
213184020 Whirlpool Oven Wire
213196696 Whirlpool Clip
21Grease
218273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21WP3196154 Whirlpool Screw Assembly
21WPL 8273273
21W11396691 Whirlpool Element Receptacle and Wire Kit
21WPL 8273266
21350942 Whirlpool Spray Paint
21WPL 8273335
211
21Wire (14 Ga. 200 c Brown)
21Wire, 25` Roll (Red 14 Ga.)
21Wire, 25` Roll (Black 14 Ga.)
21FOIL, ALUMINUM OVEN (18“ X 25 )
21WPW10208653 Whirlpool Insulation
21238614 Whirlpool Bumper Hinge
21WPL 799832
21511873 Whirlpool Refrigerator Paint
21Almond (Uncut)
21WP72107 Whirlpool Touchup
21799344 Whirlpool Refrigerator Paint
2172017 Whirlpool Appliance Touch-Up Paint White
21350956 Whirlpool Spray Assembly
21Wire, 25“ Roll (White 14 GA.)
21285006 Whirlpool Spray
2118 Ga. 80~c Rating (Red)
21Wire (12 Ga. 150 c Black)
21Wire (14 Ga. 150 c Yellow)
21Wire (14 Ga. 150 c Orange)
21Wire (14 Ga. 150 c Green)
21Wire (14 Ga. 150 c Brown)
21Wire (14 Ga. 150 c Blue)
21242831 Whirlpool Oven Wire
21Clip, Ground Wire
213400964 Whirlpool Oven Clip
21814381 Whirlpool Pin
21W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21350930 Whirlpool White Spray Paint
