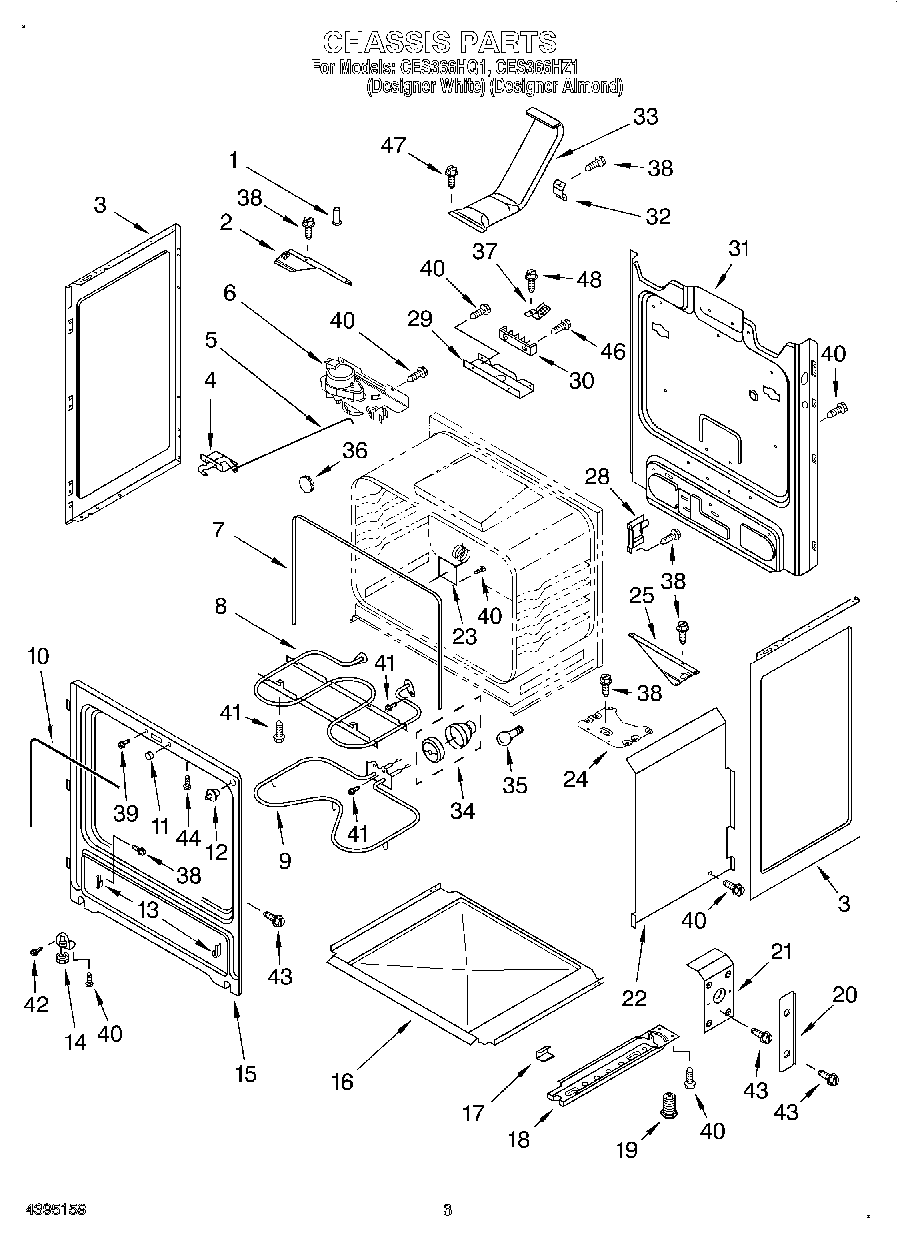

CES366HQ1 03 – CHASSIS

Products

Position	Product
1	Tube, Oven Vent
2	Support, Corner LR
3	WPW10575396 Whirlpool Side Panel
3	Panel, Side (2) (Almond-Textured)
4	WP9761013 Whirlpool Door Latch
5	Rod, Latch
6	WPW10107830 Whirlpool Stove Door Lock Latch Assembly
7	Seal, Oven Flange
8	W10856603 Whirlpool Broil Element
9	WPW10308477 Whirlpool Bake Element
10	W11542153 Whirlpool Door Gasket
11	W10877054 Whirlpool Spacer Assembly
12	WP3195993 Whirlpool Light Switch
13	WP3195546 Whirlpool Drawer Glide
14	WP3196037 Whirlpool Leveling Foot
15	Frame, Front
16	WP8054068 Whirlpool Retainer
17	Clip, Panel (6)
18	WPW10306546 Whirlpool Base Rail
19	WPW10058460 Whirlpool Appliance Levelling Leg
20	Shield, Outer (2)
21	Shield, Inner (2)
22	Retainer, Side (2)
23	Sensor
24	Support, Front (2)
25	Support, Corner RR
28	W10404688 Whirlpool Bracket Support
29	W11728255 Whirlpool Service Bracket
30	WP8203546 Whirlpool Terminal Block
30	WP112432 Whirlpool Nut Assembly
31	Back, Main
32	Bracket, Flue
33	WPW10134285 Whirlpool Vent Tube
34	W11594027 Whirlpool Range Oven Light Socket
35	RANGE ONLY 40W 120V APPL BULB
36	Button, Plug
37	Ground Strap
38	WP3196175 Whirlpool Screw
39	WP3400832 Whirlpool Screw
41	WP3196174 Whirlpool Screw
42	Screw
43	WP7101P246-60 Whirlpool Screw
44	SCREW
46	WP3400016 Whirlpool Screw Assembly
47	WP489491 Whirlpool Refrigerator Screw
48	WP8272612 Whirlpool Insulation
48	WPW10208653 Whirlpool Insulation
48	8053915 Whirlpool Oven Insulation
48	W11244557 Whirlpool Screw
