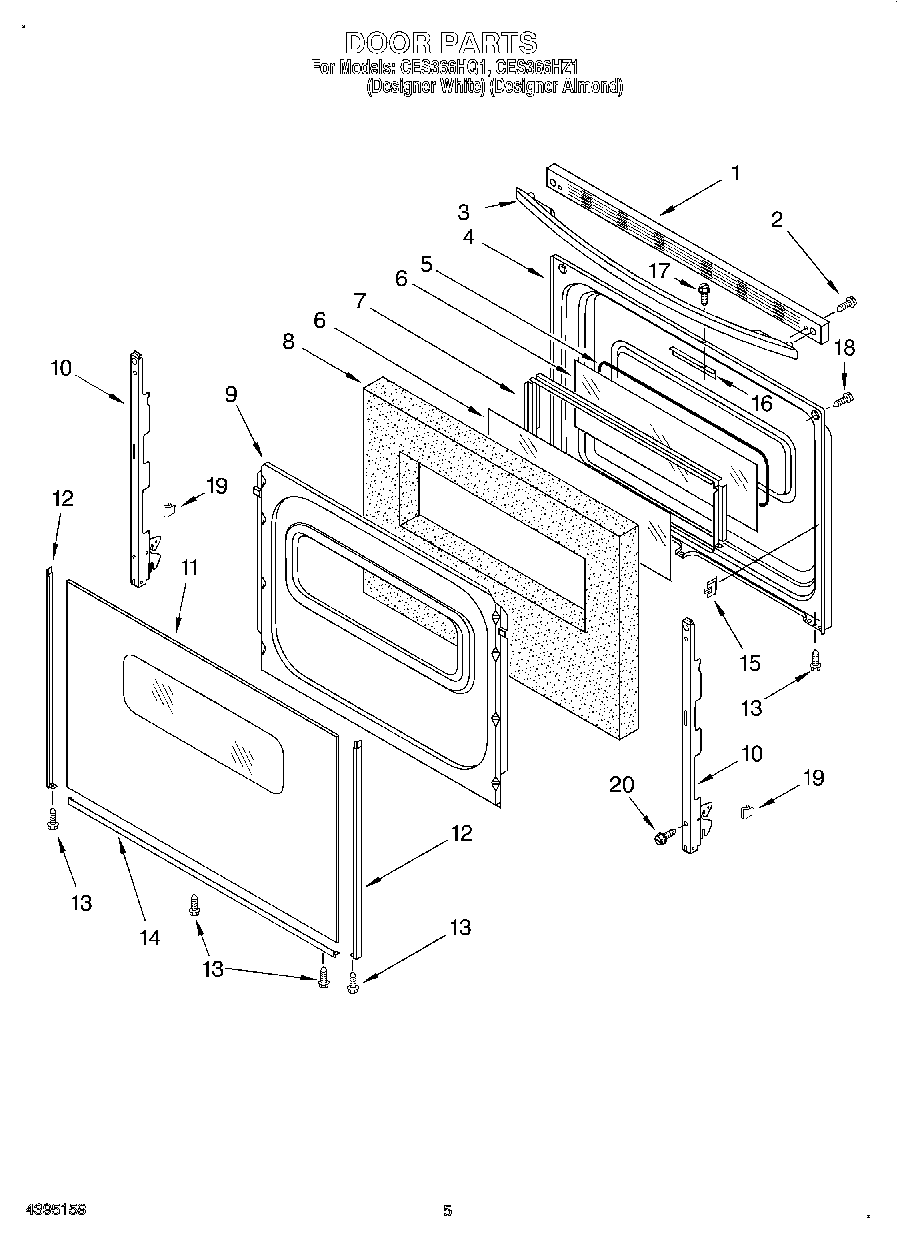

CES366HZ1 04 – DOOR

Products

Position	Product
1	Trim, Door Top (Almond)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	Insulation, Door
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762476 Whirlpool Door Glass
11	Glass, Outer Door (Almond)
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184860 Whirlpool Oven Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
