CES3759BCS 01 – BODY

CES3759BCS 01 – BODY

Written by

in

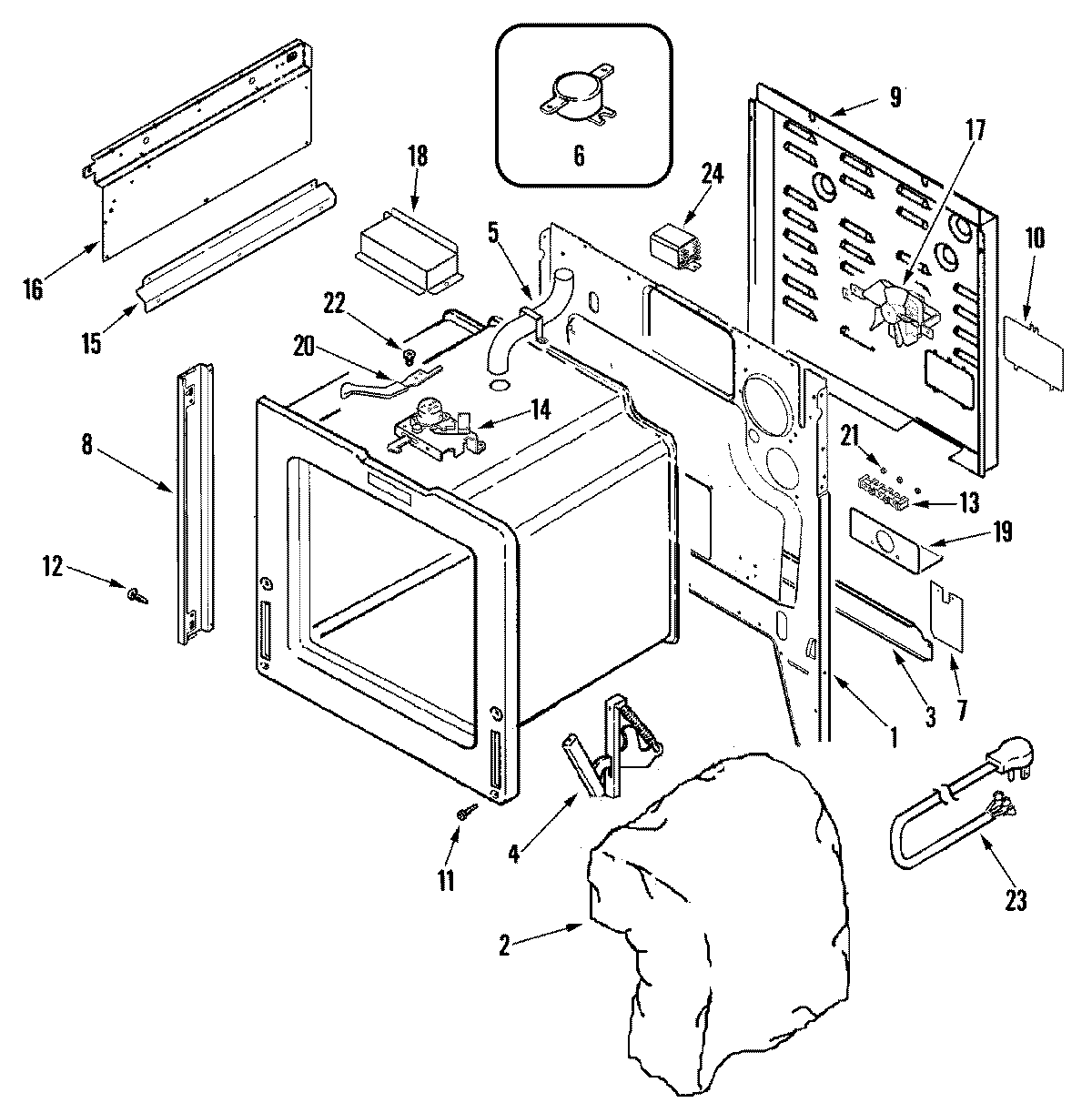

CES3759BCS 01 – BODY

Products

PositionProduct
1MAY 74010949
2MAY 74010813
3EXTENSION, MAIN BACK
474011142 Whirlpool Stove Range Oven Door Hinge and Spring
5MAY 74010817
5TUBE, VENT
6MAY 74010818
7INSULATOR, POWER CORD
8WP3608F138-70 Whirlpool Side Trim
94005F810-51 Whirlpool Access Cover
10COVER, TERMINAL BLOCK
11WP4159193 Whirlpool Screw
12WP74003976 Whirlpool Screw
13WPW10245259 Whirlpool Terminal Block
14LATCH ASY
15EXTENSION, HEAT SHEILD
162618F206-51 Whirlpool Panel
16PANEL, SHIELD (LT)
17WPW10586440 Whirlpool Blower Fan
18COVER, DOOR LATCH
19W10190166 Whirlpool Service Bracket
20LEVER, LATCH (BLK)
21WP7103P027-60 Whirlpool Nut
2274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
23MAY 74006398
24RELAY, AUXILIARY (DPDT)
