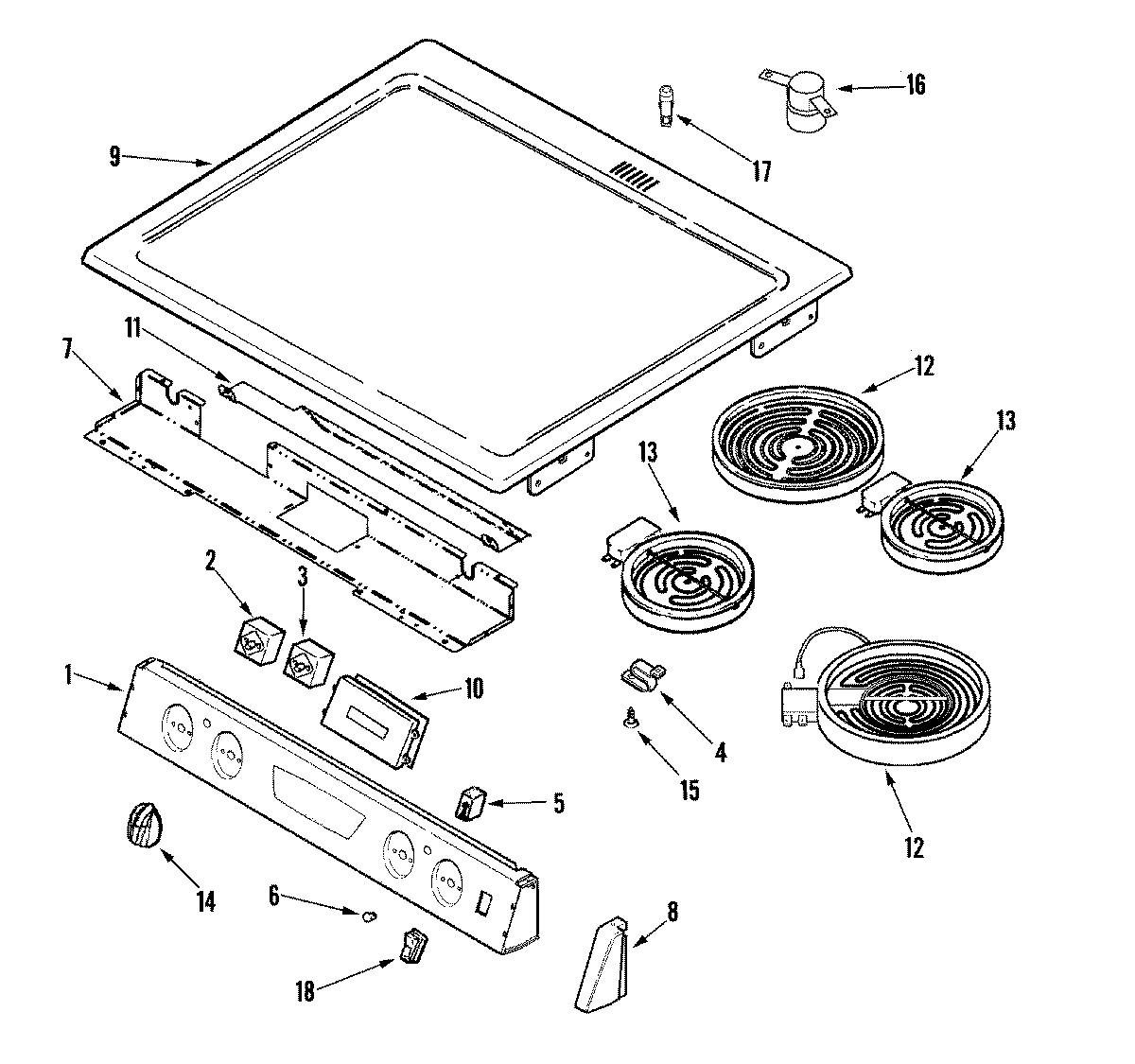

CES3759BCS 02 – CONTROL PANEL/TOP ASY

CES3759BCS 02 – CONTROL PANEL/TOP ASY

Written by

in

CES3759BCS 02 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74011776
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
3SCREW
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (BLK-LT)
8CAP, END (BLK-RT)
9MAY 5706M550-09
9MAY 74010657
10MAY 74011754
11SHIELD, CONTROL
12W10823696 Whirlpool Radiant Surface Element
13W10823711 Whirlpool Surface Element Left Front and Right Rear
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
17MAY Y706125
18SWITCH, ROCKER (BLK)
