CES3759BCW 02 – CONTROL PANEL/TOP ASY

CES3759BCW 02 – CONTROL PANEL/TOP ASY

Written by

in

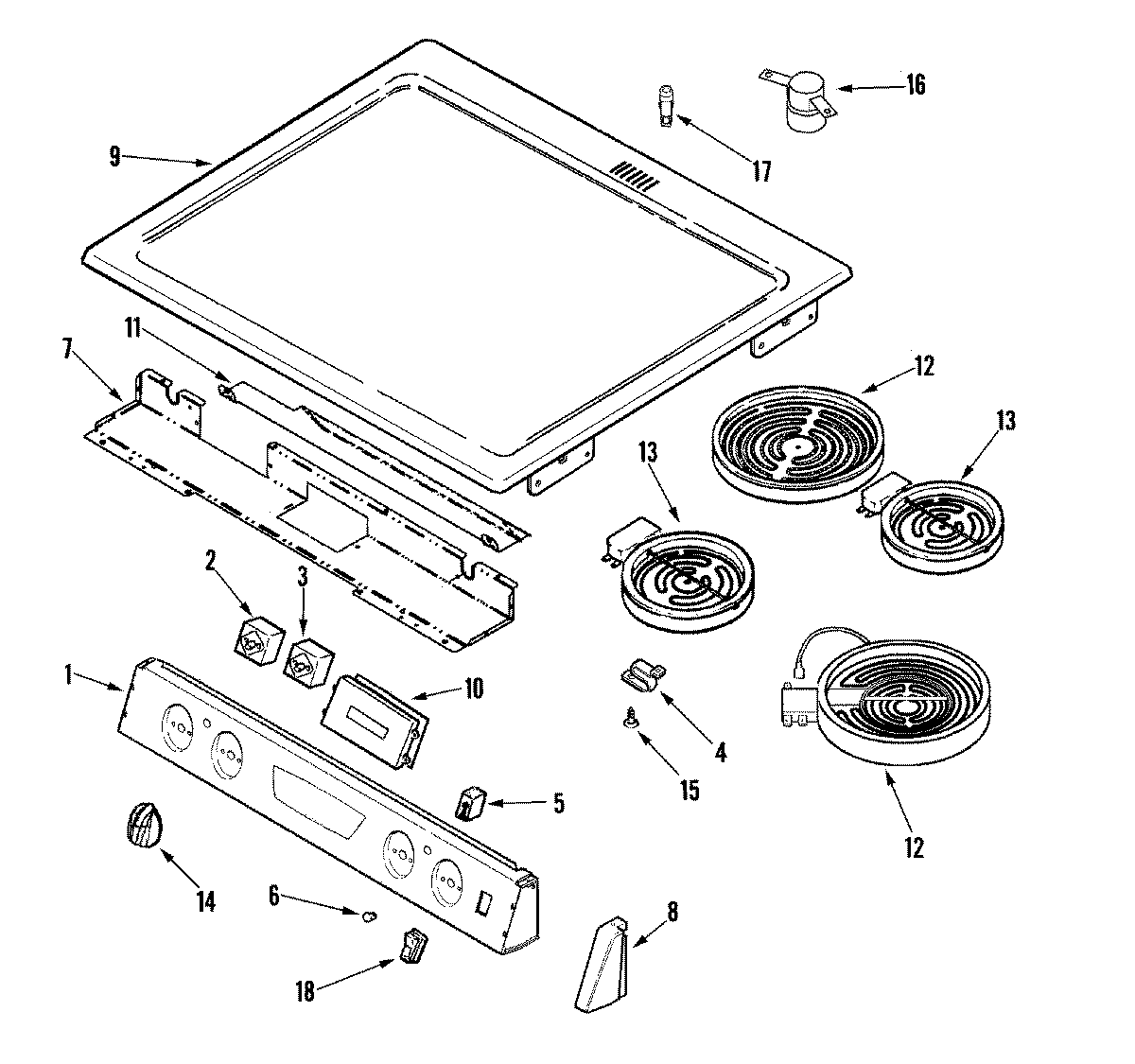

CES3759BCW 02 – CONTROL PANEL/TOP ASY

Products

PositionProduct
1MAY 74011774
2WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3WP7403P239-60 Whirlpool Oven Switch
3SCREW
4MAY 74007845
5WP74004153 Whirlpool Indicator Light
6WP7730P011-60 Whirlpool Indicator Lens
7SUPPORT, MANIFOLD PANEL
8CAP, END (WHT-LT)
8CAP, END (WHT-RT)
9MAY 74010655
9MAY 5706M550-81
10MAY 74011753
11SHIELD, CONTROL
12W10823696 Whirlpool Radiant Surface Element
13W10823711 Whirlpool Surface Element Left Front and Right Rear
14W11197495 Whirlpool Knob
15SCREW (6ABX.25-ZN)
16TUBE, VENT (UPR)
17MAY Y706125
1874008717 Whirlpool White Rocker Switch
