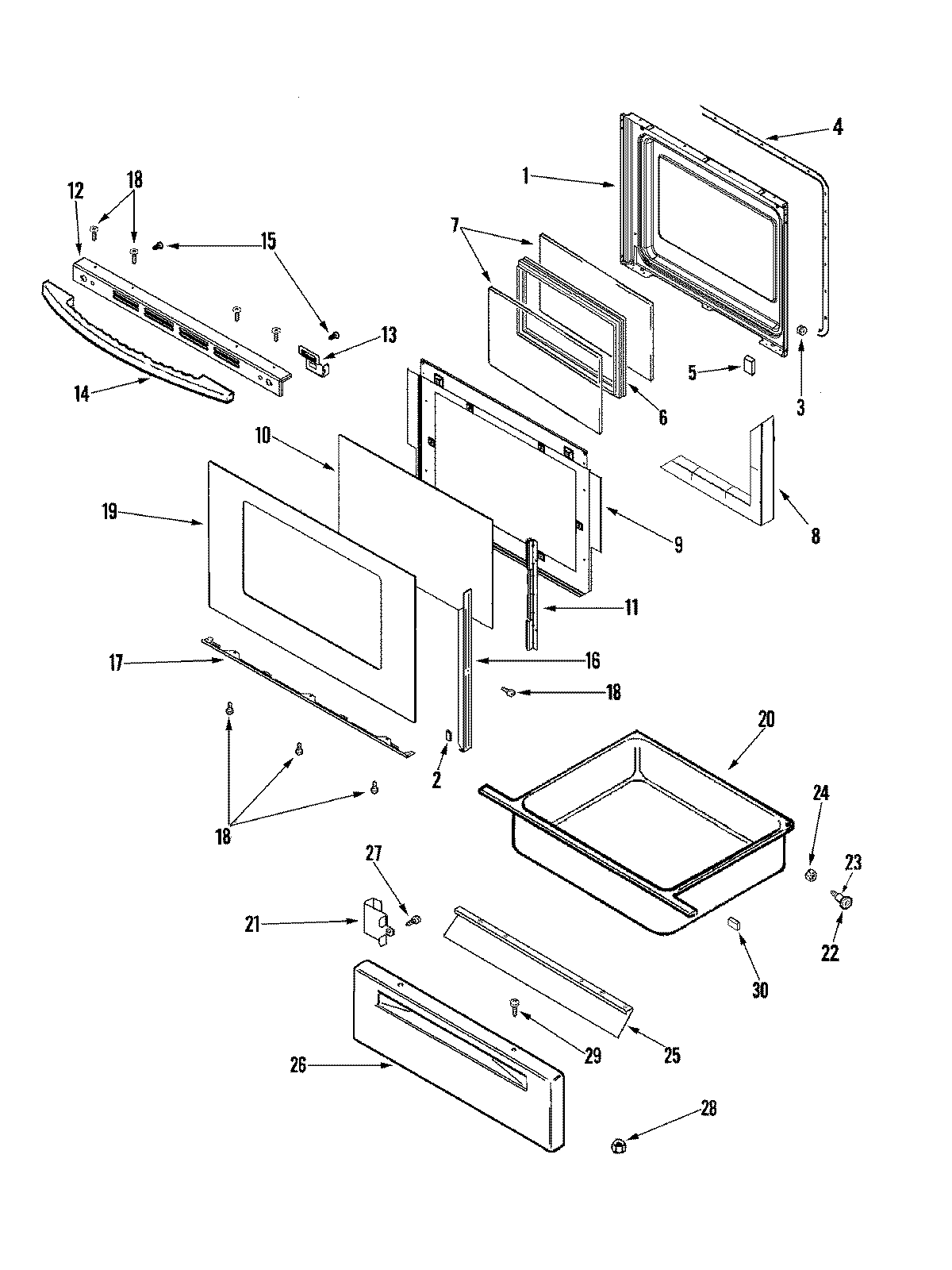

CES3759BCW 03 – DOOR/DRAWER

Products

PositionProduct
1LINING, DOOR
1MAY 74003642
2WP74004224 Whirlpool Tape
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
63801F886-51 Whirlpool Mounting Bracket
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9MAY 74009502
93601F373-51 Whirlpool Baffle
10MAY 74004857
11MAY 74003650
12MAY 74010238
133801F831-45 Whirlpool Bracket Assembly
133801F832-45 Whirlpool Bracket
14MAY 74010337
15WP74006515 Whirlpool Washer Screw
16MAY 12002358
17WP3807F708-71 Whirlpool Support
19MAY 12002396
20DRAWER, STORAGE
21MAY 74010896
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25LINING, DRAWER PANEL
26PANEL, DRAWER (WHT)
27SCREW
2874005230 Whirlpool Oven Lock Nut (8-32)
29WP98008544 Whirlpool Screw Assembly
30WP74005546 Whirlpool RU Spacer
