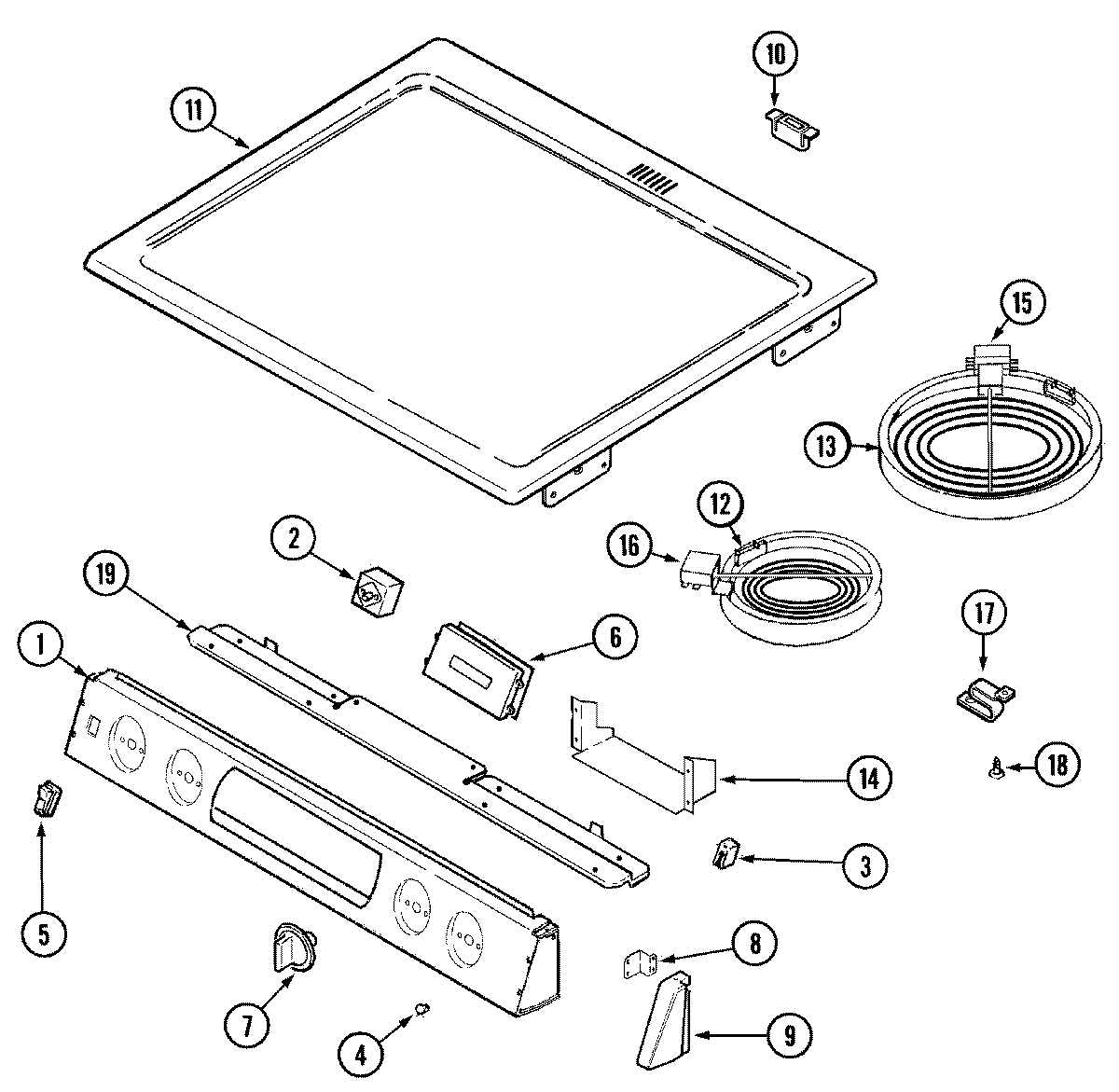

CES3760AAA 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74005101
NI	MAY 74004247
NI	MAY 74004250
NI	MAY 12001323
NI	MAY 16010161
1	MAY 74004241
2	WP7403P239-60 Whirlpool Oven Switch
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008765 Whirlpool Range Oven Rocker Switch Bisque
6	MAY 74004255
7	MAY 74003447
8	MAY 74004186
8	SCREW
9	MAY 74004823
9	MAY 74004606
9	MAY 74004605
9	MAY 74004200
9	MAY 74004201
9	WP74009541 Whirlpool Screw Assembly
9	MAY 74004824
10	MAY 74003053
11	MAY 74004245
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13	W10823707 Whirlpool Range Radiant Surface Element 8"
13	MAY 74008569
14	MAY 74004246
15	MAY 74002652
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
