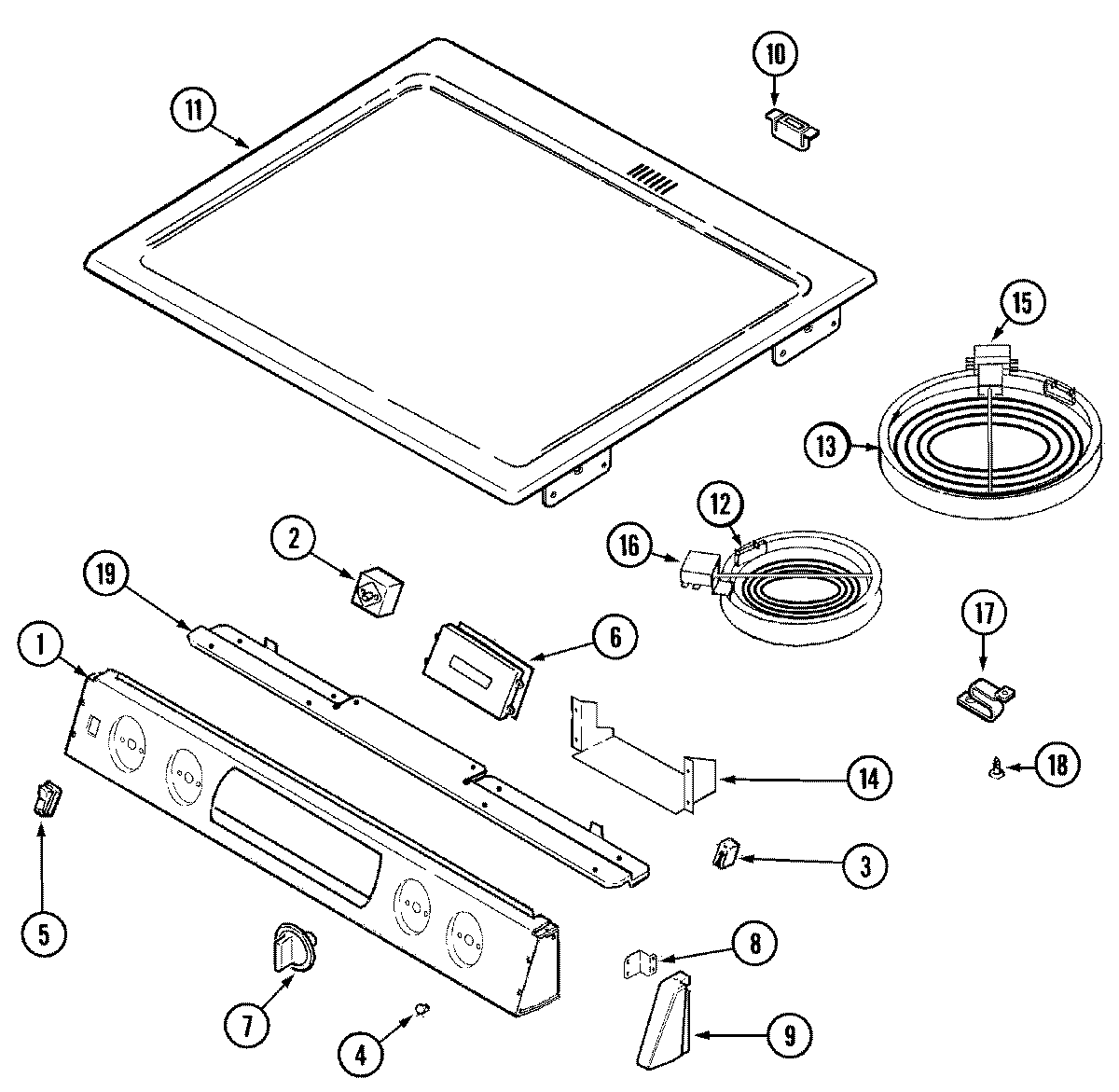

CES3760AAW 04 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 74009284
NI	MAY 74004786
NI	MAY 74005101
NI	MAY 12001323
NI	MAY 16010161
NI	MAY 74004250
NI	WP74003482 Whirlpool Auxiliary Relay
NI	MAY 74004247
1	MAY 74004240
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	SCREW
2	WP7403P239-60 Whirlpool Oven Switch
3	WP74004153 Whirlpool Indicator Light
4	WP7730P011-60 Whirlpool Indicator Lens
5	74008717 Whirlpool White Rocker Switch
6	MAY 74004102
6	MAY 74004253
6	MAY 74009305
7	WP74003373 Whirlpool Knob Switch
8	MAY 74005671
8	MAY 74004186
8	SCREW
9	MAY 74004603
9	MAY 74004198
9	MAY 74004199
9	MAY 74004604
9	CAP, END (WHT-LT)
9	CAP, END (WHT-RT)
9	WP98008544 Whirlpool Screw Assembly
10	MAY 74003053
10	MAY 74006388
11	MAY 74004244
12	W10823711 Whirlpool Surface Element Left Front and Right Rear
12	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
13	W10823707 Whirlpool Range Radiant Surface Element 8"
13	W10823697 Whirlpool Surface Element
13	MAY 74008569
14	MAY 74004246
15	MAY 74002652
16	MAY 74004494
17	8004P093-60 Whirlpool Support C
18	SCREW (6ABX.25-ZN)
19	MAY 74004185
19	SCREW (8BX3/8-NI)
